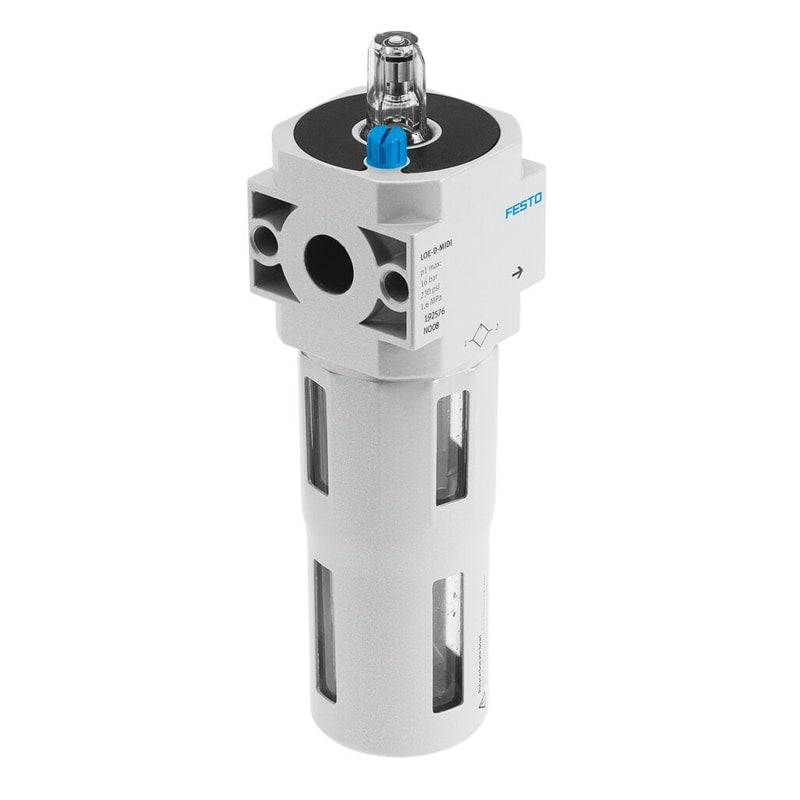

Basic valve
LOE-D-MIDI-U
546427
GTIN 4052568352929
Vendor Festo
- Normal nominal flow rate (normalized to DIN 1343)
- 24470.34 l/min
- Operating pressure
- 0 bar - 16 bar
- Minimum flow rate for lubricator function
- 35.593 l/min
Regular price
$142.12
Unit price
Basic valve LOE-D-MIDI-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LOE-D-MIDI-U
Regular price
$142.12
Unit price
Basic valve LOE-D-MIDI-U is backordered and will ship as soon as it is back in stock.
lubricator LOE-D-MIDI-U Without threaded connection plates with FRB threaded pin, with metal bowl guard. Size=Midi, Series=D, Assembly position=Vertical +/- 5°, Design structure=proportional standard mist lubricator, Max. oil capacity=3,72 oz(l)
| Size | Midi |
|---|---|
| Series | D |
| Assembly position | Vertical +/- 5° |
| Design structure | proportional standard mist lubricator |
| Max. oil capacity | 3.72 oz(l) |
| Bowl guard | Metal bowl guard |
| Operating pressure | 0 ... 240 Psi |
| Minimum flow rate for lubricator function | 0.28 cfm |
| Standard nominal flow rate | 192.5 cfm |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | 14 ... 140 °F |
