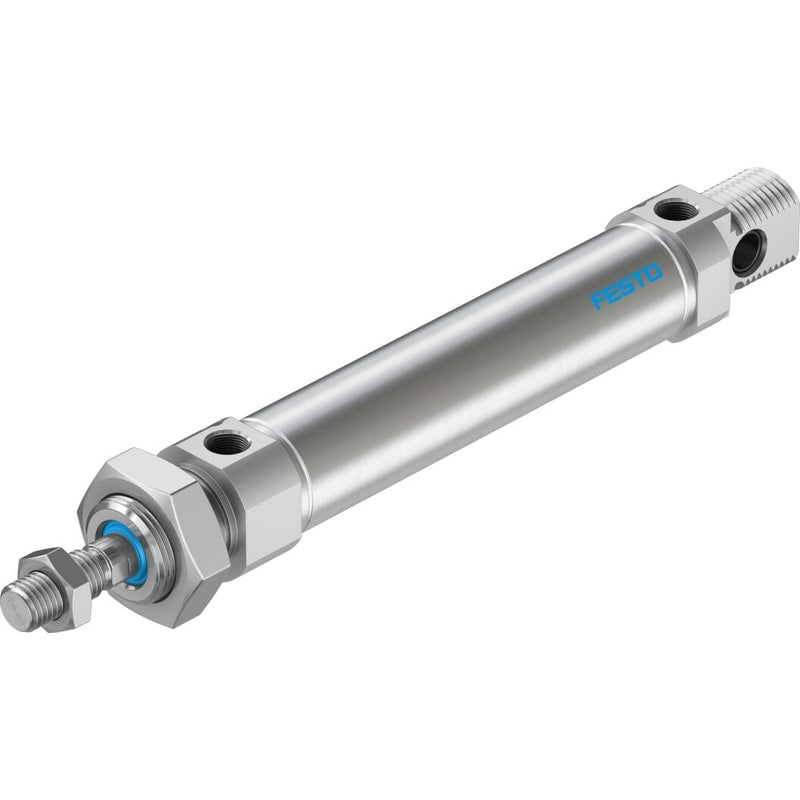

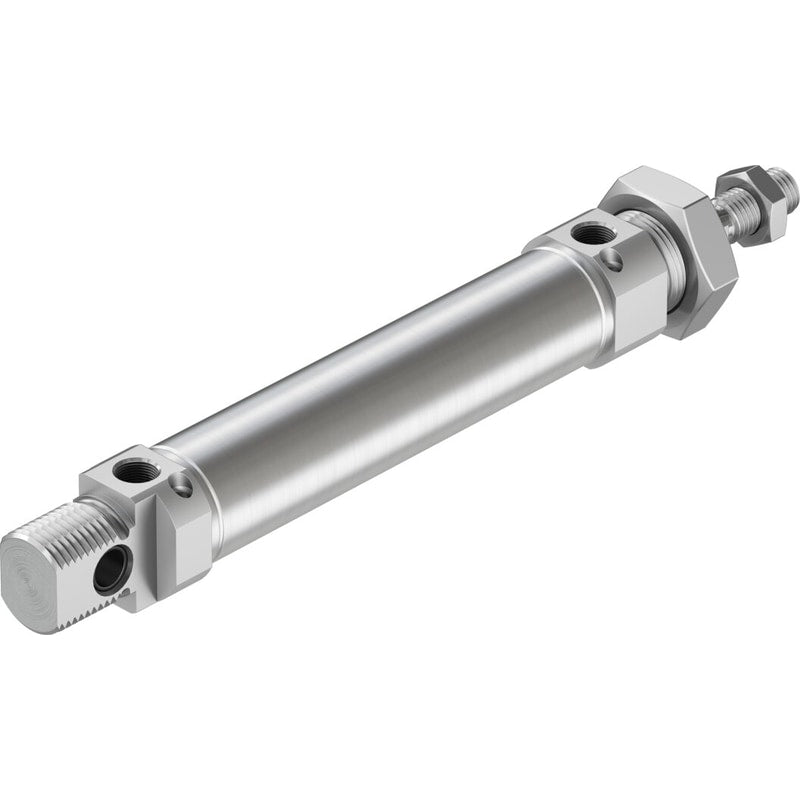

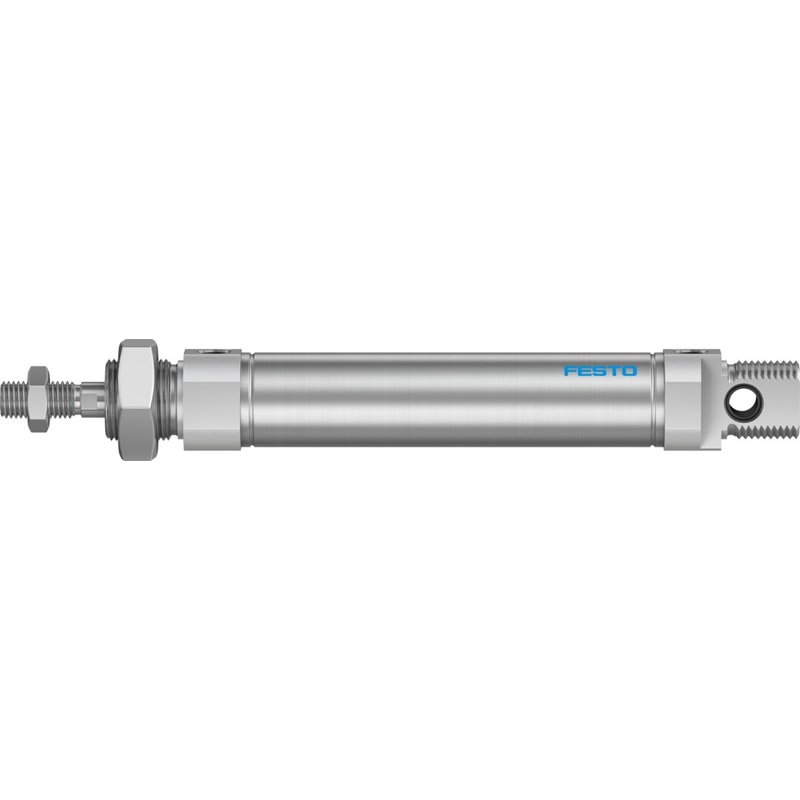

Round cylinder
DSNU-1"-3"-PPV-A
546421
GTIN 4052568352875
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 1"
- Theoretical force at 6 bar, advancing
- 294.472 N
- Stroke
- 76.2 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends
Regular price
$136.04
Unit price
DSNU-1"-3"-PPV-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSNU-1"-3"-PPV-A
Regular price
$136.04
Unit price
DSNU-1"-3"-PPV-A is backordered and will ship as soon as it is back in stock.
round cylinder DSNU-1"-3"-PPV-A Based on DIN ISO 6432, for proximity sensing. Various mounting options, with or without additional mounting components. With adjustable end-position cushioning. Stroke=3 ", Piston diameter=1", Piston rod thread=UNF3/8-24, Based on the standard=ISO 6432, Cushioning=PPV: Pneumatic cushioning adjustable at both ends
| Stroke | 3 " |
|---|---|
| Piston diameter | 1" |
| Piston rod thread | UNF3/8-24 |
| Based on the standard | ISO 6432 |
| Cushioning | PPV: Pneumatic cushioning adjustable at both ends |
| Assembly position | Any |
| Piston-rod end | Male thread |
| Design structure | PistonPiston rod |
| Position detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Operating pressure | 1 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
