Electrical interface

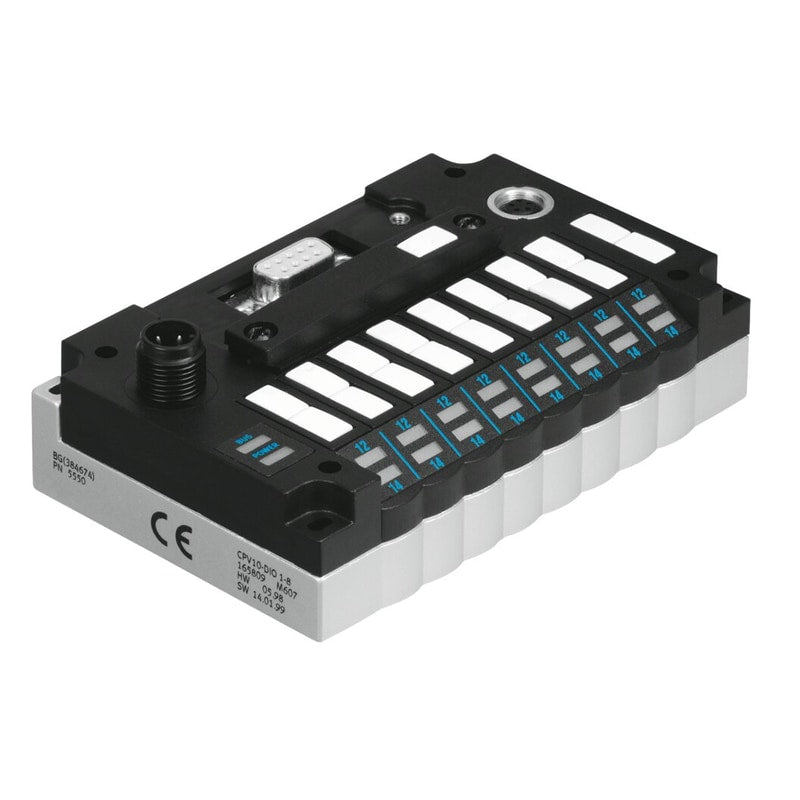

CPV10-GE-DI02-8
546188
GTIN 4052568184568
Vendor Festo
Regular price
$768.40
Unit price
CPV10-GE-DI02-8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPV10-GE-DI02-8
Regular price
$768.40
Unit price
CPV10-GE-DI02-8 is backordered and will ship as soon as it is back in stock.
electrical interface CPV10-GE-DI02-8 CP string extension=(* Yes, * 32 inputs, * 32 outputs), Fieldbus interface=(* Optional, * - Socket and plug, M12x1, 5-pin, B coded, * - Sub-D, 9-pin, socket), Device-specific diagnostics=(* via device-relating diagnosis (DPV0) , * Missing module on CP string extension, * Short-circuit / overload, outputs, * Undervoltage, outputs, * Undervoltage, sensor supply power, * Undervoltage, valves), Communication types=Cyclical communication, Configuration support=DDB file and bitmaps
| CP string extension | Yes32 inputs32 outputs |
|---|---|
| Fieldbus interface | Optional- Socket and plug, M12x1, 5-pin, B coded- Sub-D, 9-pin, socket |
| Device-specific diagnostics | via device-relating diagnosis (DPV0) Missing module on CP string extensionShort-circuit / overload, outputsUndervoltage, outputsUndervoltage, sensor supply powerUndervoltage, valves |
| Communication types | Cyclical communication |
| Configuration support | DDB file and bitmaps |
| Maximum number of solenoid coils with string extension | 48 |
| Max. number of solenoid coils | 16 |
| Polarity protected | for all electrical connections |
| Baud rate | 9,6 kBaud ... 12 MbaudAutomatic detection |
| Operating voltage range DC | 20.4 ... 26.4 V |
| Maximum number of outputs | 16 solenoid coils and 32 outputs48 valve coils |
| Maximum number of inputs | 32 |
| Nominal operating voltage DC | 24 V |
