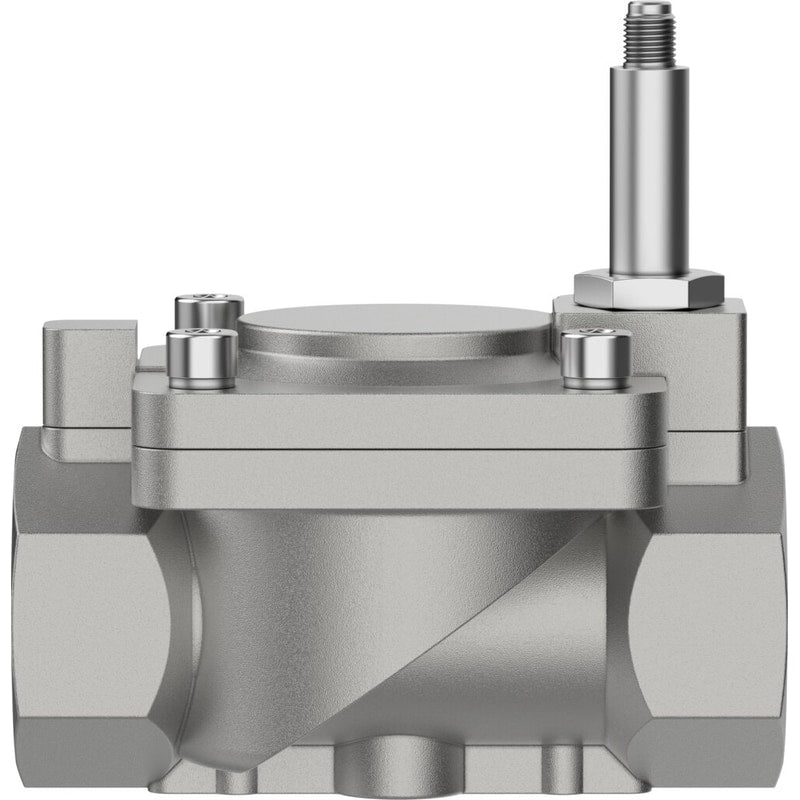

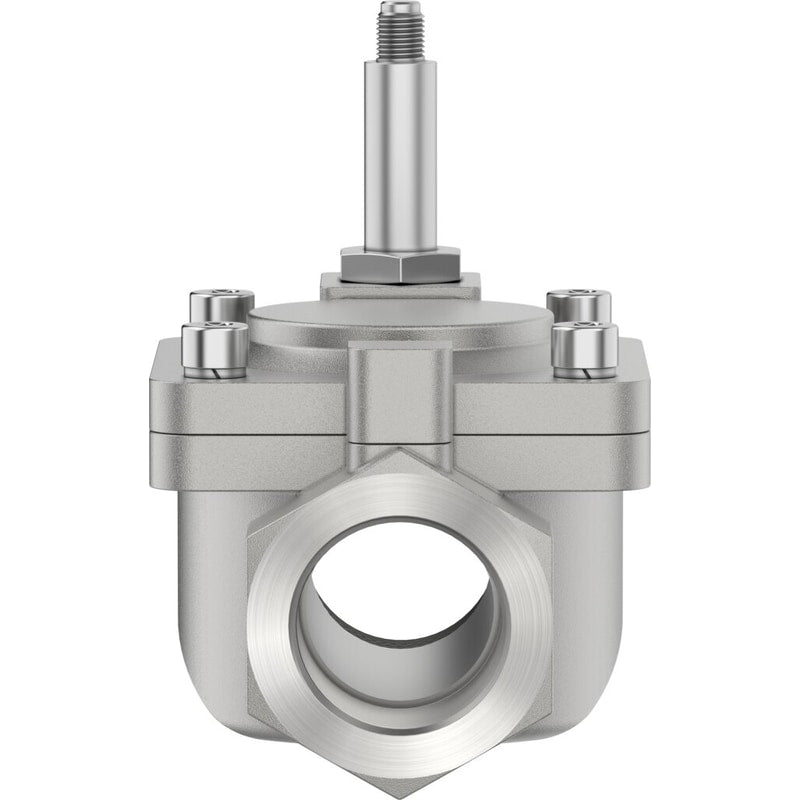

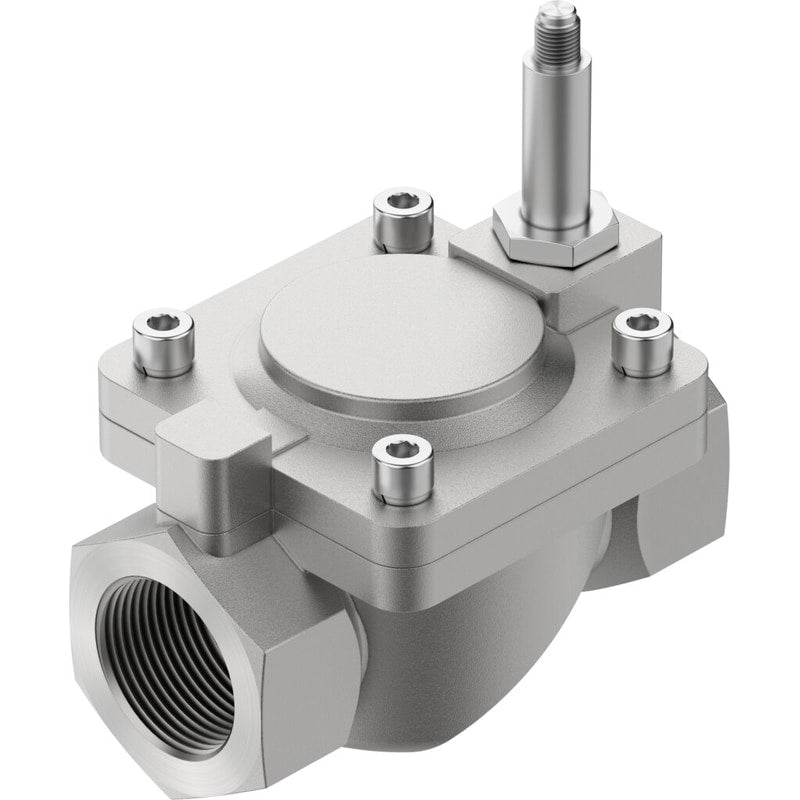

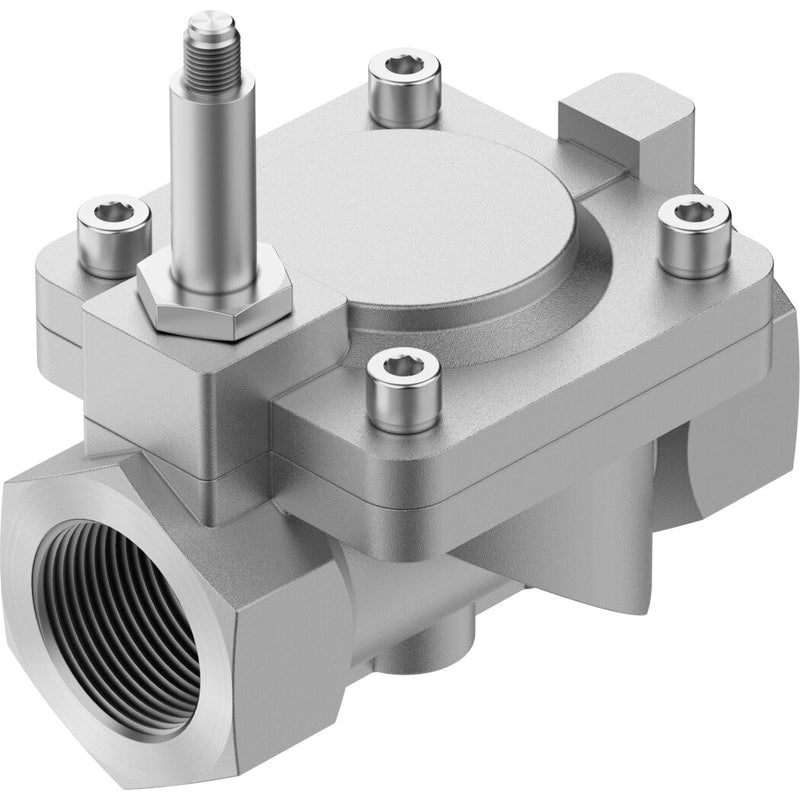

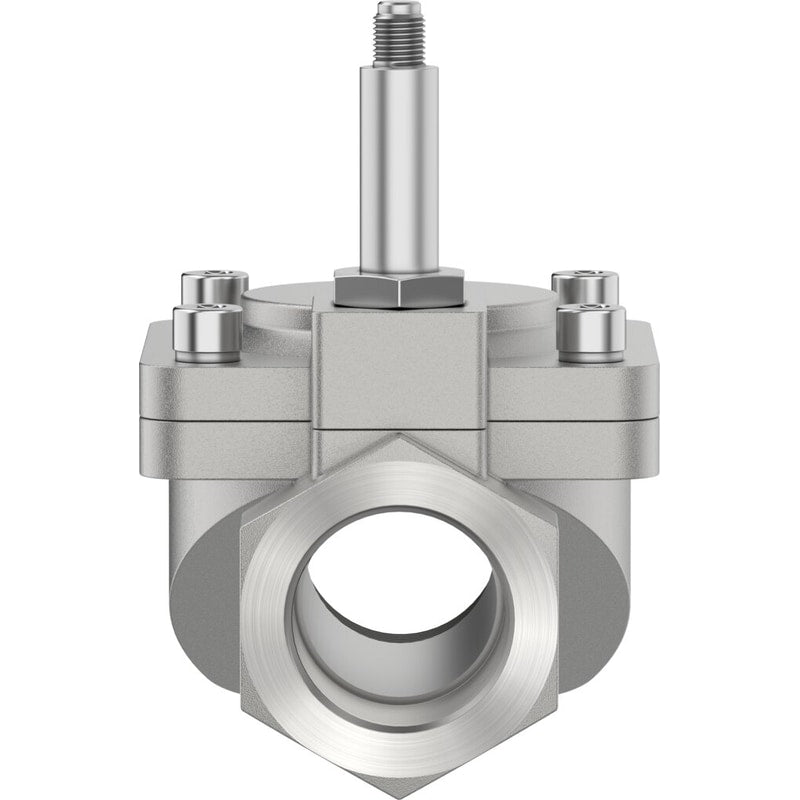

Air solenoid valve
VZWM-L-M22C-G114-F5-R1
546167
GTIN 4052568184537
Vendor Festo
- Structural design
- servo-controlled
- Valve function
- 2/2, closed, monostable
- Fitting connection
- G1 1/4
- Normal nominal flow rate (normalized to DIN 1343)
- 24000 l/min
Regular price
$1,295.18
Unit price
VZWM-L-M22C-G114-F5-R1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZWM-L-M22C-G114-F5-R1
Regular price
$1,295.18
Unit price
VZWM-L-M22C-G114-F5-R1 is backordered and will ship as soon as it is back in stock.
The poppet valve with with diaphragm seal for control of air or water is suitable for all-purpose use with either medium.
| Type code | VZWM |
|---|---|
| Design | Poppet valve with diaphragm seal |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Preferably upright |
| Type of mounting | Line installation |
| Fitting connection | G2 |
| Electrical connection | Solenoid coil type MH-... , coil can be ordered as an accessory |
| Nominal width | 50 mm |
| Valve function | 2/2, closed, monostable |
| Flow direction | Non-reversible |
| Medium | WaterInert gasNeutral liquidsCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Medium pressure of liquid media | 0.7 bar ... 6 bar |
| Medium pressure of gaseous media | 0.7 bar ... 10 bar |
| Differential pressure | 0.7 bar |
| Type of control | Pilot-controlled |

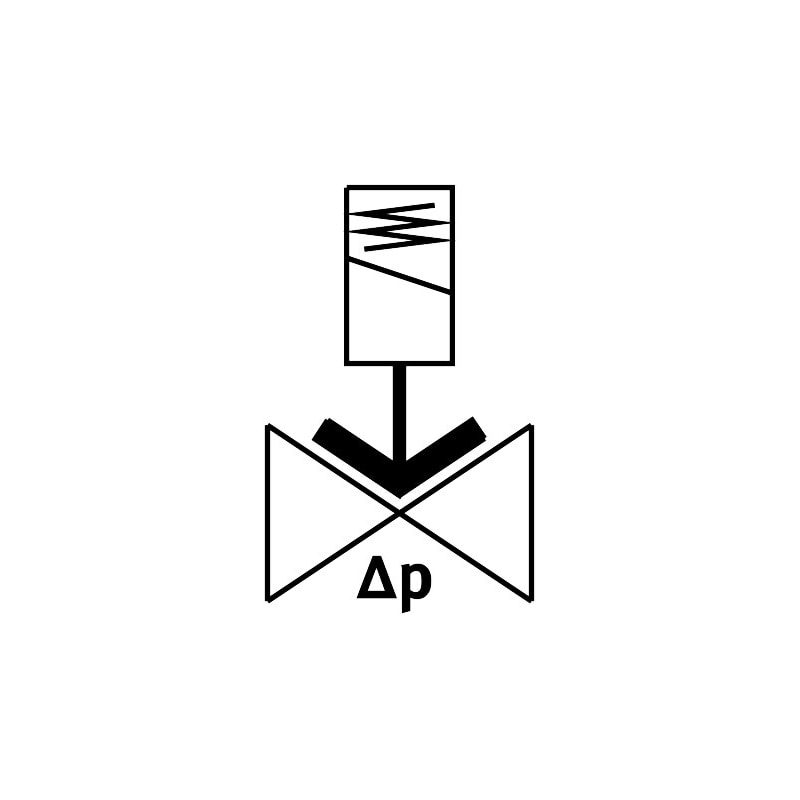

| Symbol | 00995681 |
| Max. viscosity | 22 mm²/s |
| Temperature of medium | -10 °C ... 60 °C |
| Temperature of liquid media | 5 °C ... 50 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Flow rate Kv | 39 m³/h |
| Standard nominal flow rate | 31000 l/min |
| On switching time | 62 ms |
| Response time "on" for liquid media | 2100 ms |
| Switching time off | 21 ms |
| Response time "off" for liquid media | 2800 ms |
| b-value | 0.68 |
| C value | 110 l/sbar |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | Brass |
| Material number of housing | 2.0402 |
| Seals material | NBR |
