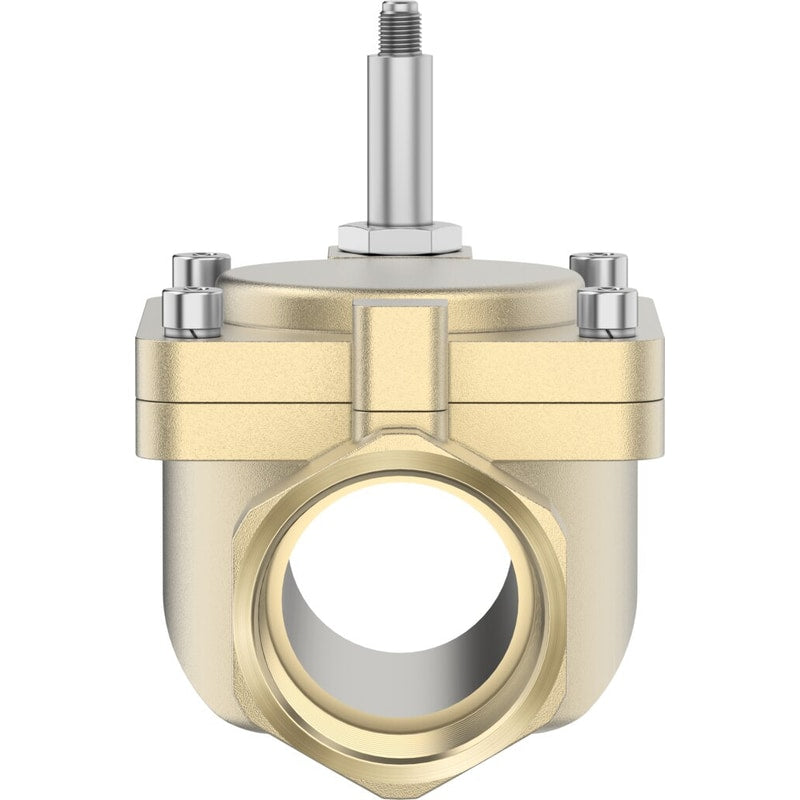

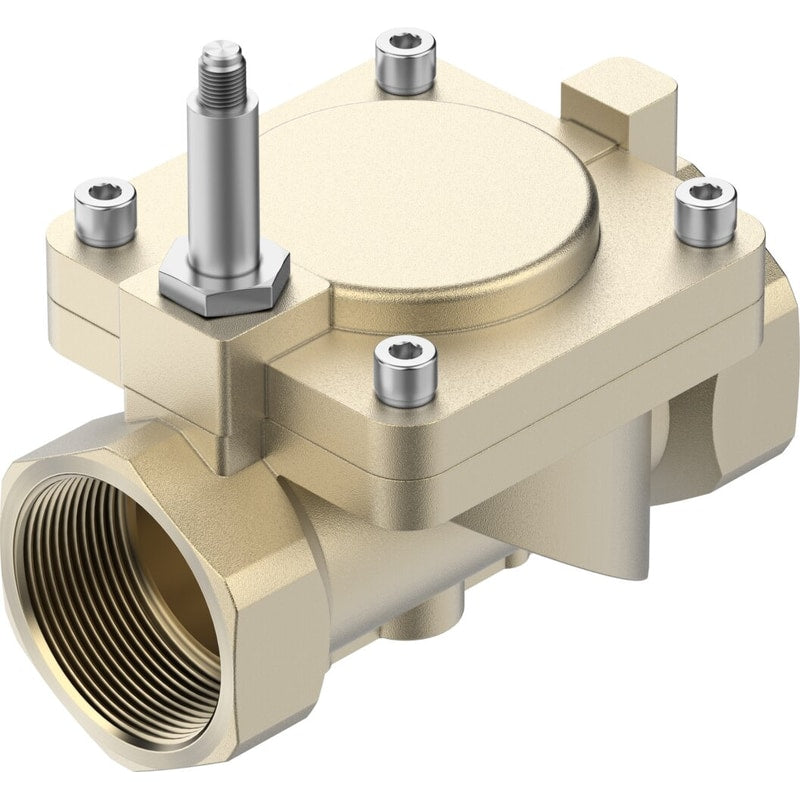

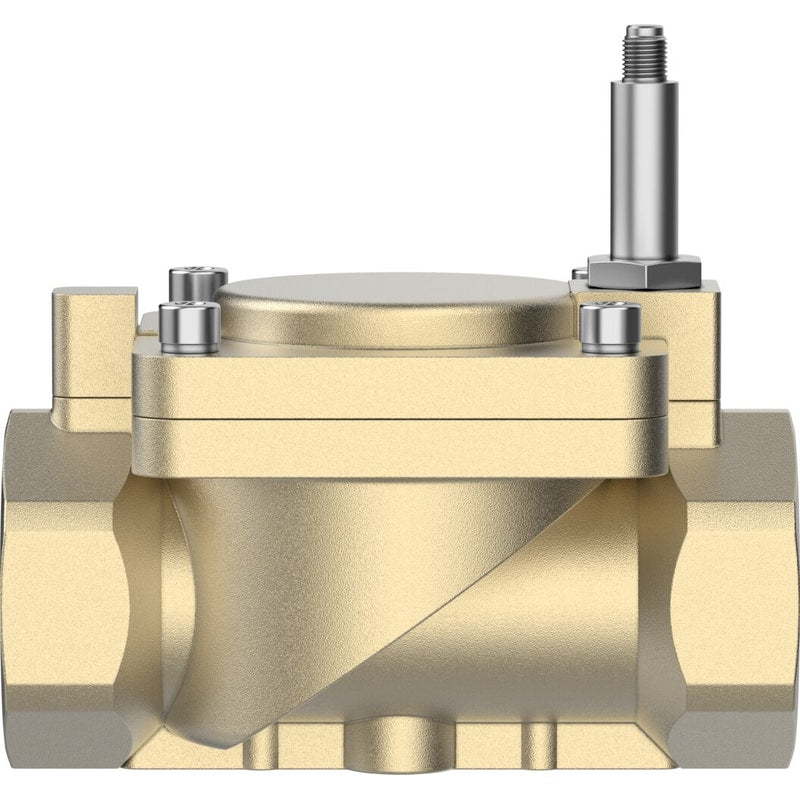

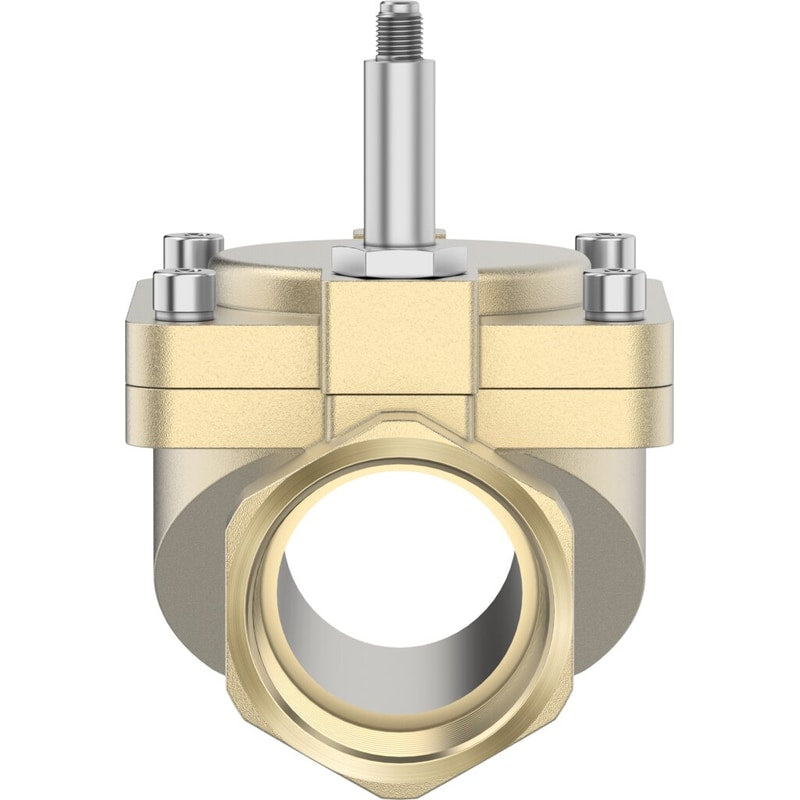

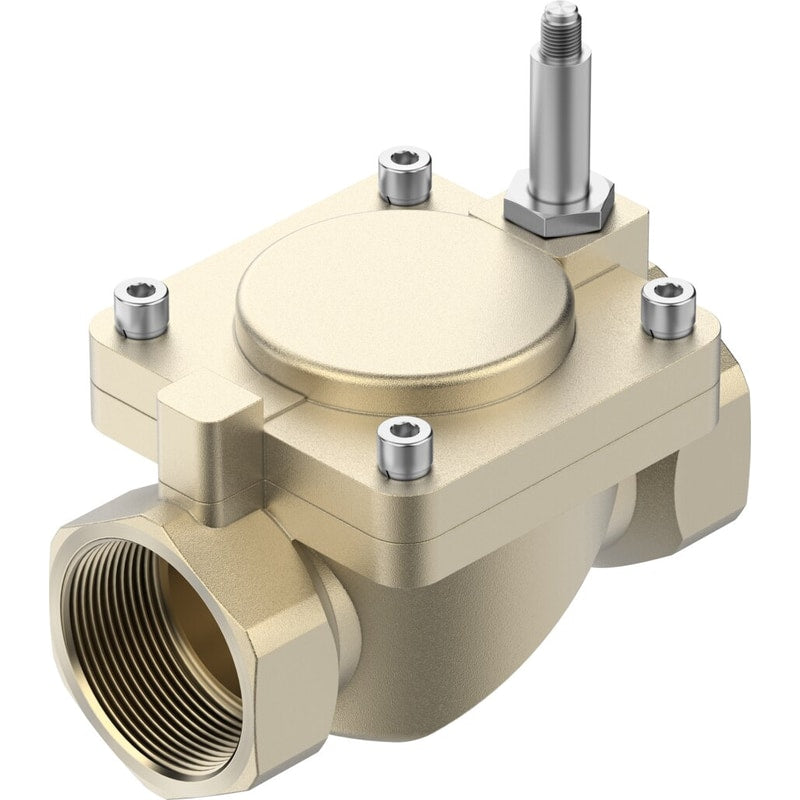

VZWM-L-M22C-N2-F5

The poppet valve with with diaphragm seal for control of air or water is suitable for all-purpose use with either medium.

Type code	VZWM
Design	Poppet valve with diaphragm seal
Actuation type	Electrical
Sealing principle	Soft
Mounting position	Preferably upright
Type of mounting	Line installation
Fitting connection	G3/8
Electrical connection	Solenoid coil type MD-... , coil can be ordered as an accessory
Nominal width	13.5 mm
Valve function	2/2, closed, monostable
Flow direction	Non-reversible
Medium	Neutral liquidsInert gasCompressed air as per ISO 8573-1:2010 [7:4:4]Water
Medium pressure of liquid media	0.5 bar ... 6 bar
Medium pressure of gaseous media	0.5 bar ... 10 bar
Differential pressure	0.5 bar
Type of control	Pilot-controlled

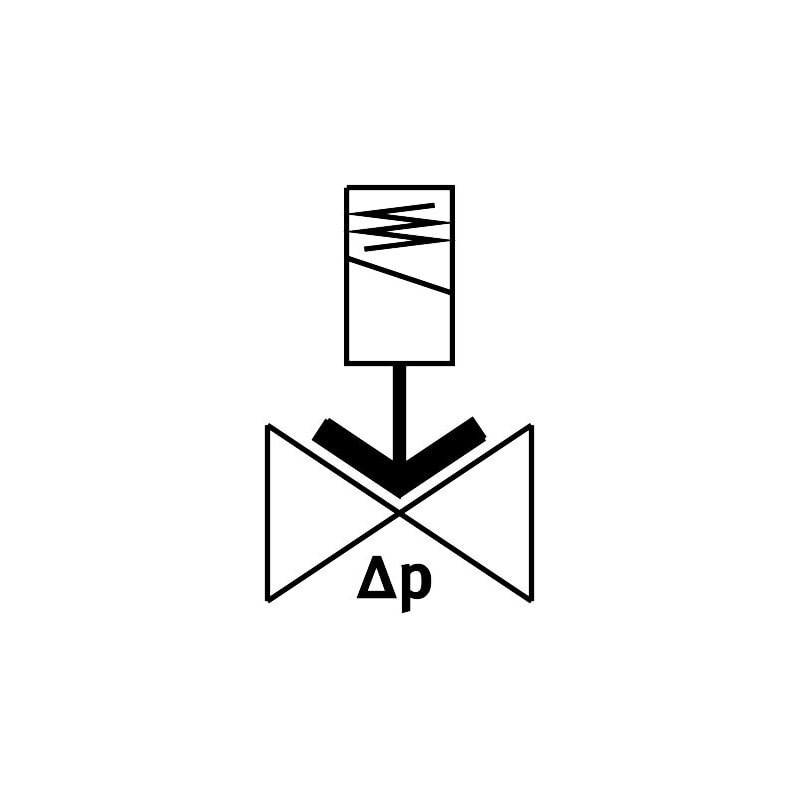

Symbol	00995681
Max. viscosity	22 mm²/s
Temperature of medium	-10 °C ... 60 °C
Temperature of liquid media	5 °C ... 50 °C
Ambient temperature	-10 °C ... 60 °C
Flow rate Kv	2 m³/h
Standard nominal flow rate	2100 l/min
On switching time	8 ms
Response time "on" for liquid media	110 ms
Switching time off	10 ms
Response time "off" for liquid media	210 ms
b-value	0.35
C value	8.8 l/sbar
Note on materials	Contains paint-wetting impairment substancesRoHS-compliant
Housing material	Brass
Material number of housing	2.0402
Seals material	NBR
