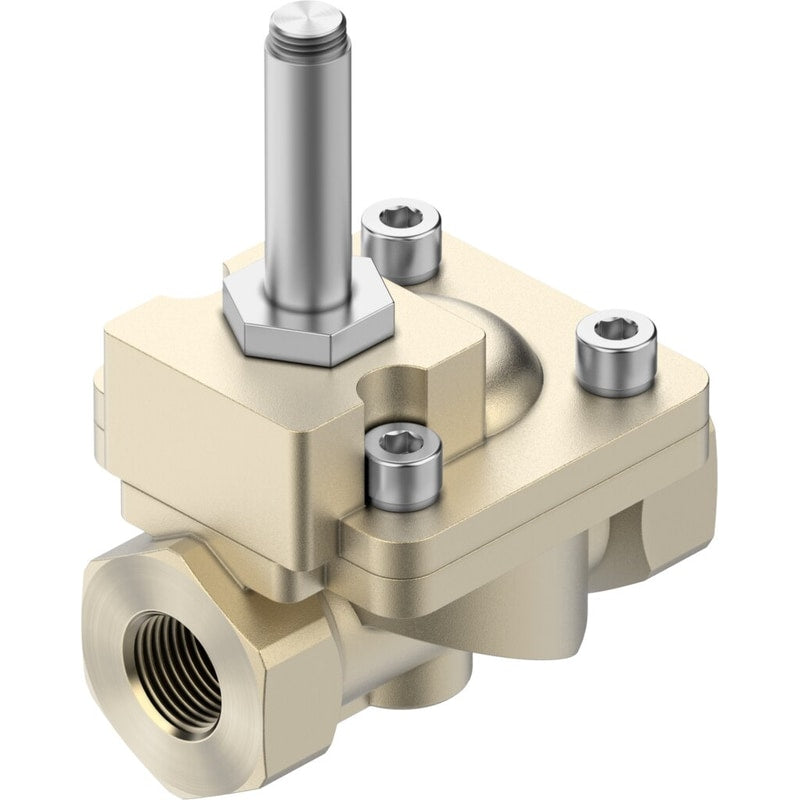

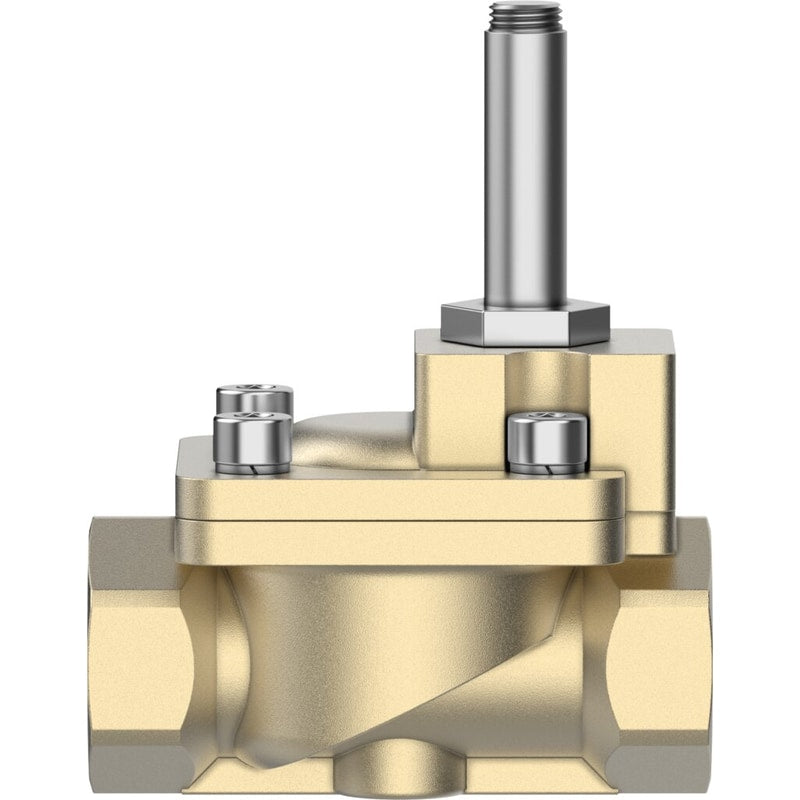

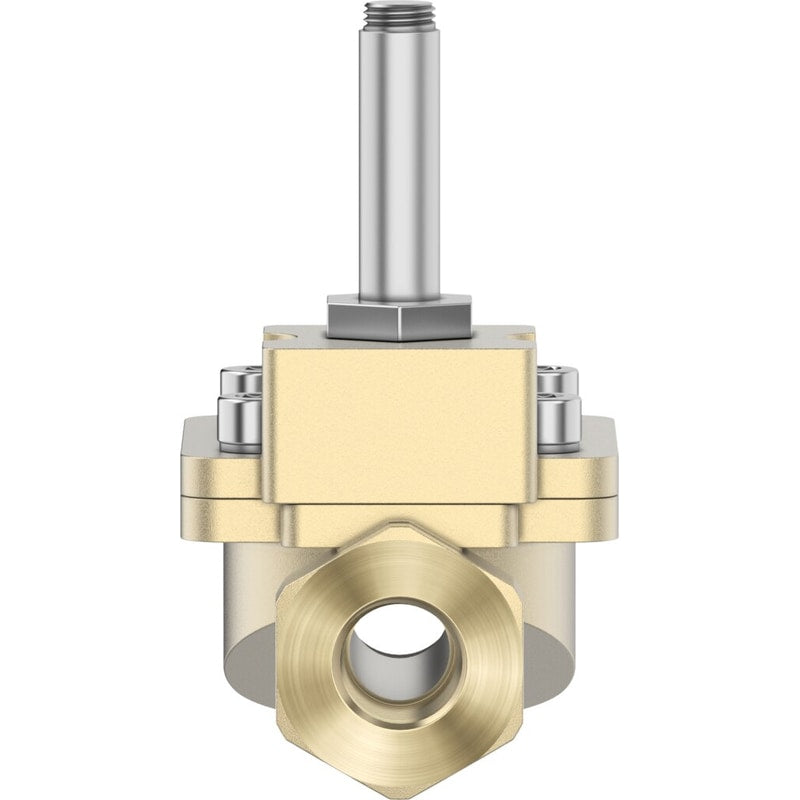

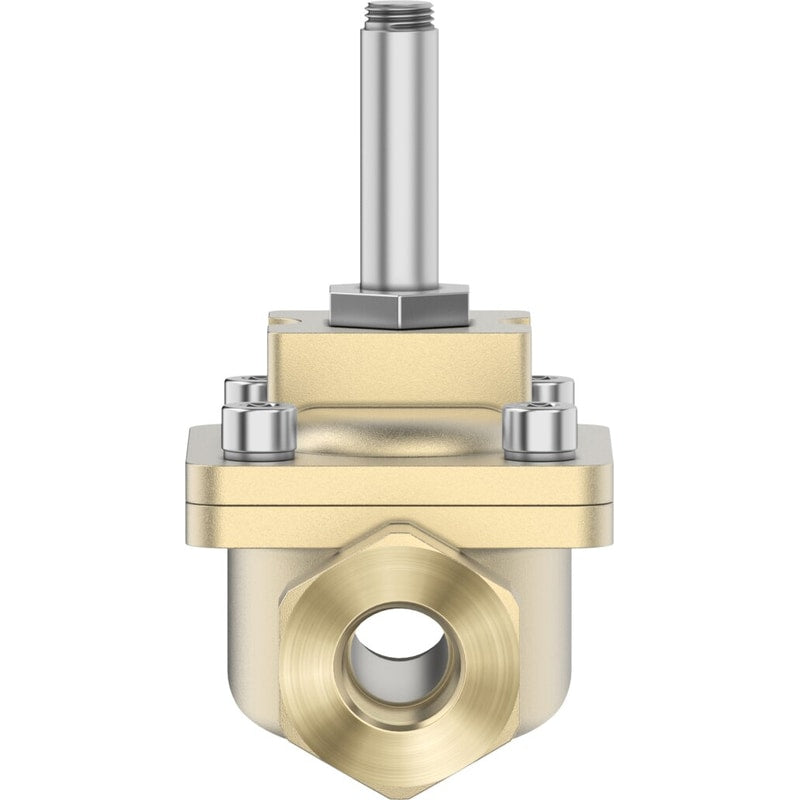

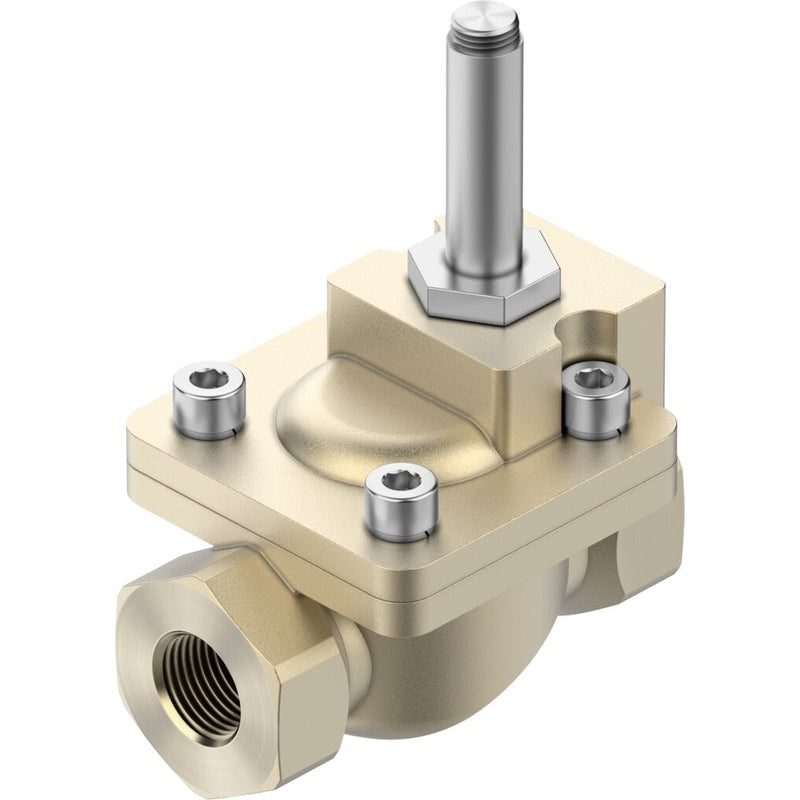

Air solenoid valve
VZWM-L-M22C-N12-F4
546156
GTIN 4052568352257
Vendor Festo
Regular price
$132.55
Unit price
VZWM-L-M22C-N12-F4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZWM-L-M22C-N12-F4
Regular price
$132.55
Unit price
VZWM-L-M22C-N12-F4 is backordered and will ship as soon as it is back in stock.
| Type code | MN1H |
|---|---|
| Design | Diaphragm valve |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | G1 |
| Electrical connection | as per DIN EN 175301-803PlugForm ARectangular design |
| Nominal width | 25 mm |
| Valve function | 2/2, closed, monostable |
| Manual override | Non-detentingDetenting via accessory |
| Flow direction | Non-reversible |
| Medium | Filtered compressed air, 200 µm filter mesh |
| Exhaust air function | Without flow control option |
| Coil characteristics | 230 V AC: 50 Hz, initial power 5.0 VA, holding power 3.7 VA110 V AC: 60 Hz, initial power 5.0 VA, holding power 3.7 VA110 V AC: 50 Hz, initial power 5.0 VA, holding power 3.7 VA230 V AC: 60 Hz, initial power 5.0 VA, holding power 3.7 VA24 V DC: 2.5 W |
| Reset method | Pneumatic spring |
| Type of control | Pilot-controlled |

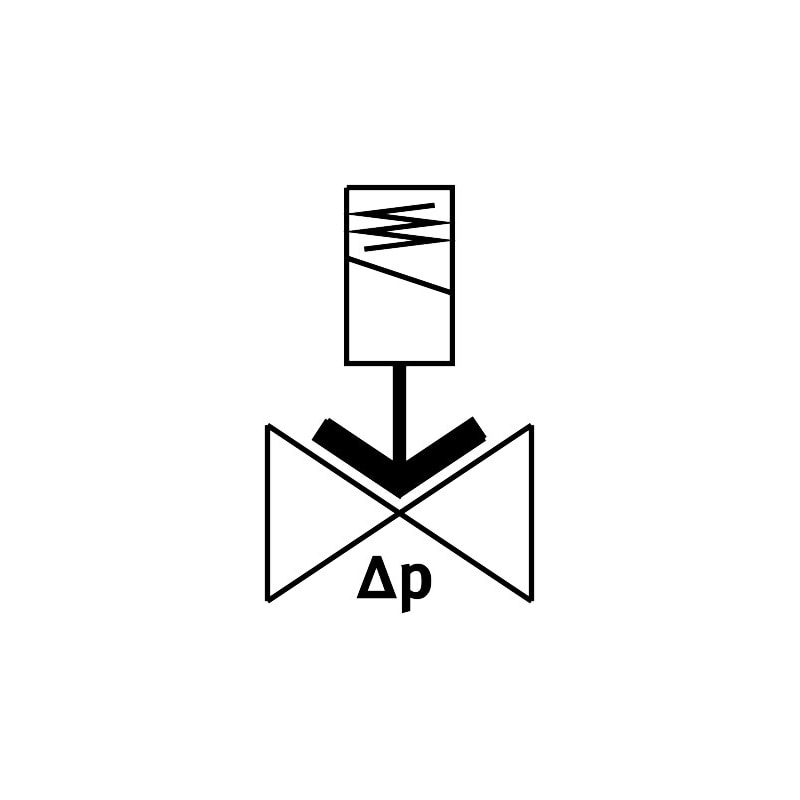

| Symbol | 00991399 |
| Medium pressure | 0.5 bar ... 10 bar |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Standard nominal flow rate | 11500 l/min |
| On switching time | 120 ms |
| Switching time off | 180 ms |
| Housing material | Brass |
| Material of screws | High-alloy stainless steel |
| Material number of screw | 1.4301 |
| Product weight | 1000 g |
| Degree of protection | With plug socketIP65 |
