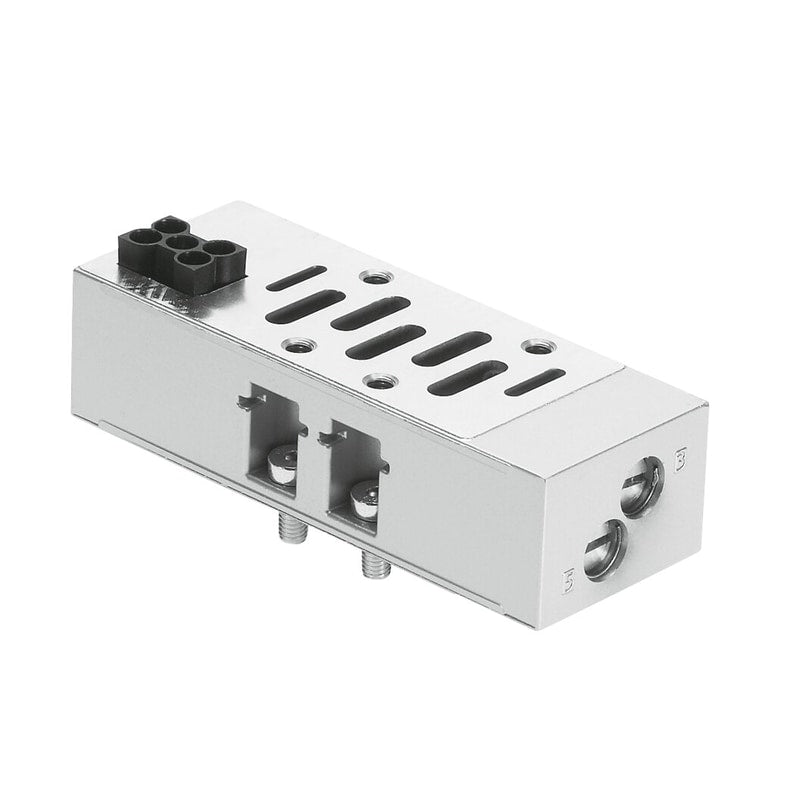

VABF-S2-1-F1B1-C

flow control plate VABF-S2-1-F1B1-C For valve terminal VTSA, standard port pattern to 5599-1, 5599-2, for mounting between manifold sub-base and valve, for restricting exhaust air ports 3 and 5 on the valve. Width=43 mm, Based on the standard=ISO 5599-2, Assembly position=Any, Pneumatic vertical stacking=Throttle plate, exhaust air flow control, Operating pressure=-0,9 - 10 bar

Width	43 mm
Based on the standard	ISO 5599-2
Assembly position	Any
Pneumatic vertical stacking	Throttle plate, exhaust air flow control
Operating pressure	'-0.9 ... 10 bar
Standard nominal flow rate	1,100 l/min
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
CE mark (see declaration of conformity)	to EU directive low-voltage devices
Corrosion resistance classification CRC	0 - No corrosion stress
Protection class	IP65NEMA 4
Ambient temperature	'-5 ... 50 °C
Product weight	220 g
