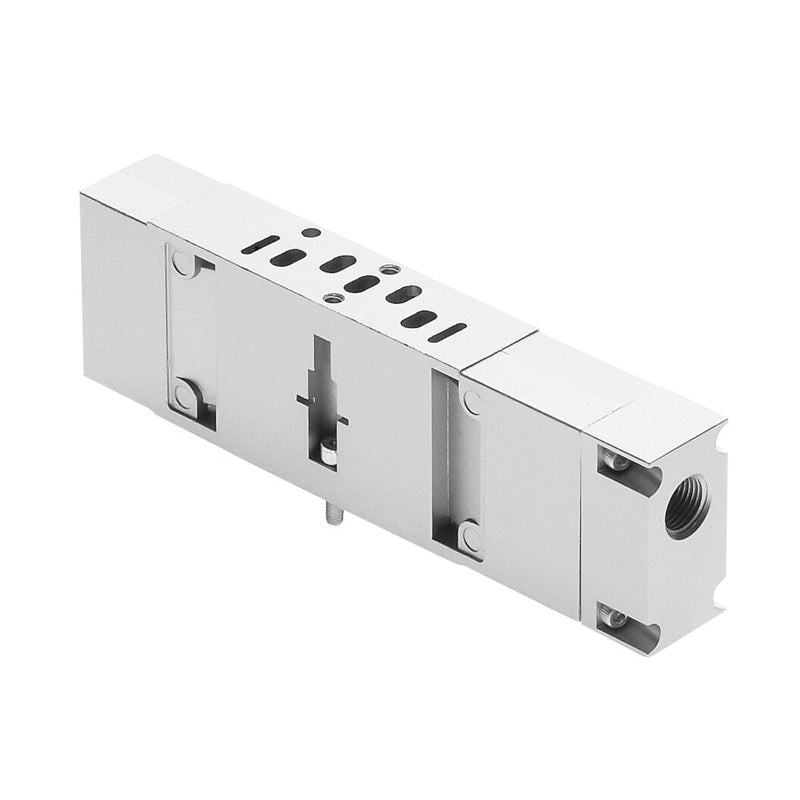

Vertical pressure supply plate
VABF-S3-2-P1A3-G18
544435
GTIN 4052568091897
Vendor Festo
Regular price
$77.35
Unit price
VABF-S3-2-P1A3-G18 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABF-S3-2-P1A3-G18
Regular price
$77.35
Unit price
VABF-S3-2-P1A3-G18 is backordered and will ship as soon as it is back in stock.
vertical pressure supply plate VABF-S3-2-P1A3-G18 For valve terminal VDMA-01/02, standard port pattern to 15407-1, for mounting between manifold sub-base and valve. Width=18 mm, Based on the standard=ISO 15407-1, Assembly position=Any, Pneumatic vertical stacking=Alternative pressure supply for 1, Operating pressure=-0,9 - 10 bar
| Width | 18 mm |
|---|---|
| Based on the standard | ISO 15407-1 |
| Assembly position | Any |
| Pneumatic vertical stacking | Alternative pressure supply for 1 |
| Operating pressure | '-0.9 ... 10 bar |
| Standard nominal flow rate | 500 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP65NEMA 4 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 146 g |
| Vertical stacking type of mounting | on manifold blockon individual sub-base |
