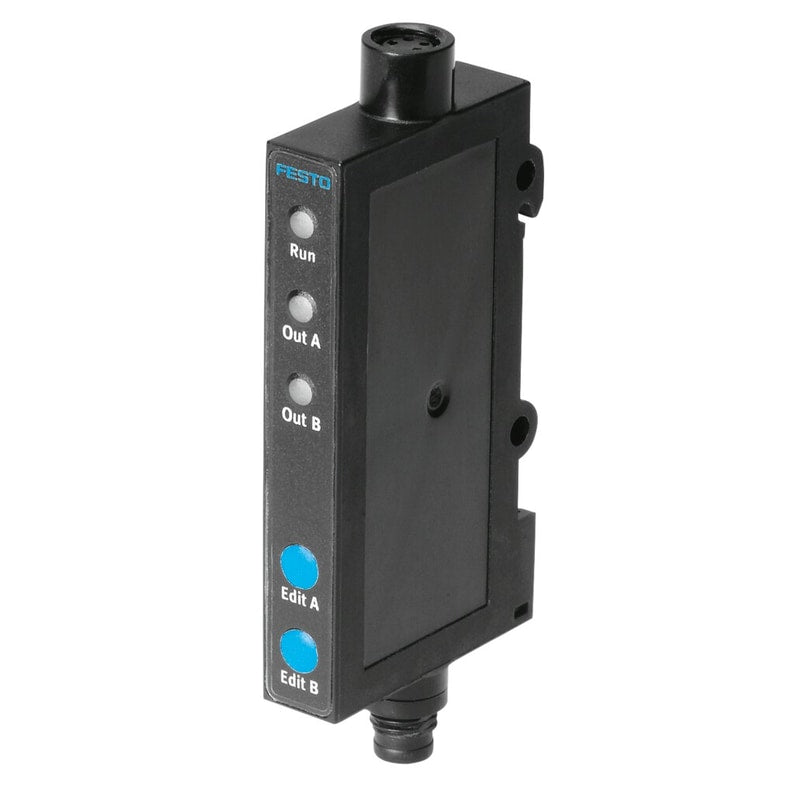

Signal conditioner
SVE4-HS-R-HM8-2N-M8
544219
GTIN 4052568184018
Vendor Festo
- Signal range
- Adapted for position sensors SMH-S1-HG
- Switching output
- 2xNPN
- Switching function
- Freely programmable
Regular price
$202.58
Unit price
SVE4-HS-R-HM8-2N-M8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SVE4-HS-R-HM8-2N-M8
Regular price
$202.58
Unit price
SVE4-HS-R-HM8-2N-M8 is backordered and will ship as soon as it is back in stock.
signal converter SVE4-HS-R-HM8-2N-M8 Converts the analogue output signal of a sensor into switching points Authorisation=(* RCM Mark, * c UL us - Listed (OL)), UL ambient temperature=-20 - 60 °C, CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Free of copper and PTFE, Signal range=For position sensor SMH-S1-HG
| Authorisation | RCM Markc UL us - Listed (OL) |
|---|---|
| UL ambient temperature | '-20 ... 60 °C |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Free of copper and PTFE |
| Signal range | For position sensor SMH-S1-HG |
| Ambient temperature | '-20 ... 70 °C |
| Switch output | 2xNPN |
| Switching function | Freely programmable |
| Switching element function | Switchable |
| Short circuit strength | Pulsing |
| Overload withstand capability | Available |
| Operating voltage range DC | 10 ... 30 V |
| Electrical input connection | Plug socketM8x14-pinto EN 60947-5-2 |
