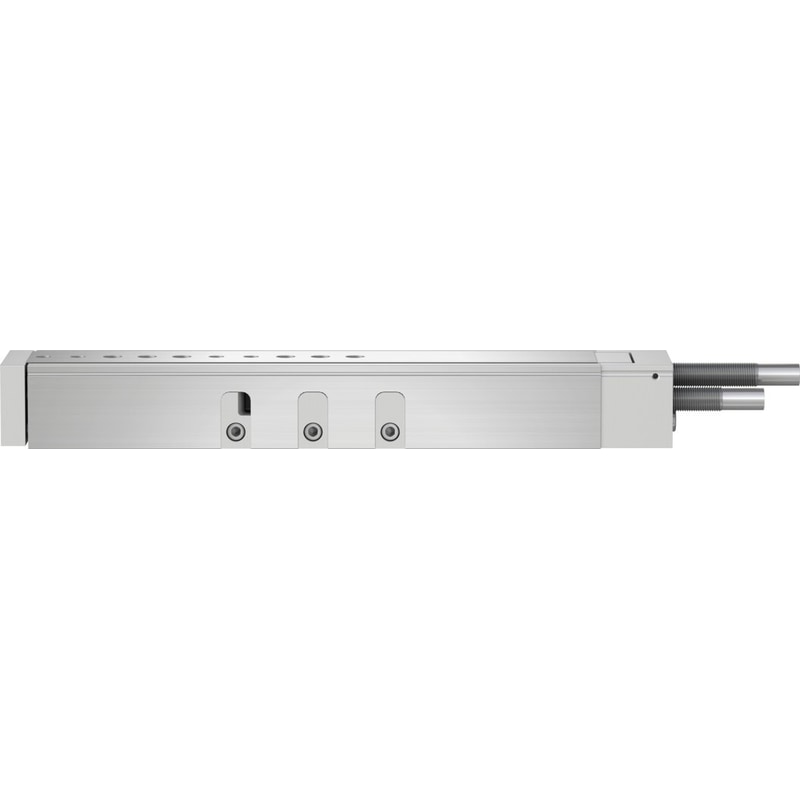

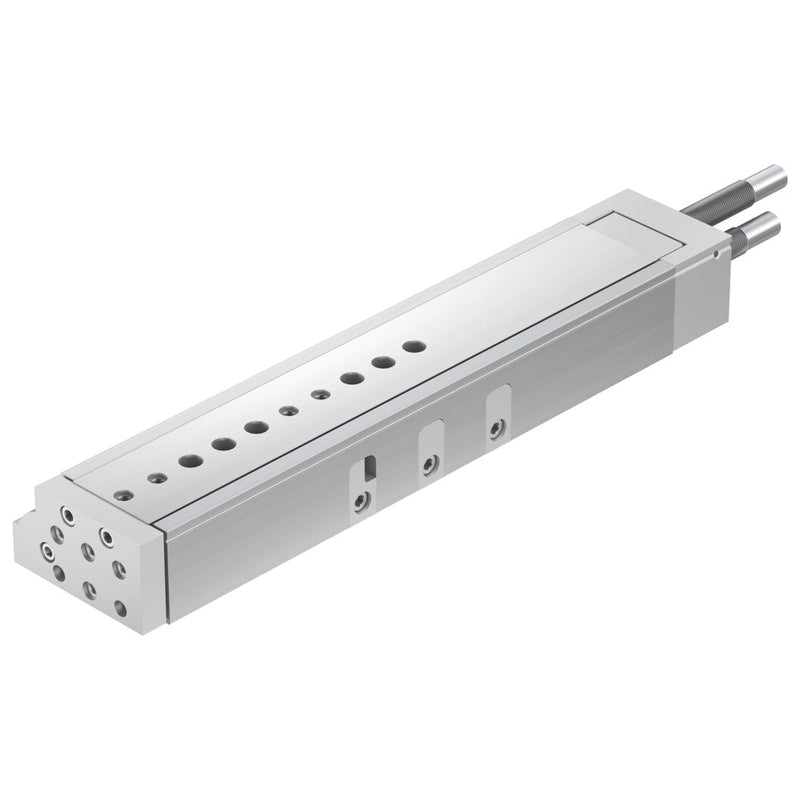

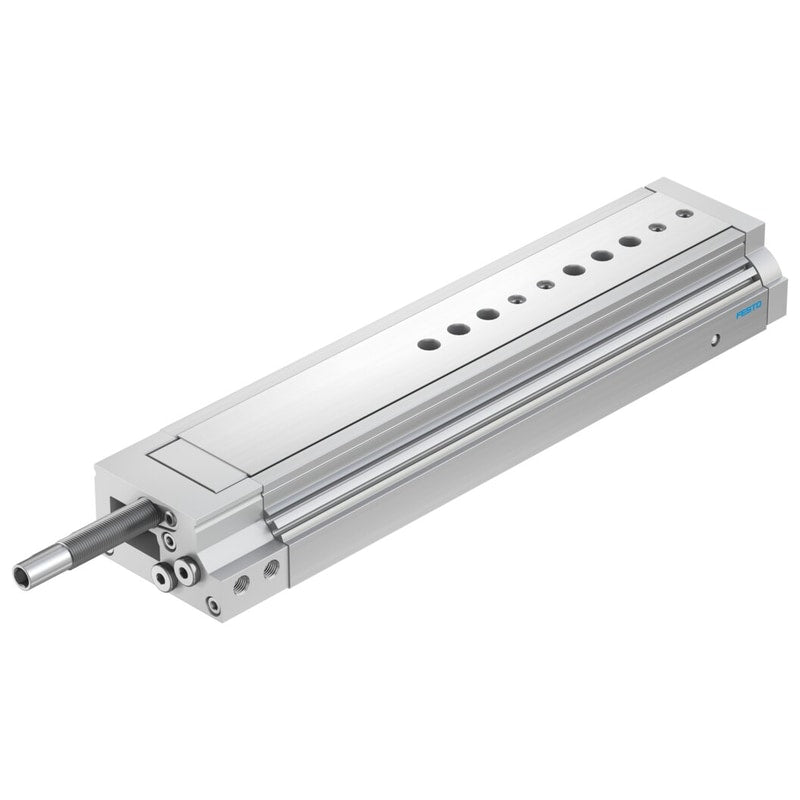

Mini slide
DGSL-20-200-Y3A
544029
GTIN 4052568183721
Vendor Festo
- Piston diameter
- 25 mm
- Theoretical force at 6 bar, advancing
- 295 N
- Stroke
- 200 mm
- Cushioning
- Progressive pneumatic shock absorbers at both ends
- Position sensing
- For proximity sensor
Regular price
$2,209.47
Unit price
DGSL-20-200-Y3A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DGSL-20-200-Y3A
Regular price
$2,209.47
Unit price
DGSL-20-200-Y3A is backordered and will ship as soon as it is back in stock.
mini slide DGSL-20-200-Y3A For position sensing, with highly accurate, durable ball-cage guide and very high repetition accuracy, hydraulic shock absorbers on both sides (Y3). Stroke=200 mm, Adjustable endposition range/front length=132 mm, Adjustable endposition range/rear length=42 mm, Piston diameter=25 mm, Operating mode of drive unit=Yoke
| Stroke | 200 mm |
|---|---|
| Adjustable endposition range/front length | 132 mm |
| Adjustable endposition range/rear length | 42 mm |
| Piston diameter | 25 mm |
| Operating mode of drive unit | Yoke |
| Cushioning | Y3: Shock absorber at both ends, progressive |
| Assembly position | Any |
| Guide | Ball bearing cage guide |
| Design structure | Yoke kinematics |
| Position detection | For proximity sensor |
| Operating pressure | 1 ... 8 bar |
| Max. speed | 0.8 m/s |
| Repetition accuracy | ±0,01 mm |
