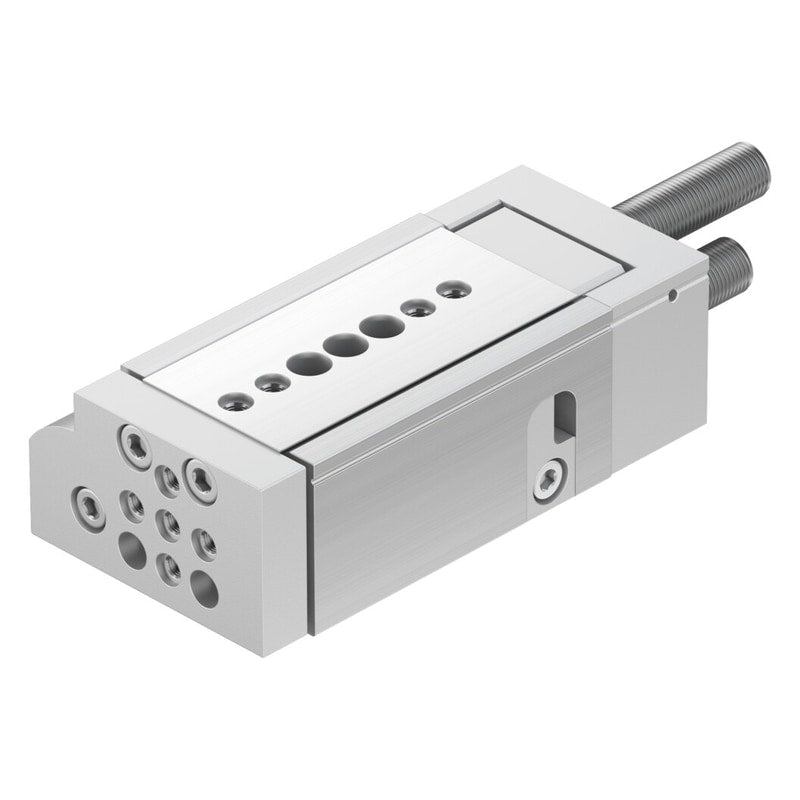

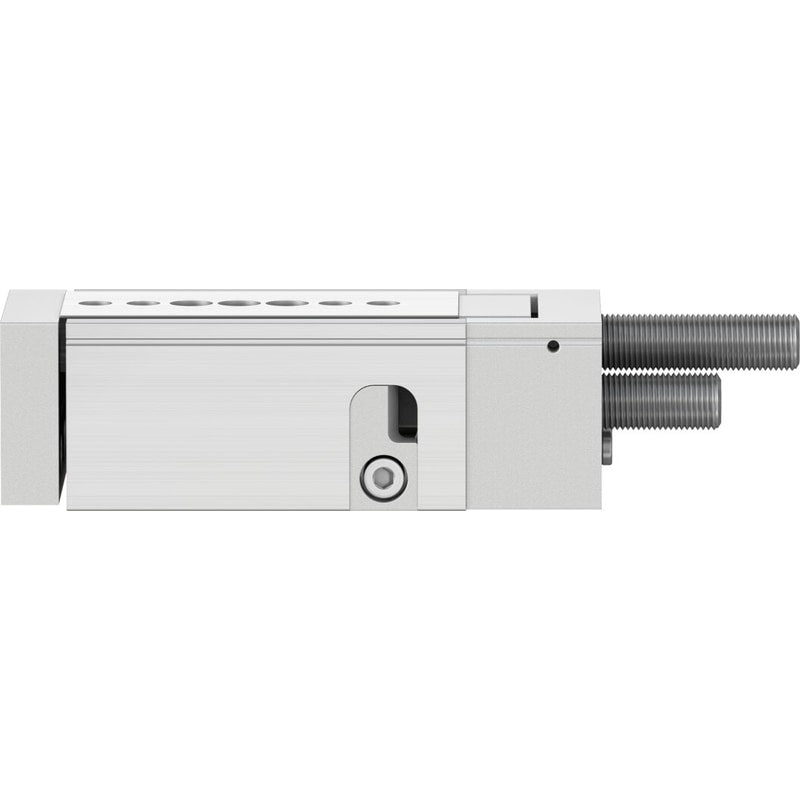

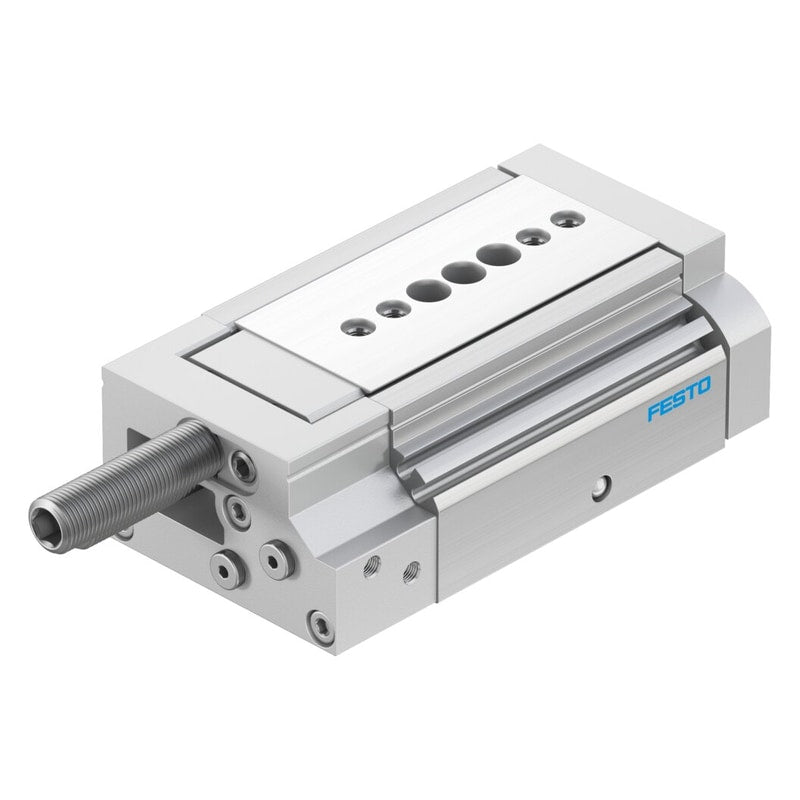

Mini slide
DGSL-16-10-P1A
543991
GTIN 4052568183349
Vendor Festo
- Piston diameter
- 20 mm
- Theoretical force at 6 bar, advancing
- 188 N
- Stroke
- 10 mm
- Cushioning
- Elastic cushioning rings/pads at both ends with fixed stop
- Position sensing
- For proximity sensor
Regular price
$1,000.08
Unit price
DGSL-16-10-P1A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DGSL-16-10-P1A
Regular price
$1,000.08
Unit price
DGSL-16-10-P1A is backordered and will ship as soon as it is back in stock.
mini slide DGSL-16-10-P1A For position sensing, with highly accurate, durable ball-cage guide and very high repetition accuracy, flexible damping on both sides with metallic end position (P1). Stroke=10 mm, Adjustable endposition range/front length=37,5 mm, Adjustable endposition range/rear length=39,5 mm, Piston diameter=20 mm, Operating mode of drive unit=Yoke
| Stroke | 10 mm |
|---|---|
| Adjustable endposition range/front length | 37.5 mm |
| Adjustable endposition range/rear length | 39.5 mm |
| Piston diameter | 20 mm |
| Operating mode of drive unit | Yoke |
| Cushioning | P1: Flexible cushioning rings/plates with stop at both ends |
| Assembly position | Any |
| Guide | Ball bearing cage guide |
| Design structure | Yoke kinematics |
| Position detection | For proximity sensor |
| Operating pressure | 1 ... 8 bar |
| Max. speed | 0.8 m/s |
| Repetition accuracy | ±0,01 mm |
