Proximity sensor
SME-8M-DS-24V-K-0,3-M8D
543861
GTIN 4052568091774
Vendor Festo
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- DC operating voltage range
- 5 V - 30 V
- Switching element function
- N/O contact
- Switching output
- Contact-based, bipolar
Regular price
$46.90
Unit price
SME-8M-DS-24V-K-0,3-M8D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SME-8M-DS-24V-K-0,3-M8D
Regular price
$46.90
Unit price
SME-8M-DS-24V-K-0,3-M8D is backordered and will ship as soon as it is back in stock.

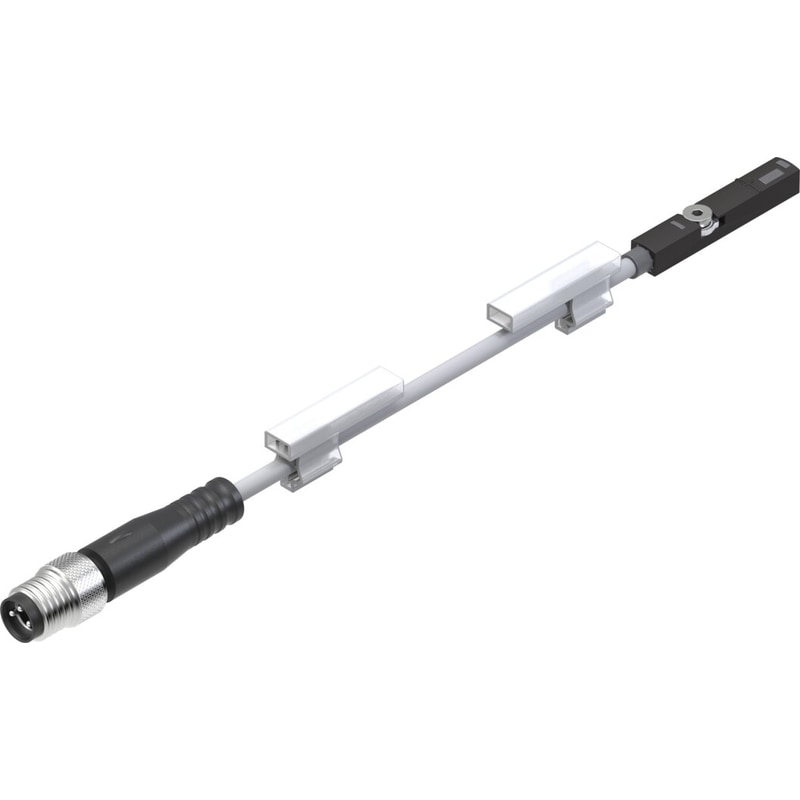

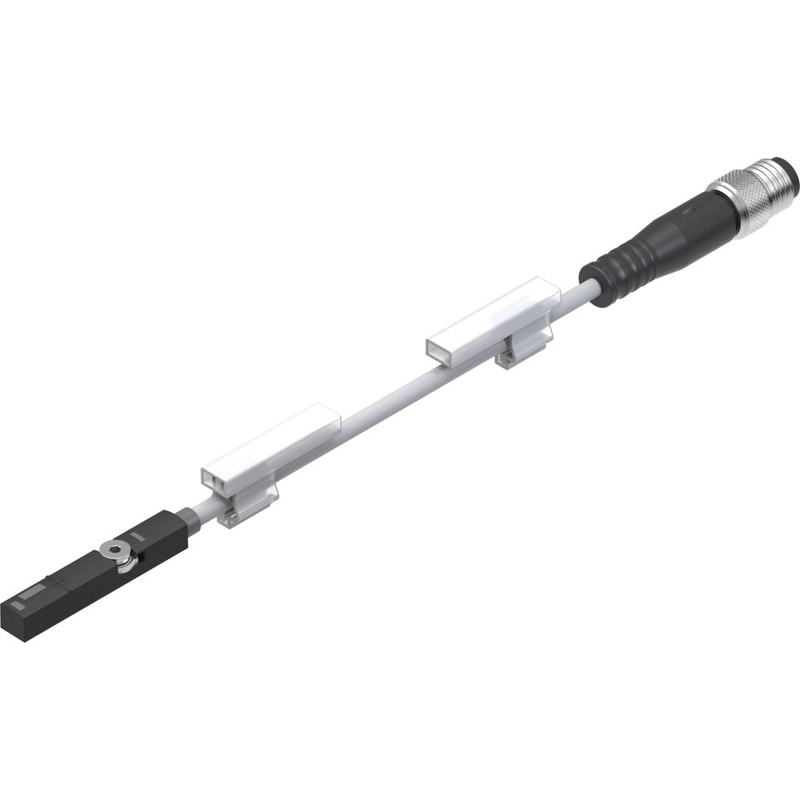

proximity sensor SME-8M-DS-24V-K-0,3-M8D Electric, with reed contact, for drives with T-slot, assembly from above, with M8 plug. Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Special characteristics=Oil resistant, Materials note=(* Free of copper and PTFE, * Conforms to RoHS), Measuring principle=Reed magnetic
| Authorisation | RCM Markc UL us - Listed (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Special characteristics | Oil resistant |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Measuring principle | Reed magnetic |
| Ambient temperature | '-40 ... 70 °C |
| Switch output | with contact, bipolar |
| Switching element function | Normally open contact |
| Max. output current | 500 mA |
| Max. output current in mounting kits | 80 mA |
| Max. contact rating AC | 10 VA |
| Max. contact rating DC | 10 W |
| Max. switching capacity DC in mounting kits | 2.4 W |
