Manifold block
CPE10-PRS-1/4-6
543825
GTIN 4052568091545
Vendor Festo
Regular price
$109.55
Unit price
CPE10-PRS-1/4-6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPE10-PRS-1/4-6
Regular price
$109.55
Unit price
CPE10-PRS-1/4-6 is backordered and will ship as soon as it is back in stock.

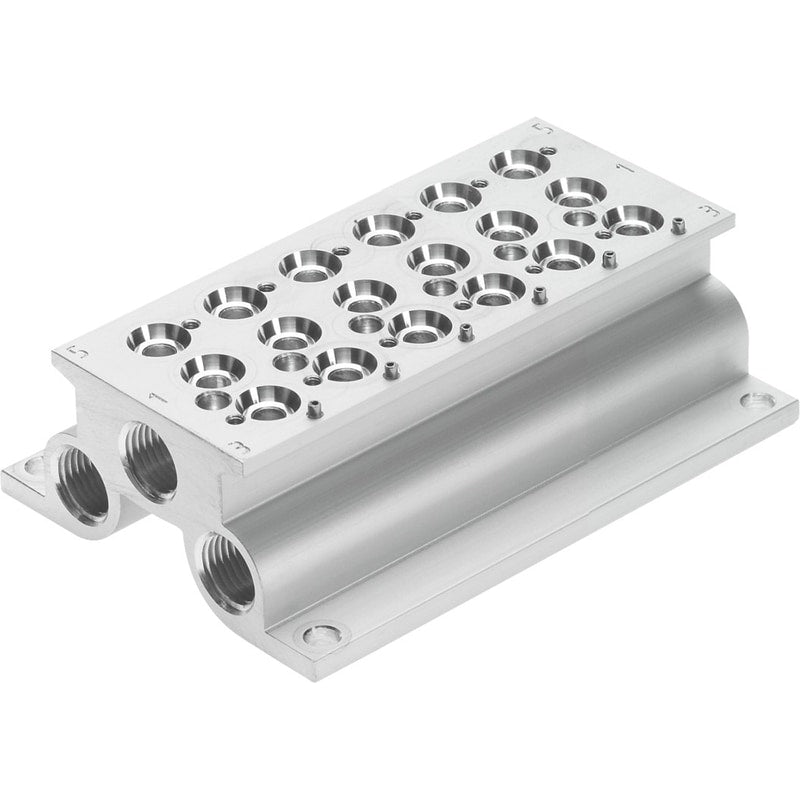

manifold block CPE10-PRS-1/4-6 For CPE valves. Grid dimension=16 mm, Assembly position=Any, Max. number of valve positions=6, Max. no. of pressure zones=2, Operating pressure=-0,9 - 10 bar
| Grid dimension | 16 mm |
|---|---|
| Assembly position | Any |
| Max. number of valve positions | 6 |
| Max. no. of pressure zones | 2 |
| Operating pressure | '-0.9 ... 10 bar |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Medium temperature | '-5 ... 50 °C |
| Ambient temperature | '-5 ... 50 °C |
| Max. tightening torque, valve mounting | 1.2 Nm |
| Product weight | 323 g |
| Type of mounting in-line valve manifold | with through hole |
| Mounting method for valve | with internal (female) thread |
| Pneumatic connection, port 1 | G1/4 |
