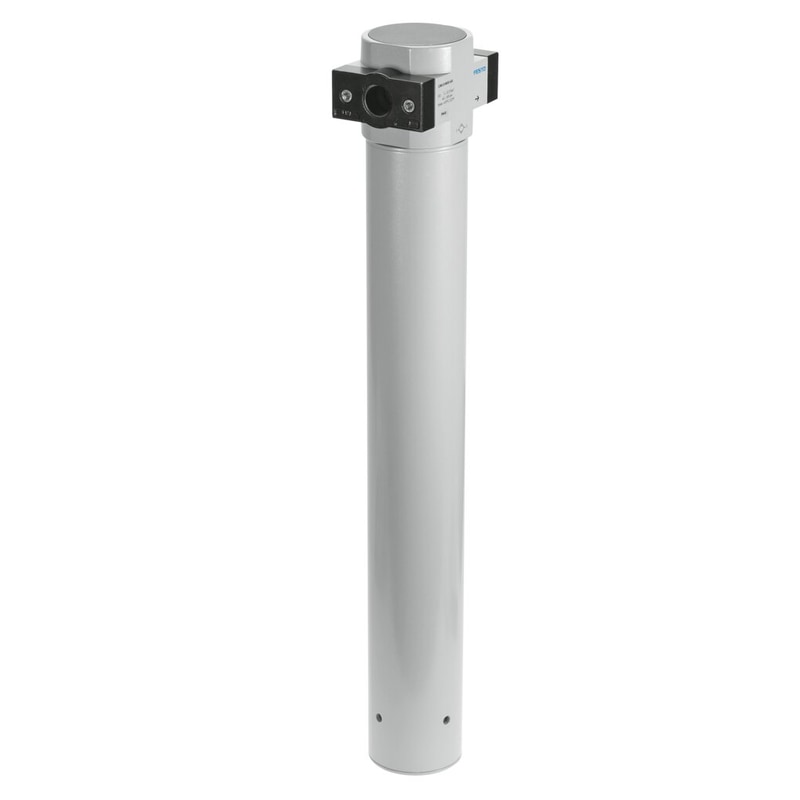

Membrane air dryer
LDM1-1-D-MAXI-300
543673
GTIN 4052568182236
Vendor Festo
- Pneumatic connection 1
- G1
- Normal nominal flow rate (normalized to DIN 1343)
- 300 l/min
- Operating pressure
- 3 bar - 12.5 bar
- Pressure dew point reduction
- 20 K
Regular price
$3,988.89
Unit price
Membrane air dryer LDM1-1-D-MAXI-300 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LDM1-1-D-MAXI-300
Regular price
$3,988.89
Unit price
Membrane air dryer LDM1-1-D-MAXI-300 is backordered and will ship as soon as it is back in stock.
| Size | Maxi |
|---|---|
| Type code | LDM1 |
| Series | D |
| Mounting position | Vertical +/- 5° |
| Design | Membrane dryer |
| Symbol | 991516 |
| Operating pressure | 3 bar ... 12.5 bar |
| Standard nominal flow rate | 300 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [1:3:1] |
| Pressure dew point reduction | -253.15 °C |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Storage temperature | -20 °C ... 60 °C |
| Temperature of medium | 2 °C ... 50 °C |
| Ambient temperature | 2 °C ... 50 °C |
| Product weight | 2000 g |
| Type of mounting | With accessoriesOptionally:Line installation |
| Pneumatic connection 1 | G1 |
| Pneumatic connection 2 | G1 |
| Housing material | Die-cast zinc |
| Material of bowl | Wrought aluminum alloy |
