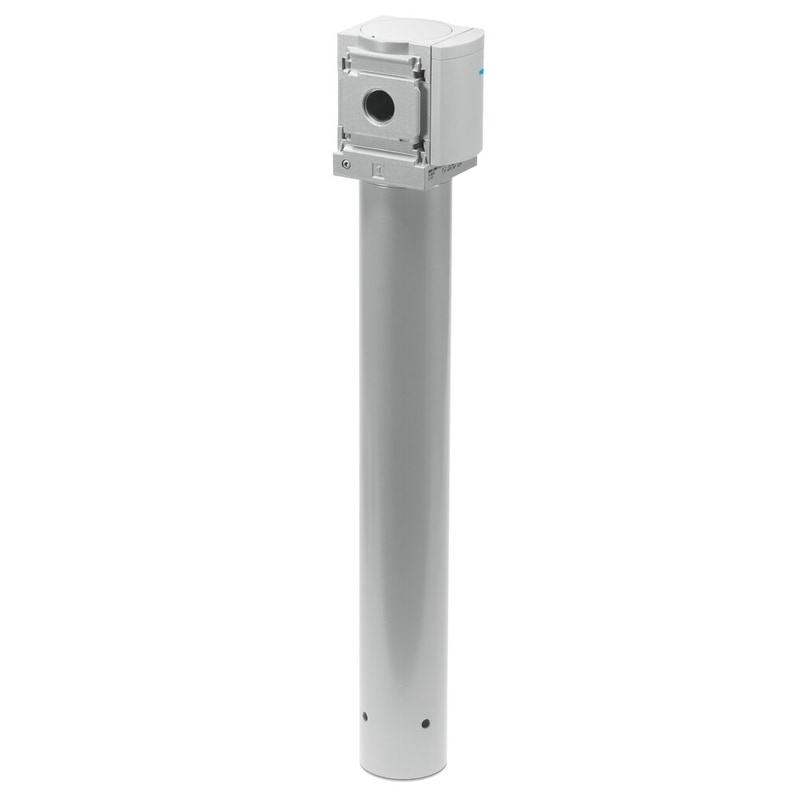

Membrane air dryer
MS6N-LDM1-3/8-P40-Z
543661
GTIN 4052568348830
Vendor Festo
- Pneumatic connection 1
- 3/8 NPT
- Normal nominal flow rate (normalized to DIN 1343)
- 400 l/min
- Operating pressure
- 3 bar - 12.5 bar
- Ambient temperature
- 2 °C - 50 °C
- Pressure dew point reduction
- 20 K
Regular price
$1,122.03
Unit price
Membrane air dryer MS6N-LDM1-3/8-P40-Z is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6N-LDM1-3/8-P40-Z
Regular price
$1,122.03
Unit price
Membrane air dryer MS6N-LDM1-3/8-P40-Z is backordered and will ship as soon as it is back in stock.
membrane air dryer MS6N-LDM1-3/8-P40-Z Reduced pressure dew-point, with metal bowl, direction of flow: from right to left Size=6, Series=MS, Assembly position=Vertical +/- 5°, Design structure=Membrane dryer, Operating pressure=3 - 12,5 bar
| Size | 6 |
|---|---|
| Series | MS |
| Assembly position | Vertical +/- 5° |
| Design structure | Membrane dryer |
| Operating pressure | 3 ... 12.5 bar |
| Standard nominal flow rate | 400 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [1:4:2] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Pressure dew-point reduction | 20 K |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-20 ... 60 °C |
| Air purity class at output | Compressed air to ISO8573-1:2010 [1:3:2] |
| Medium temperature | 2 ... 50 °C |
