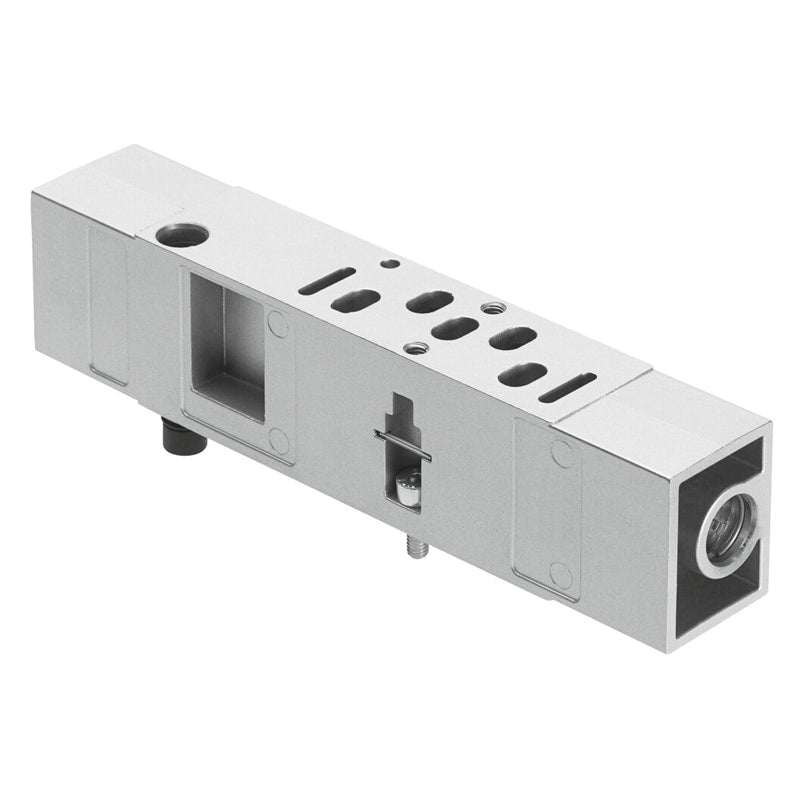

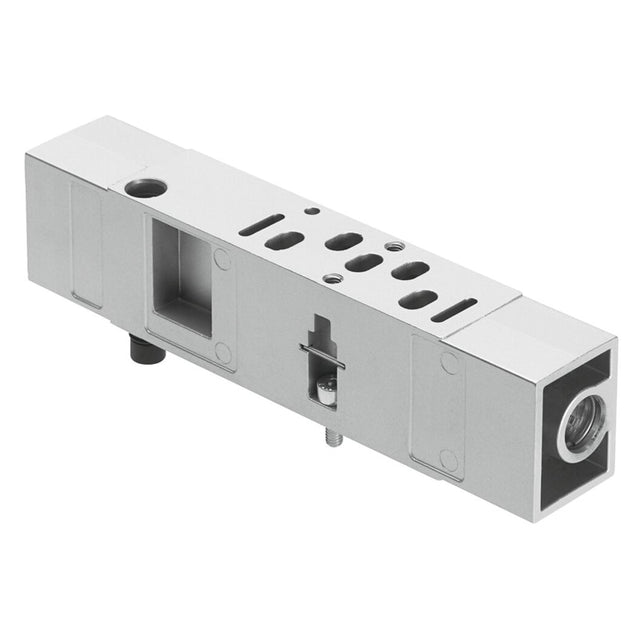

VABF-S3-1-F1B1-C

flow control plate VABF-S3-1-F1B1-C For valve terminal VDMA-01/02, standard port pattern to 15407-1, for mounting between manifold sub-base and valve, for restricting exhaust air ports 3 and 5 on the valve. Width=26 mm, Based on the standard=ISO 15407-1, Assembly position=Any, Pneumatic vertical stacking=Throttle plate, exhaust air flow control, Operating pressure=-0,9 - 10 bar

Width	26 mm
Based on the standard	ISO 15407-1
Assembly position	Any
Pneumatic vertical stacking	Throttle plate, exhaust air flow control
Operating pressure	'-0.9 ... 10 bar
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC	0 - No corrosion stress
Protection class	IP65NEMA 4
Ambient temperature	'-5 ... 50 °C
Product weight	320 g
Vertical stacking type of mounting	on manifold blockon individual sub-base
Materials note	Conforms to RoHS
