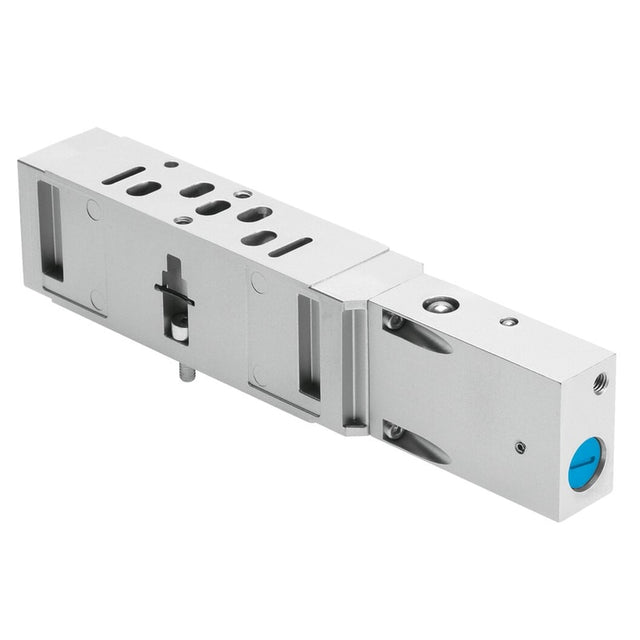

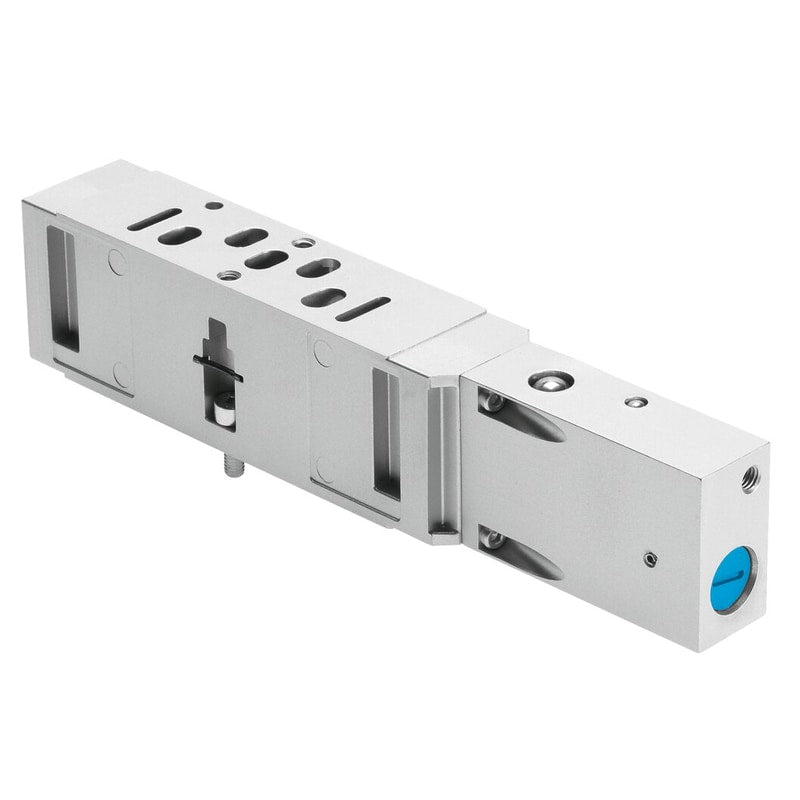

Vertical pressure shut-off plate
VABF-S3-1-L1D1-C
543602
GTIN 4052568182076
Vendor Festo
Regular price
$184.89
Unit price
VABF-S3-1-L1D1-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABF-S3-1-L1D1-C
Regular price
$184.89
Unit price
VABF-S3-1-L1D1-C is backordered and will ship as soon as it is back in stock.

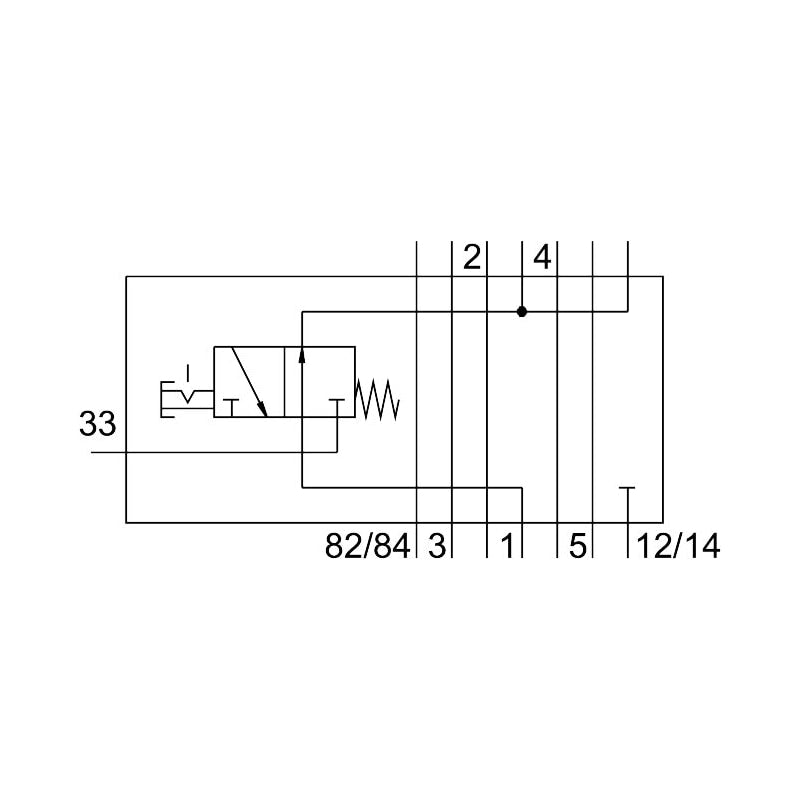

vertical pressure shut-off plate VABF-S3-1-L1D1-C For valve terminal VDMA-01/02, standard port pattern to 15407-1, for mounting between manifold sub-base and valve, supply pressure of the terminal is blocked. Dismantling of the valve is possible without shutting off the pressure of the terminal. Width=26 mm, Based on the standard=ISO 15407-1, Assembly position=Any, Pneumatic vertical stacking=Shut-off for 1, Operating pressure=-0,9 - 10 bar
| Width | 26 mm |
|---|---|
| Based on the standard | ISO 15407-1 |
| Assembly position | Any |
| Pneumatic vertical stacking | Shut-off for 1 |
| Operating pressure | '-0.9 ... 10 bar |
| Standard nominal flow rate | 800 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP65NEMA 4 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 286 g |
| Vertical stacking type of mounting | on manifold blockon individual sub-base |
