Air preparation combination unit MSB6N-1/2:C3J1F3-WP
543574
Vendor Festo
Regular price
$349.27
Unit price
Air preparation combination unit MSB6N-1/2:C3J1F3-WP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
Air preparation combination unit MSB6N-1/2:C3J1F3-WP
Regular price
$349.27
Unit price
Regular price
$349.27
Unit price
Air preparation combination unit MSB6N-1/2:C3J1F3-WP is backordered and will ship as soon as it is back in stock.

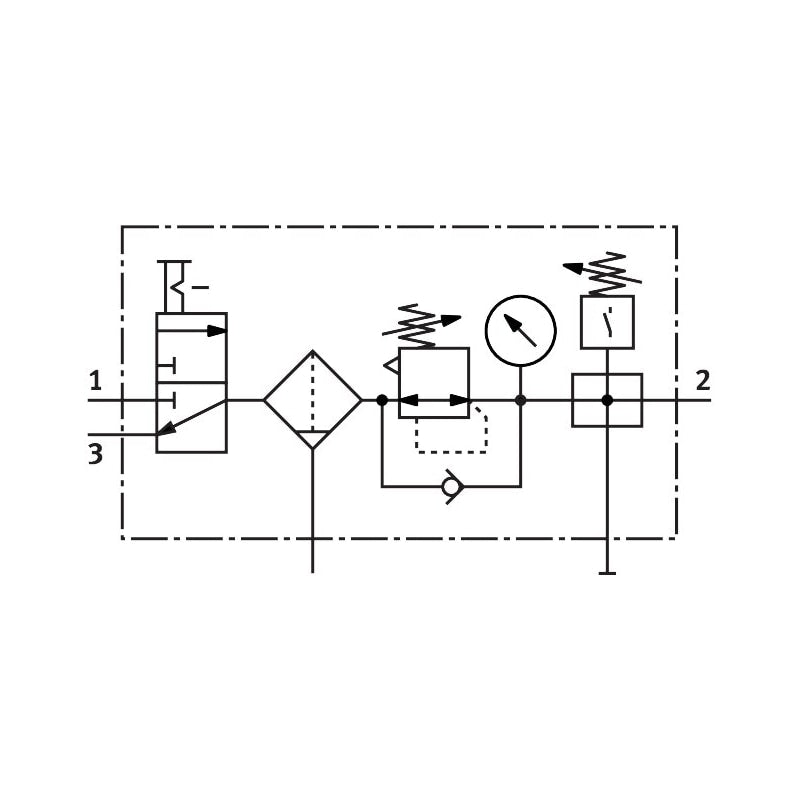

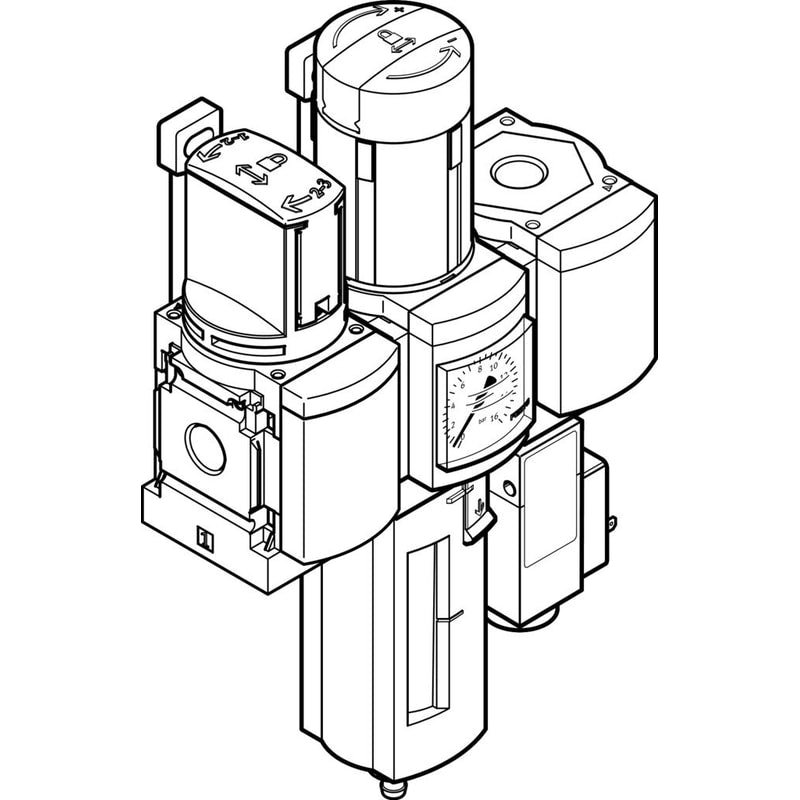

service unit combination MSB6N-1/2:C3J1F3-WP Consisting of manual on-off valve, filter regulator, branching module including pressure switch without indicator and wall mounting plate. 12 bar maximum output pressure, 40 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=40 µm
| Size | 6 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with lockwith accessories, lockable |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | manual rotary |
| Design structure | Branching moduleOn/off valveFilter regulator with pressure gauge |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow |
| Bowl guard | Plastic guard |
| Pressure gauge | with pressure gauge |
| Operating pressure | 4.5 ... 18 bar |
| Pressure regulation range | 4 ... 12 bar |
| Standard nominal flow rate | 4,500 l/min |
