Air preparation combination unit
MSB4N-1/4:C3J2M1D1A1F3-WP
543557
GTIN 4052568348311
Vendor Festo
- Pneumatic connection 1
- 1/4 NPT
- Normal nominal flow rate (normalized to DIN 1343)
- 600 l/min
- Pressure regulation range
- 4 bar - 12 bar
- Grade of filtration
- 40 µm
Regular price
$586.74
Unit price
Air preparation combination unit MSB4N-1/4:C3J2M1D1A1F3-WP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSB4N-1/4:C3J2M1D1A1F3-WP
Regular price
$586.74
Unit price
Air preparation combination unit MSB4N-1/4:C3J2M1D1A1F3-WP is backordered and will ship as soon as it is back in stock.

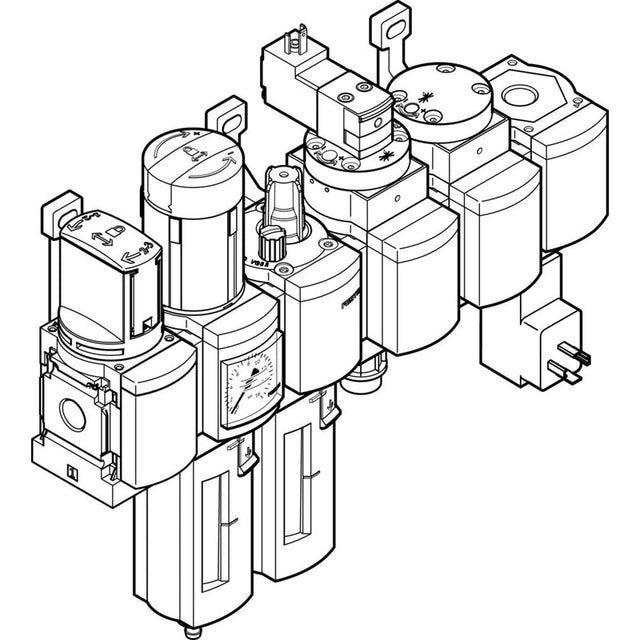

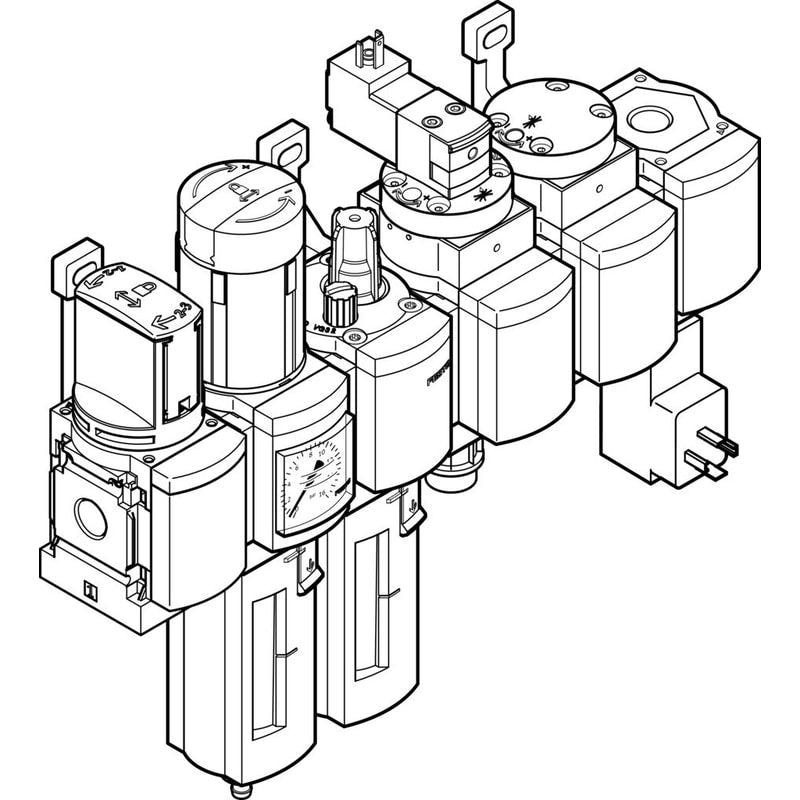

service unit combination MSB4N-1/4:C3J2M1D1A1F3-WP Comprising manual on-off valve, filter regulator, lubricator, electrical on-off valve, pneumatic soft-start valve, branching module with pressure switch without display, wall mounting plate. Maximum output pressure 12 bar, 40 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size=4, Series=MS, Actuator lock=Rotary knob with integrated lock, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm
| Size | 4 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with integrated lock |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | fully automatic |
| Design structure | Filter regulator with pressure gaugeproportional standard mist lubricator |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow |
| Bowl guard | Plastic guard |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1.5 ... 12 bar |
| Pressure regulation range | 4 ... 12 bar |
| Standard nominal flow rate | 600 l/min |
