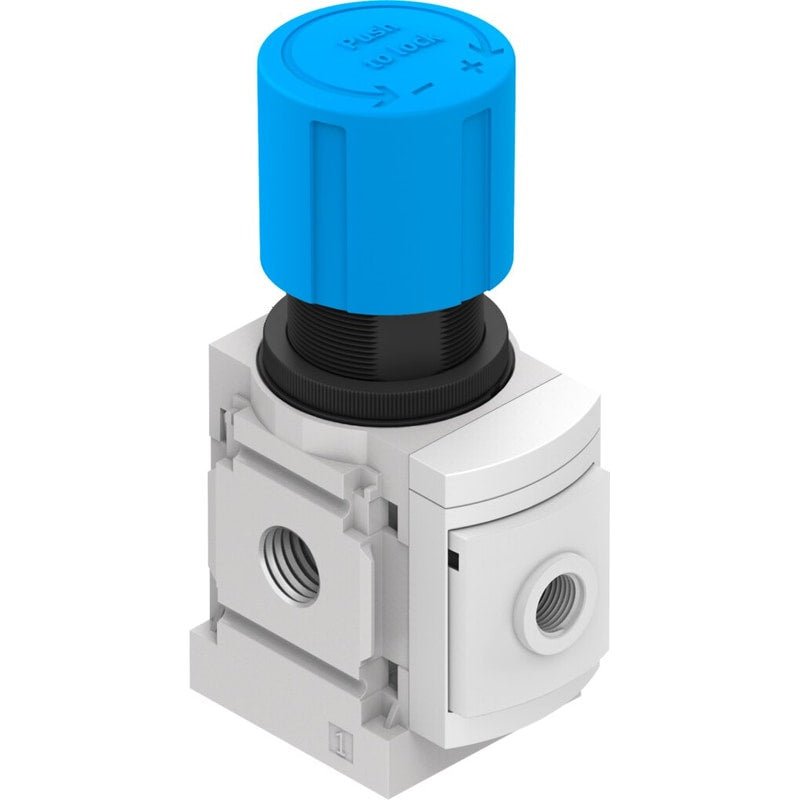

Pressure regulator
MS4-LR-1/8-D6-A8
543519
GTIN 4052568091477
Vendor Festo
- Pneumatic connection 1
- G1/8
- Normal nominal flow rate (normalized to DIN 1343)
- 1150 l/min
- Pressure regulation range
- 0.3 bar - 7 bar
- Max. pressure hysteresis
- 0.25 bar
Regular price
$41.91
Unit price
Pressure regulator MS4-LR-1/8-D6-A8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS4-LR-1/8-D6-A8
Regular price
$41.91
Unit price
Pressure regulator MS4-LR-1/8-D6-A8 is backordered and will ship as soon as it is back in stock.
pressure regulator MS4-LR-1/8-D6-A8 maximum output pressure 7 bar, without pressure gauge, flow direction from left to right. Size=4, Series=MS, Assembly position=Any, Design structure=directly-controlled diaphragm regulator, Controller function=(* Output pressure constant, * with secondary exhaust, * with return flow)
| product type | Pressure Regulator |
|---|---|
| Port Size | 1/8" Port Connection |
| pressure range | 0.3-7bar (4.3-101PSI) |
