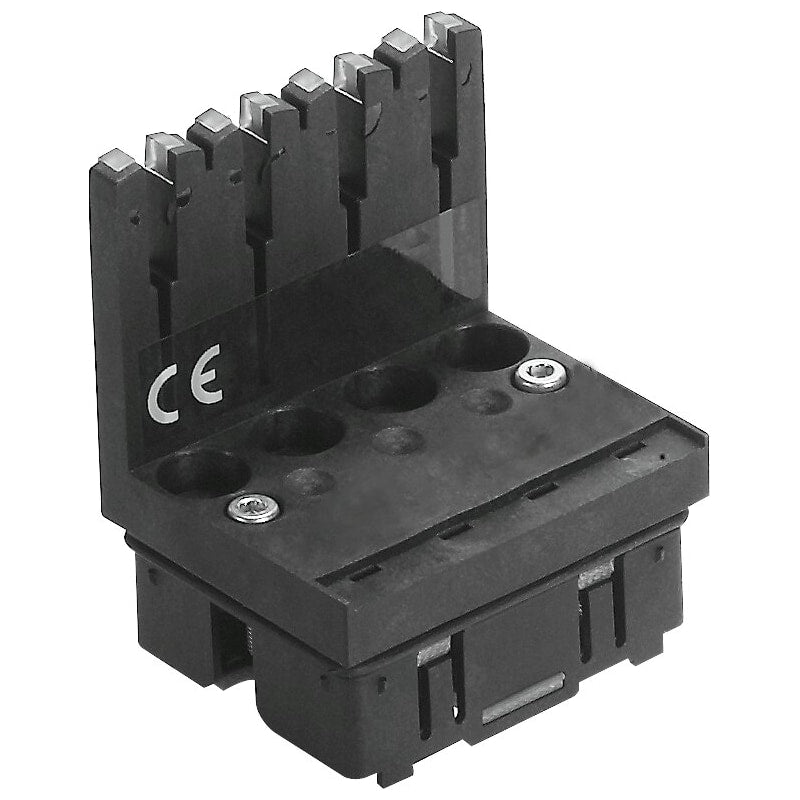

Electronics module
VMPA2-FB-EMS-D2-4
543332
GTIN 4052568181710
Vendor Festo
Regular price
$161.32
Unit price
VMPA2-FB-EMS-D2-4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA2-FB-EMS-D2-4
Regular price
$161.32
Unit price
VMPA2-FB-EMS-D2-4 is backordered and will ship as soon as it is back in stock.
electrical module VMPA2-FB-EMS-D2-4 Diagnosis=(* - Condition Monitoring, * - Wire break per solenoid coil, * - Short circuit of valves, * - Undervoltage of valves), Max. number of valve positions=2, Max. number of solenoid coils=4, Intrinsic current consumption at load voltage=3 mA, Intrinsic current consumption at operating voltage=8 mA
| Diagnosis | '- Condition Monitoring- Wire break per solenoid coil- Short circuit of valves- Undervoltage of valves |
|---|---|
| Max. number of valve positions | 2 |
| Max. number of solenoid coils | 4 |
| Intrinsic current consumption at load voltage | 3 mA |
| Intrinsic current consumption at operating voltage | 8 mA |
| Nominal breakaway current per solenoid coil | 99 mA up to 24 ms |
| Nominal current with current reduction | 18 mA after 24 ms |
| Corrosion resistance classification CRC | 1 - Low corrosion stress(when installed) |
| Product weight | 20 g |
| Material housing | POM |
| Materials note | Conforms to RoHS |
