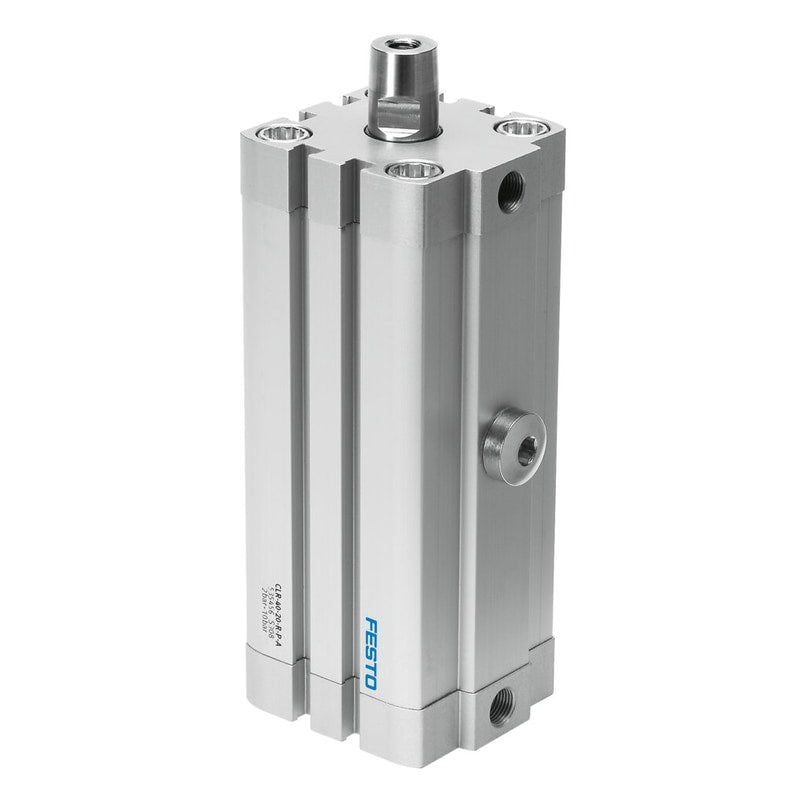

Swing clamp cylinder
CLR-32-10-L-P-A-B
543178
GTIN 4052568016104
Vendor Festo
- Piston diameter
- 32 mm
- Theoretical clamping force at 6 bar
- 362 N
- Clamping stroke
- 10 mm
- Swivel angle
- 90 deg +/- 2 deg
Regular price
$661.09
Unit price
CLR-32-10-L-P-A-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CLR-32-10-L-P-A-B
Regular price
$661.09
Unit price
CLR-32-10-L-P-A-B is backordered and will ship as soon as it is back in stock.
linear/swivel clamp CLR-32-10-L-P-A-B Clamping system with linear movement, standardised hole pattern to ISO 21287. Total stroke=28 mm, Piston diameter=32 mm, Piston rod thread=M8, Swivel angle=90 deg +/- 2 deg, Clamping stroke=10 mm
| Total stroke | 28 mm |
|---|---|
| Piston diameter | 32 mm |
| Piston rod thread | M8 |
| Swivel angle | 90 deg +/- 2 deg |
| Clamping stroke | 10 mm |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Design structure | PistonPiston rodCylinder barrel |
| Position detection | For proximity sensor |
| Swivel direction | Left |
| Operating pressure | 2 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
