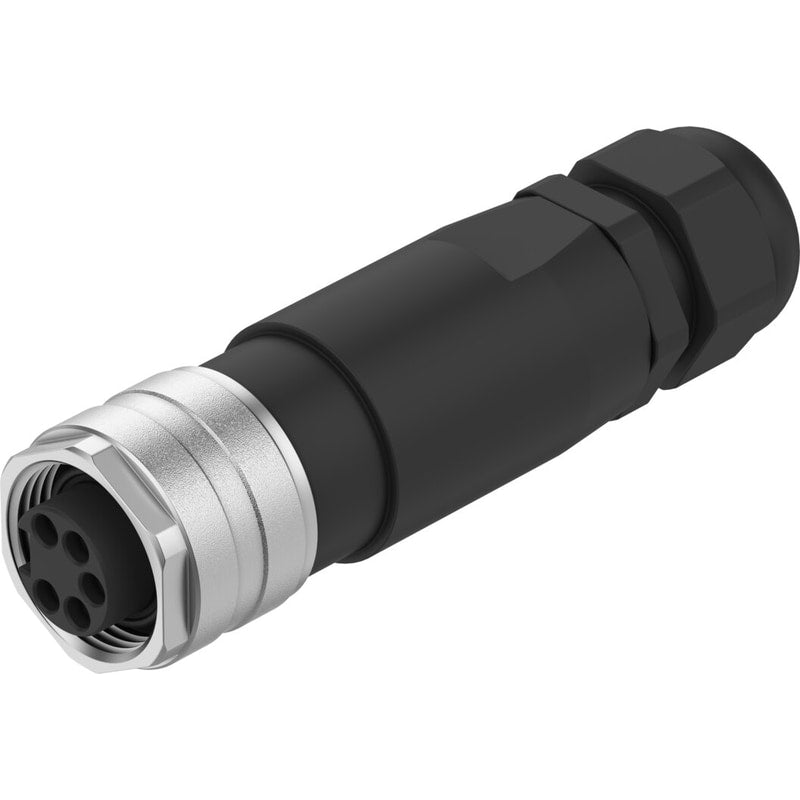

Power supply socket
NECU-G78G5-C2
543107
GTIN 4052568091231
Vendor Festo
- Connection cross section
- 1.5 mm²
- Degree of protection
- IP67
Regular price
$69.05
Unit price
NECU-G78G5-C2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NECU-G78G5-C2
Regular price
$69.05
Unit price
NECU-G78G5-C2 is backordered and will ship as soon as it is back in stock.
| Type code | NECU |
|---|---|
| Based on norm | EN 61984 |
| Certification | c CSA us (OL) |
| Electrical connection 1 | Straight socket, 7/8", 5-pin |
| Electrical connection 2 | Screw terminal |
| DC operating voltage range | 0 V ... 250 V |
| Operating voltage range AC | 0 V ... 250 V |
| Current rating | 0.333333333333333 |
| Surge resistance | 2.5 kV |
| Approved cable diameter | 6 mm ... 12 mm |
| Connection cross section | ≤ 1.5 mm² |
| Degree of protection | IP67 |
| Ambient temperature | -25 °C ... 80 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Note on materials | RoHS-compliantFree of copper and PTFE |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | PA |
| Housing colour | Black |
| Material of union nut | Nickel-platedDie-cast zinc |
| Seals material | NBRFPM |
| Material of pin contacts | Copper alloyGold-plated |
| Plug coding | NFPA/T3.5.29 R1-2003 |
