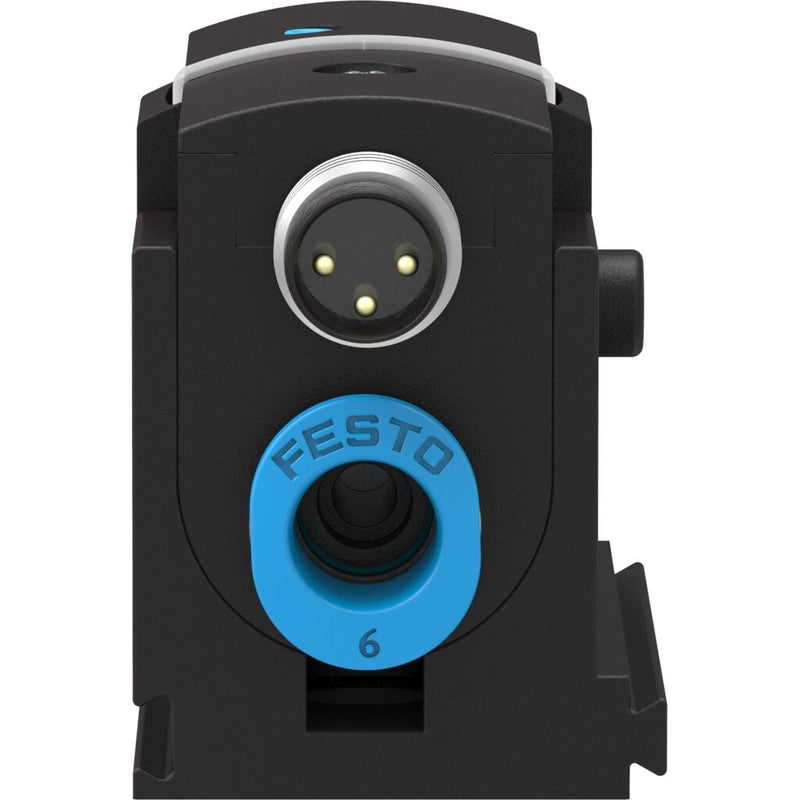

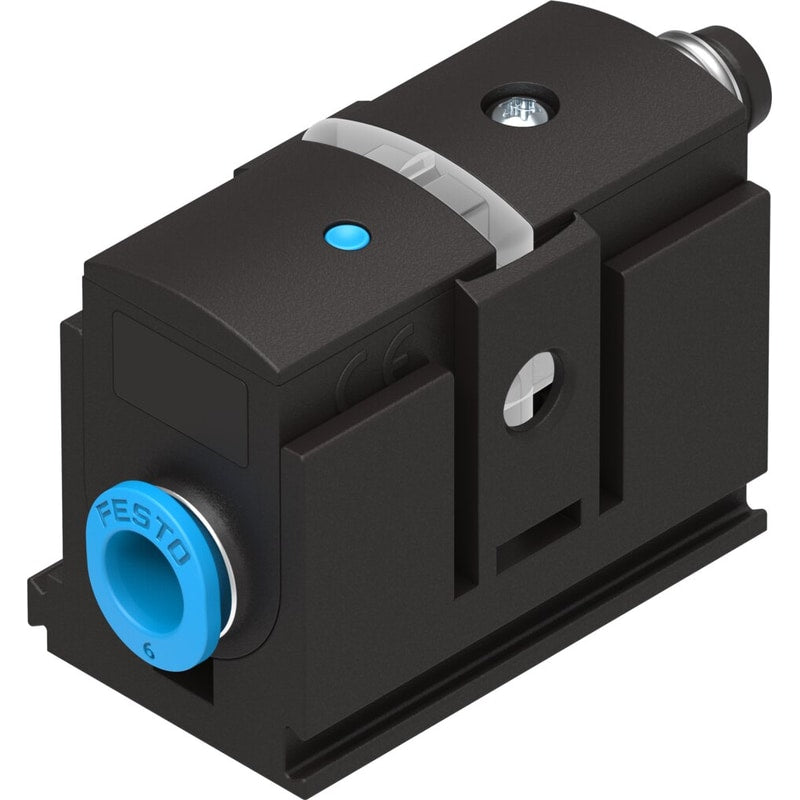

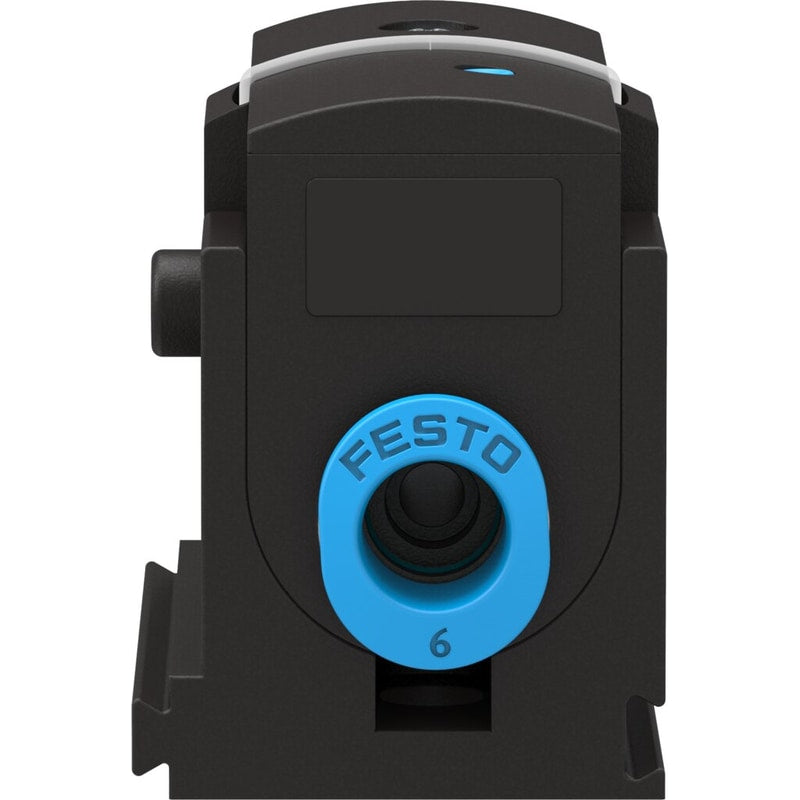

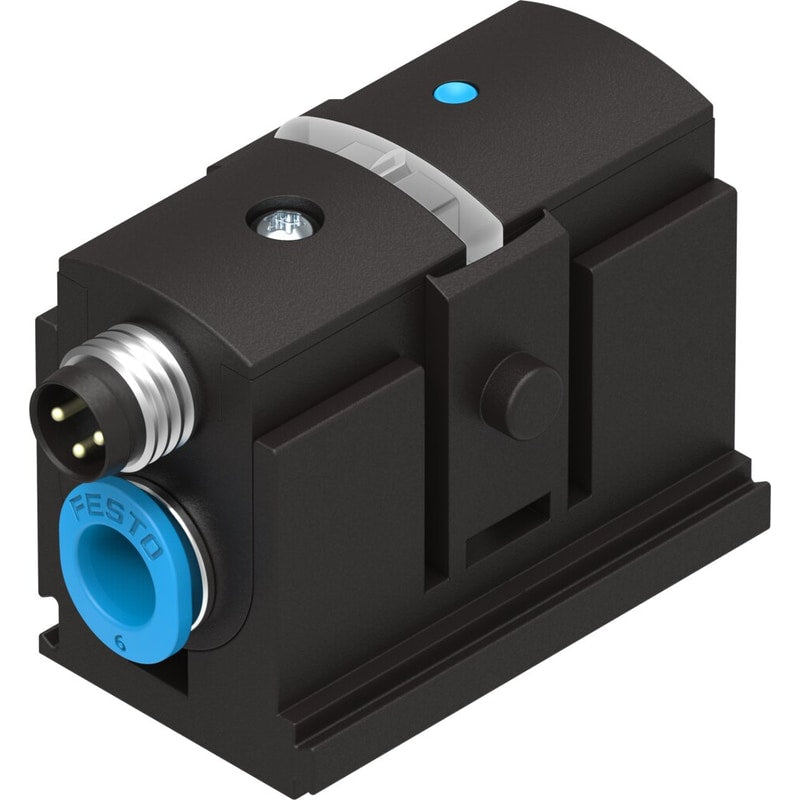

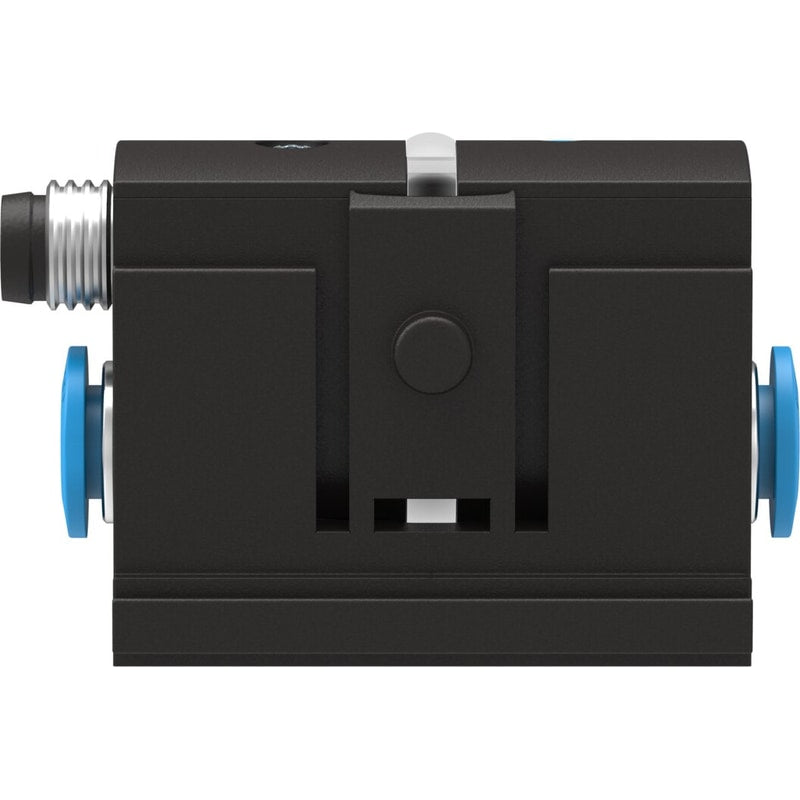

Pressure sensor
SDE5-V1-FP-Q6-P-M8
542887
GTIN 4052568180805
Vendor Festo
- Pressure measuring range initial value
- 0 bar
- Pressure measuring range end value
- -1 bar
- Switching element function
- Switchable
- Pneumatic connection
- QS-6
- Electrical connection
- M8x1 - Plug - as per EN 60947-5-2 - Round design
Regular price
$133.50
Unit price
SDE5-V1-FP-Q6-P-M8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SDE5-V1-FP-Q6-P-M8
Regular price
$133.50
Unit price
SDE5-V1-FP-Q6-P-M8 is backordered and will ship as soon as it is back in stock.
pressure sensor SDE5-V1-FP-Q6-P-M8 For vacuum with M8 plug version. Authorisation=(* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Conforms to RoHS, Measured variable=Relative pressure, Measurement method=Piezoresistive pressure sensor
| Authorisation | RCM Markc UL us - Recognized (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMCin accordance with EU RoHS directive |
| KC mark | KC-EMV |
| Materials note | Conforms to RoHS |
| Measured variable | Relative pressure |
| Measurement method | Piezoresistive pressure sensor |
| Pressure measuring range, initial value | 0 bar |
| Pressure measuring range, final value | '-1 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible |
| Medium temperature | 0 ... 50 °C |
| Ambient temperature | 0 ... 50 °C |
| Repetition accuracy in ± %FS | 0.3 %FS |
