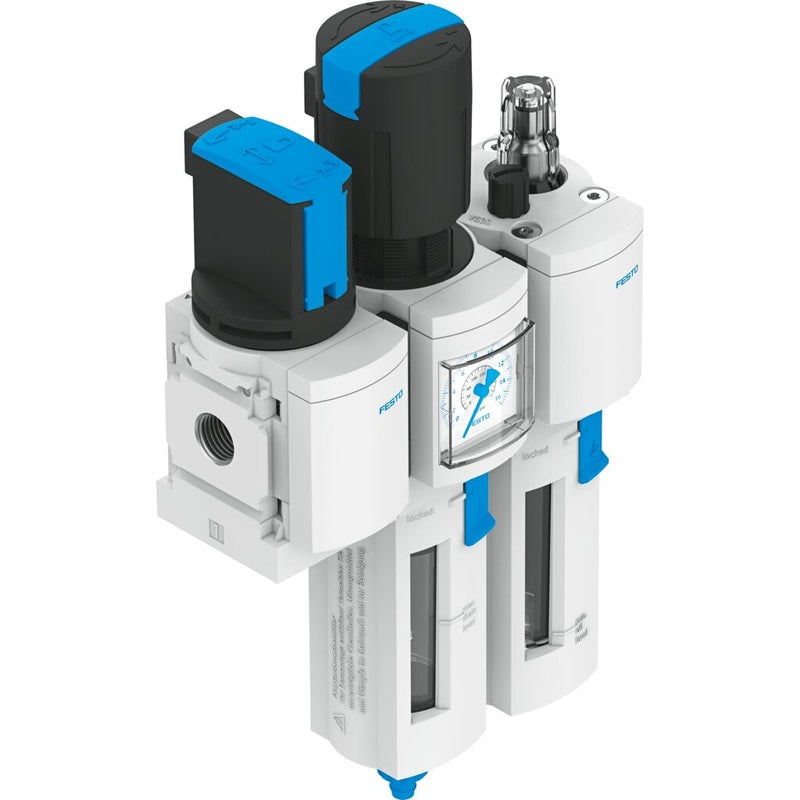

Air preparation combination unit
MSB4-1/4:C3J1M1-WP
542296
GTIN 4052568180409
Vendor Festo
- Pneumatic connection 1
- G1/4
- Normal nominal flow rate (normalized to DIN 1343)
- 750 l/min
- Pressure regulation range
- 1 bar - 12 bar
- Grade of filtration
- 40 µm
Regular price
$200.15
Unit price
Air preparation combination unit MSB4-1/4:C3J1M1-WP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSB4-1/4:C3J1M1-WP
Regular price
$200.15
Unit price
Air preparation combination unit MSB4-1/4:C3J1M1-WP is backordered and will ship as soon as it is back in stock.

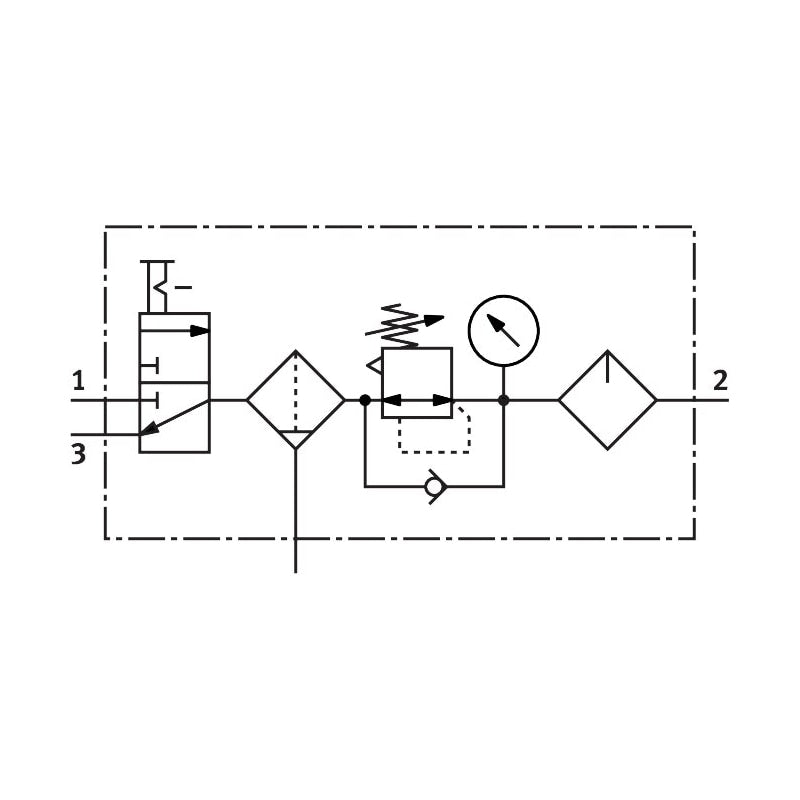

service unit combination MSB4-1/4:C3J1M1-WP Consisting of manual on-off valve, filter regulator, lubricator and wall mounting plate. 12 bar maximum output pressure, 40 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size=4, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=40 µm
| Size | 4 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with lockwith accessories, lockable |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | manual rotary |
| Design structure | On/off valveFilter regulator with pressure gaugeStandard oil-mist lubricator |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow |
| Bowl guard | Plastic guard |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1.5 ... 14 bar |
| Pressure regulation range | 1 ... 12 bar |
| Standard nominal flow rate | 750 l/min |
