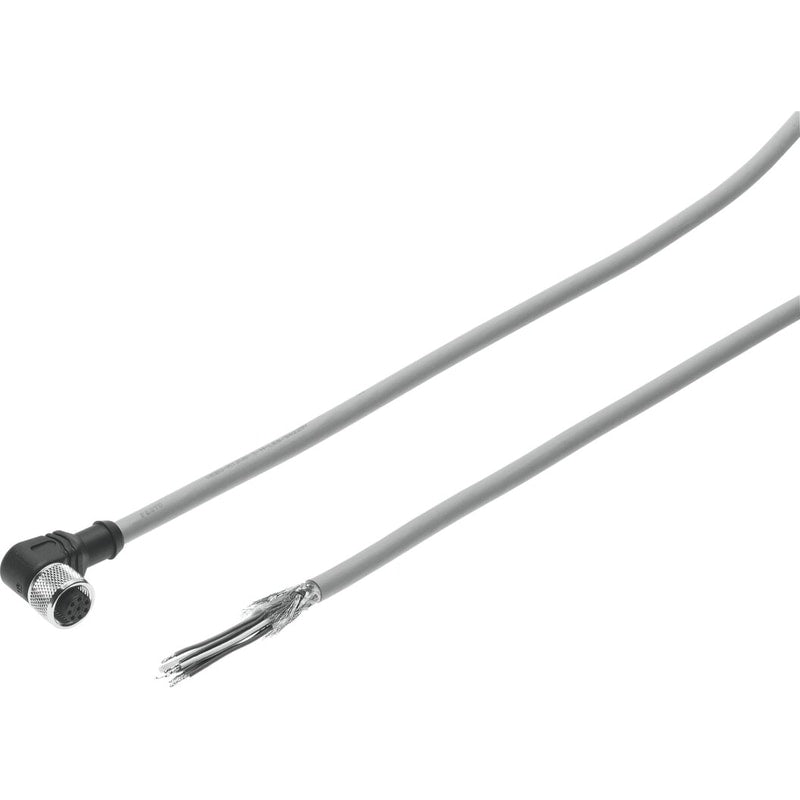

Plug socket with cable
NEBU-M12W8-K-5-N-LE8
542257
GTIN 4052568091132
Vendor Festo
Regular price
$88.44
Unit price
NEBU-M12W8-K-5-N-LE8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBU-M12W8-K-5-N-LE8
Regular price
$88.44
Unit price
NEBU-M12W8-K-5-N-LE8 is backordered and will ship as soon as it is back in stock.
| Type code | NEBU |
|---|---|
| Conforms to standard | EN 61076-2-101 |
| Cable designation | Without label holder |
| Product weight | 292 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 8 |
| Electrical connection 1, occupied pins/wires | 8 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 992265 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 8 |
| Electrical connection 2, occupied pins/wires | 8 |
| DC operating voltage range | 0 V ... 30 V |
| Operating voltage range AC | 0 V ... 30 V |
| Current rating at 40°C | 0.0833333333333333 |
| Surge resistance | 0.8 kV |
| Cable length | 5 m |
| Bending radius, fixed cable installation | ≥ 32 mm |
| Bending radius, flexible cable installation | ≥ 66 mm |
| Cable diameter | 6.3 mm |
| Cable diameter tolerance | ± 0.2 mm |
| Cable design | 8 x 0.25 mm²Shielded |
| Nominal conductor cross section | 0.25 mm² |
| Wire ends | Tin-plated |
| Degree of protection | IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -25 °C ... 80 °C |
| Ambient temperature with flexible cable installation | -5 °C ... 80 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray |
| Housing material | TPE-U(PUR) |
| Material of union nut | Brass, nickel-plated |
| Seals material | NBR |
| Material of pin contacts | Brass, gold-plated |
| Insulating sheath material | PP |
