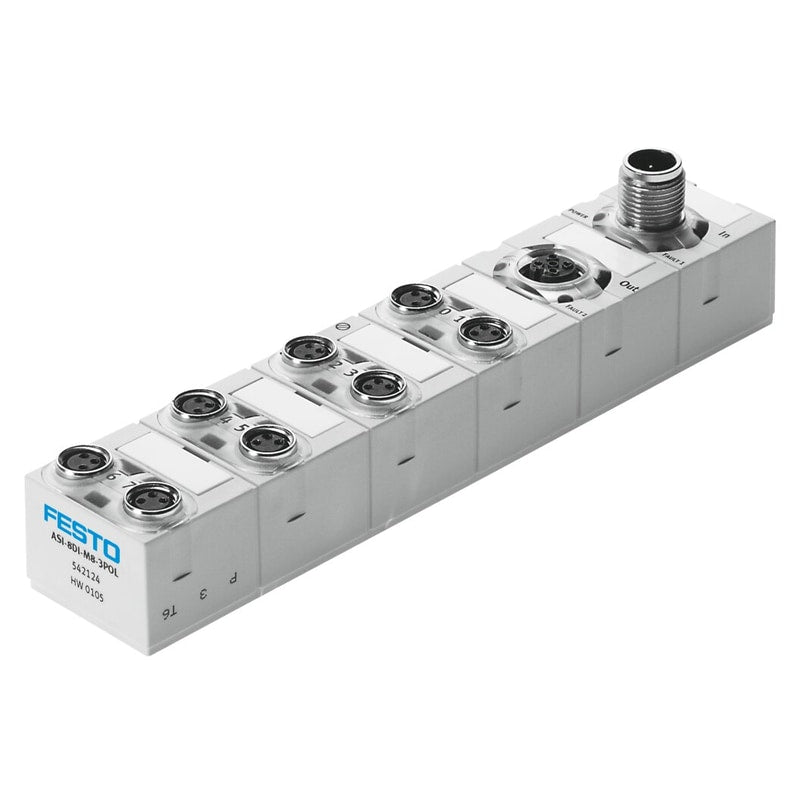

ASI-8DI-M8-3POL

AS-i module ASI-8DI-M8-3POL enables the connection of 8 sensors. ATEX category Gas=II 3G, Explosion ignition protection type Gas=Ex nA IIC T4 X Gc, ATEX category Dust=II 3D, Explosion ignition protection type Dust=Ex tc IIIC T115°C X Dc IP67, Explosion-proof ambient temperature=-5°C <= Ta <= +50°C

ATEX category Gas	II 3G
Explosion ignition protection type Gas	Ex nA IIC T4 X Gc
ATEX category Dust	II 3D
Explosion ignition protection type Dust	Ex tc IIIC T115°C X Dc IP67
Explosion-proof ambient temperature	'-5°C <= Ta <= +50°C
CE mark (see declaration of conformity)	to EU directive for EMCto EU directive explosion protection (ATEX)
Corrosion resistance classification CRC	1 - Low corrosion stress
Authorisation	c UL us - Listed (OL)
