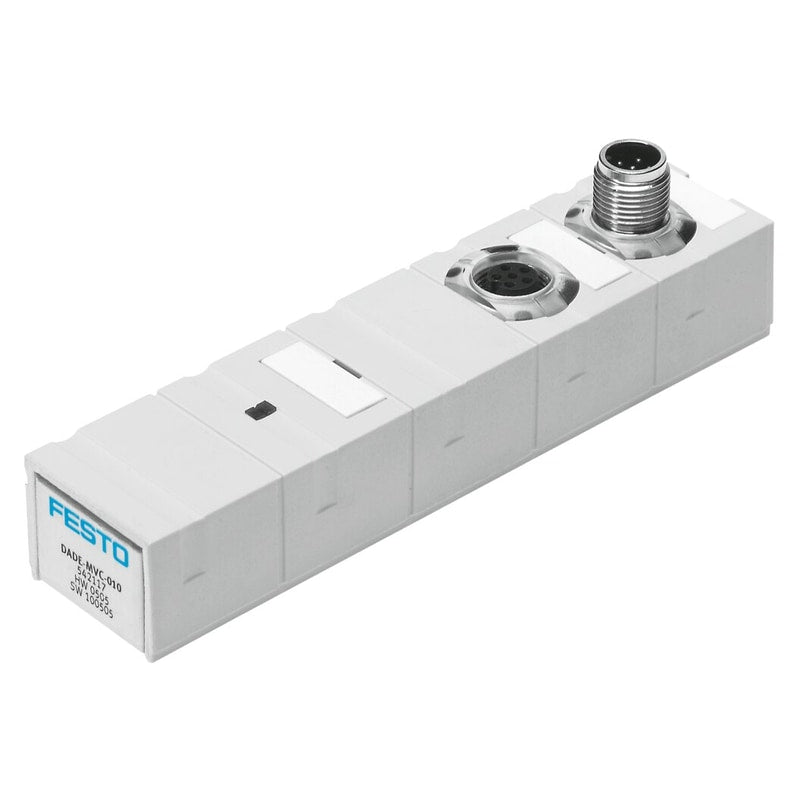

DADE-MVC-010
542117
Vendor Festo
Regular price
$595.01
Unit price
DADE-MVC-010 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DADE-MVC-010
Regular price
$595.01
Unit price
DADE-MVC-010 is backordered and will ship as soon as it is back in stock.
measured-value transducer DADE-MVC-010 converts the sensor signal from standard cylinders DNCI and DDPC into an analogue value. Diagnosis function=Display via LED, Assembly position=Any, Short circuit strength=Yes, Polarity protected=for SPS plug S1, Repetition accuracy=Min. ±0.1 mm
| Diagnosis function | Display via LED |
|---|---|
| Assembly position | Any |
| Short circuit strength | Yes |
| Polarity protected | for SPS plug S1 |
| Repetition accuracy | Min. ±0.1 mm |
| Analogue output | 0 - 10 Vaccording to EN 61131-2 |
| Power supply requirement | PELV |
| Debouncing time, inputs | 3 ms |
| Nominal operating voltage DC | 24 V |
| Power failure buffering for logic voltage | 10 ms |
| Residual ripple | 4 Vss |
| Current consumption at nominal operating voltage | 20 ... 30 mA |
| Permissible voltage fluctuation | '+/- 25 % |
