Intermediate position module
DADM-DGC-40-A
541702
GTIN 4052568179793
Vendor Festo
Regular price
$866.76
Unit price
DADM-DGC-40-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DADM-DGC-40-A
Regular price
$866.76
Unit price
DADM-DGC-40-A is backordered and will ship as soon as it is back in stock.

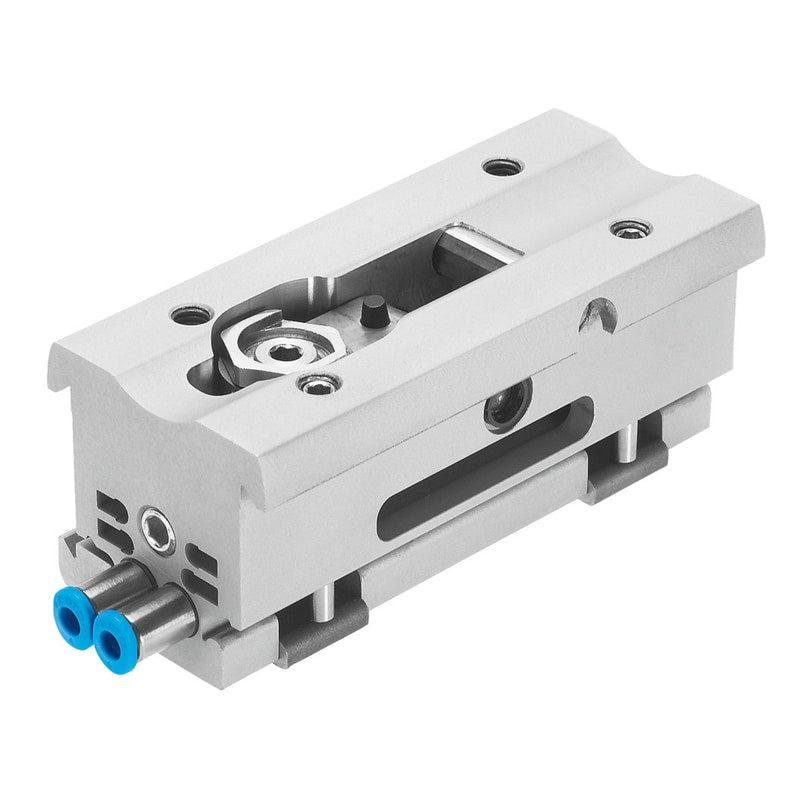

intermediate position module DADM-DGC-40-A suitable for linear drive DGC. Size=40, Assembly position=Any, Position detection=For proximity sensor, Operating pressure=2,5 - 8 bar, Max. impact speed=3 m/s
| Size | 40 |
|---|---|
| Assembly position | Any |
| Position detection | For proximity sensor |
| Operating pressure | 2.5 ... 8 bar |
| Max. impact speed | 3 m/s |
| Max. swivel time | 300 ms |
| Repetition accuracy | 0.02 mm |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Product weight | 970 g |
| Mounting type | Clamped to cylinder DGC |
| Pneumatic connection | M5 |
| Materials note | Free of copper and PTFEConforms to RoHS |
