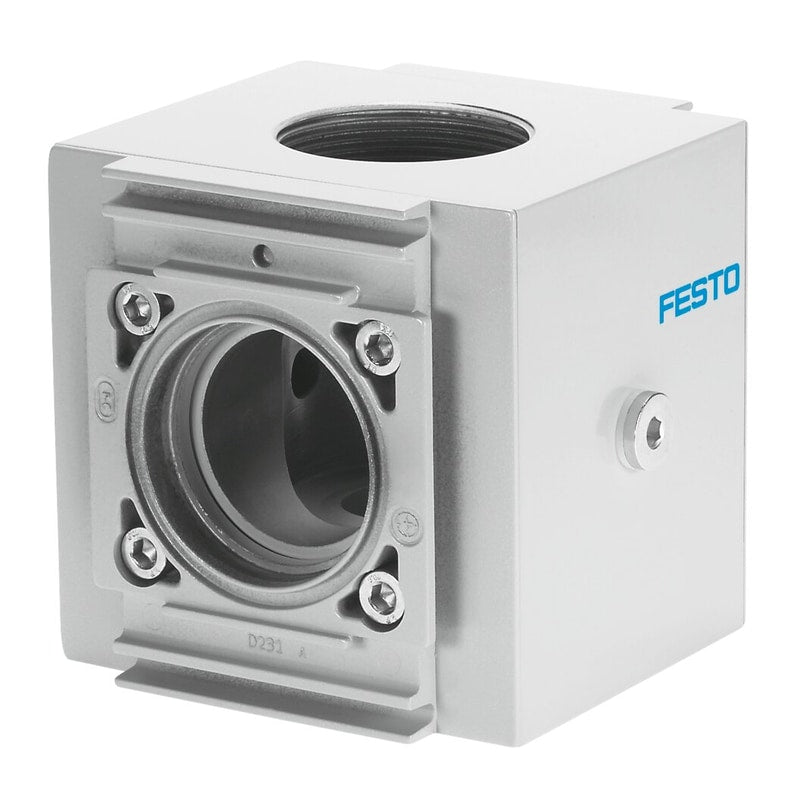

Branching module
MS12-FRM-G
541681
GTIN 4052568179755
Vendor Festo
- Pneumatic connection 1
- Battery module
- Standard nominal flow rate in main flow direction 1 -> 2
- 25000 l/min - 42000 l/min
- Operating pressure
- 0 bar - 20 bar
Regular price
$281.61
Unit price
Branching module MS12-FRM-G is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS12-FRM-G
Regular price
$281.61
Unit price
Branching module MS12-FRM-G is backordered and will ship as soon as it is back in stock.
branching module MS12-FRM-G To distribute compressed air without non-return function. Assembly position=Any, Design structure=Branching module, Operating pressure=0 - 20 bar, Standard nominal flow rate in main flow direction 1->2=25000 - 42000 l/min, Operating medium=Compressed air in accordance with ISO8573-1:2010 [-:-:-]
| Assembly position | Any |
|---|---|
| Design structure | Branching module |
| Operating pressure | 0 ... 20 bar |
| Standard nominal flow rate in main flow direction 1->2 | 25,000 ... 42,000 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
| Medium temperature | '-10 ... 60 °C |
| Ambient temperature | '-10 ... 60 °C |
| Product weight | 3,000 g |
| Pneumatic connection, port 1 | Manifold module |
| Pneumatic connection, port 2 | Manifold module |
| Pneumatic connection, port 3 | G2 |
