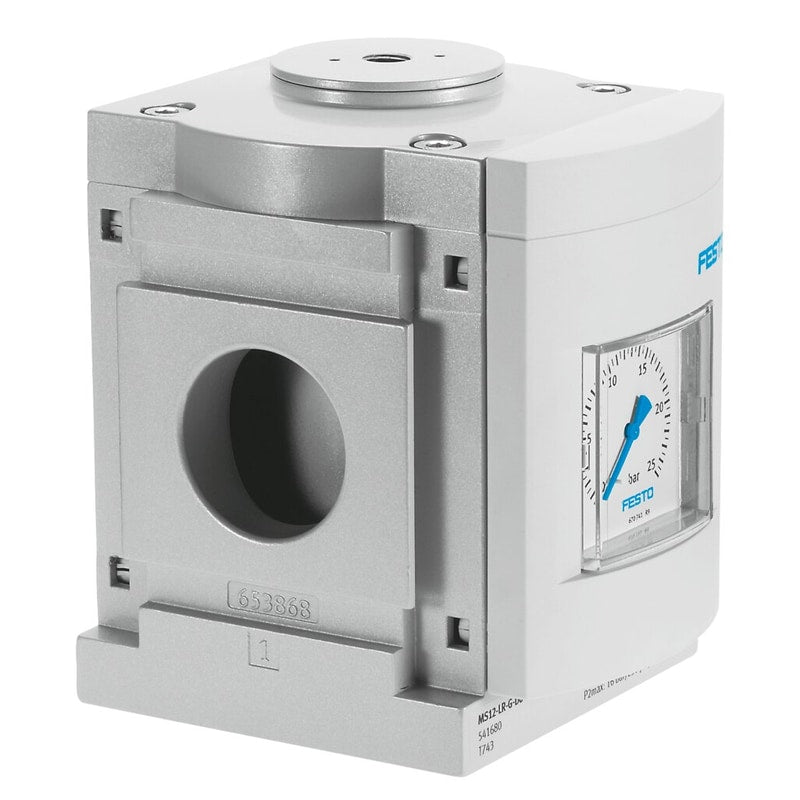

Pressure regulator
MS12-LR-G-PO
541680
GTIN 4052568179748
Vendor Festo
- Pneumatic connection 1
- Sub-base
- Normal nominal flow rate (normalized to DIN 1343)
- 13000 l/min - 22000 l/min
- Pressure regulation range
- 0.5 bar - 16 bar
- Max. pressure hysteresis
- 0.4 bar
Regular price
$392.19
Unit price
Pressure regulator MS12-LR-G-PO is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS12-LR-G-PO
Regular price
$392.19
Unit price
Pressure regulator MS12-LR-G-PO is backordered and will ship as soon as it is back in stock.
pressure regulator MS12-LR-G-PO To control pressure in pneumatic control circuits. Size=12, Series=MS, Assembly position=Any, Design structure=Diaphragm regulator, Controller function=(* Output pressure constant, * with initial pressure compensation, * with secondary exhaust, * with return flow)
| Size | 12 |
|---|---|
| Series | MS |
| Assembly position | Any |
| Design structure | Diaphragm regulator |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow |
| Pressure gauge | with pressure gauge |
| Operating pressure | 0.8 ... 21 bar |
| Pressure regulation range | 0.5 ... 16 bar |
| Max. pressure hysteresis | 0.4 bar |
| Flow rate, secondary venting | <= 600 l/min |
| Standard nominal flow rate | 13,000 ... 22,000 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
