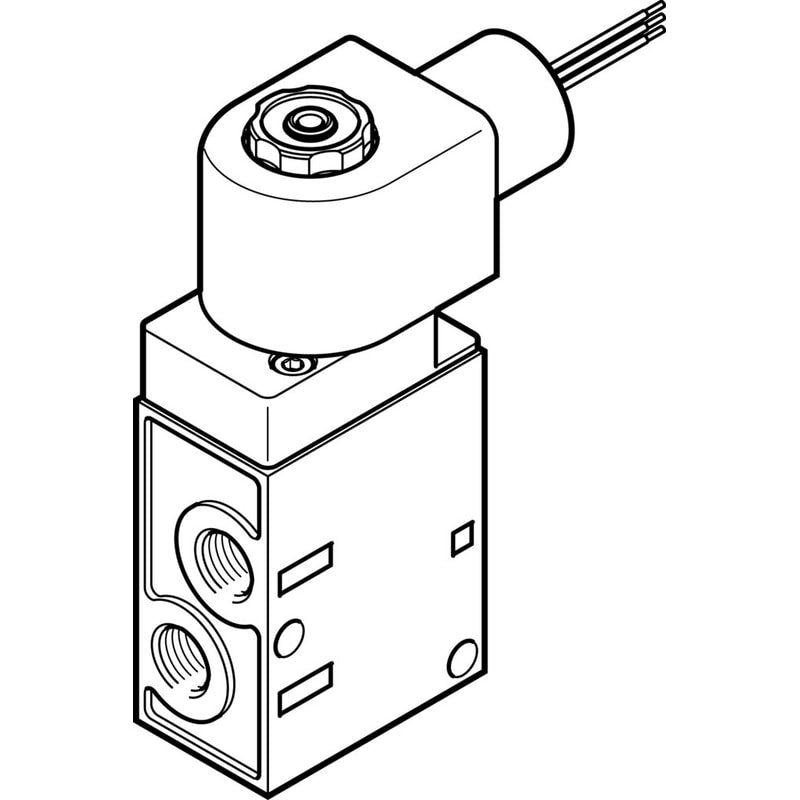

Air solenoid valve
MFH-3-1/4-24-EX
541657
GTIN 4052568347413
Vendor Festo
Regular price
$496.07
Unit price
MFH-3-1/4-24-EX is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MFH-3-1/4-24-EX
Regular price
$496.07
Unit price
MFH-3-1/4-24-EX is backordered and will ship as soon as it is back in stock.
solenoid valve MFH-3-1/4-24-EX Valve function=3/2 closed, monostable, Type of actuation=electrical, Width=73 mm, Standard nominal flow rate=800 l/min, Operating pressure=1,5 - 8 bar
| Valve function | 3/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 73 mm |
| Standard nominal flow rate | 800 l/min |
| Operating pressure | 1.5 ... 8 bar |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Nominal size | 5 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detenting |
| Type of piloting | Piloted |
