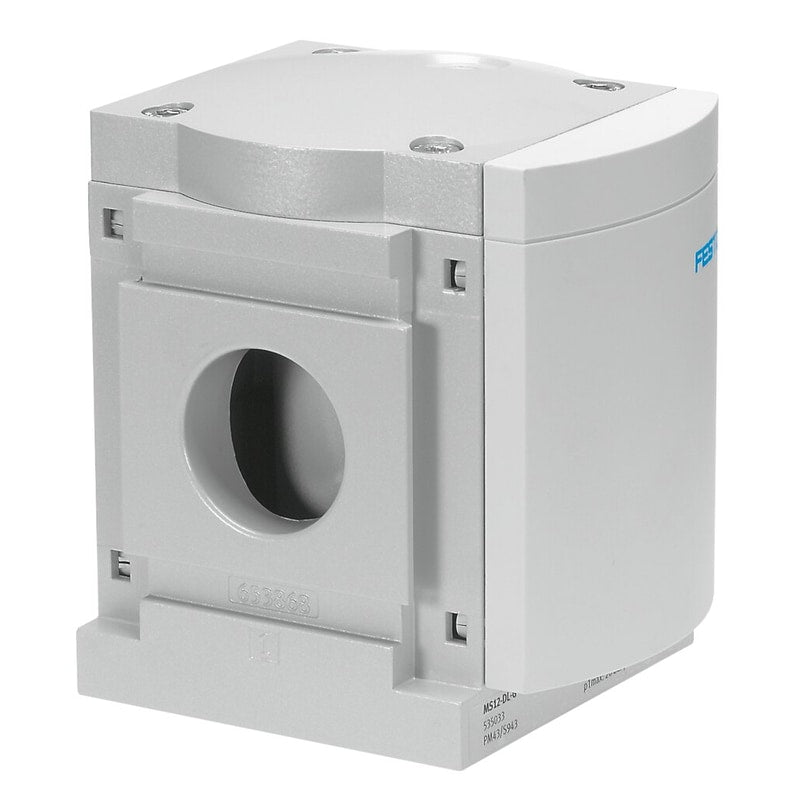

Soft-start valve
MS12-DL-G
541497
GTIN 4052568179694
Vendor Festo
- Pneumatic connection 1
- Battery module
- Normal nominal flow rate (normalized to DIN 1343)
- 25000 l/min - 42000 l/min
- Operating pressure
- 2 bar - 20 bar
- Actuation type
- Pneumatic
Regular price
$299.50
Unit price
Soft-start valve MS12-DL-G is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS12-DL-G
Regular price
$299.50
Unit price
Soft-start valve MS12-DL-G is backordered and will ship as soon as it is back in stock.
soft-start valve MS12-DL-G To slowly pressurise and exhaust pneumatic equipment Exhaust-air function=throttleable, Type of actuation=pneumatic, Assembly position=Any, Manual override=None, Design structure=Piston seat
| Exhaust-air function | throttleable |
|---|---|
| Type of actuation | pneumatic |
| Assembly position | Any |
| Manual override | None |
| Design structure | Piston seat |
| Type of reset | mechanical spring |
| Type of piloting | direct |
| Pilot air supply | Internal |
| Flow direction | non reversible |
| Valve function | 43498 |
| Operating pressure | 2 ... 20 bar |
| Standard nominal flow rate | 25,000 ... 42,000 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
