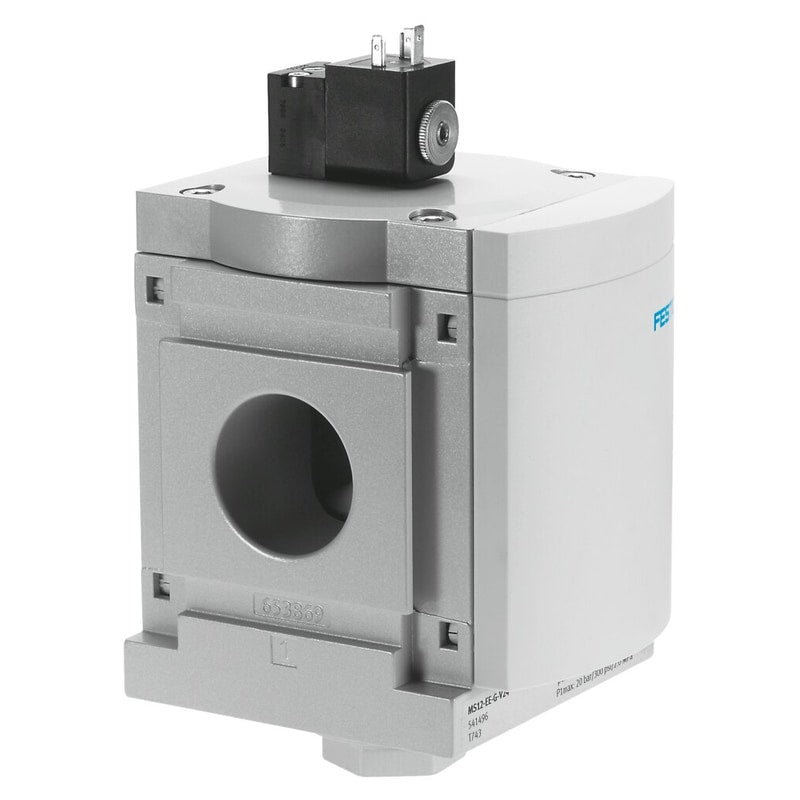

On/off valve
MS12-EE-G-V24
541496
GTIN 4052568179687
Vendor Festo
- Pneumatic connection 1
- Battery module
- Normal nominal flow rate (normalized to DIN 1343)
- 25000 l/min - 32000 l/min
- Operating pressure
- 3 bar - 16 bar
- Actuation type
- Electrical
Regular price
$411.30
Unit price
On/off valve MS12-EE-G-V24 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS12-EE-G-V24
Regular price
$411.30
Unit price
On/off valve MS12-EE-G-V24 is backordered and will ship as soon as it is back in stock.
on-off valve MS12-EE-G-V24 Electrical for pressurising and exhausting pneumatic equipment. Design structure=Piston slide, Type of actuation=electrical, Exhaust-air function=not throttleable, Manual override=(* detenting, * Pushing), Type of reset=mechanical spring
| Design structure | Piston slide |
|---|---|
| Type of actuation | electrical |
| Exhaust-air function | not throttleable |
| Manual override | detentingPushing |
| Type of reset | mechanical spring |
| Type of piloting | Piloted |
| Valve function | 3/2 closed, monostable |
| Operating pressure | 3 ... 16 bar |
| Standard nominal flow rate | 25,000 ... 32,000 l/min |
| Duty cycle | 1 |
| Characteristic coil data | 24 V DC: 4.5 W |
| Permissible voltage fluctuation | '+/- 10 % |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
