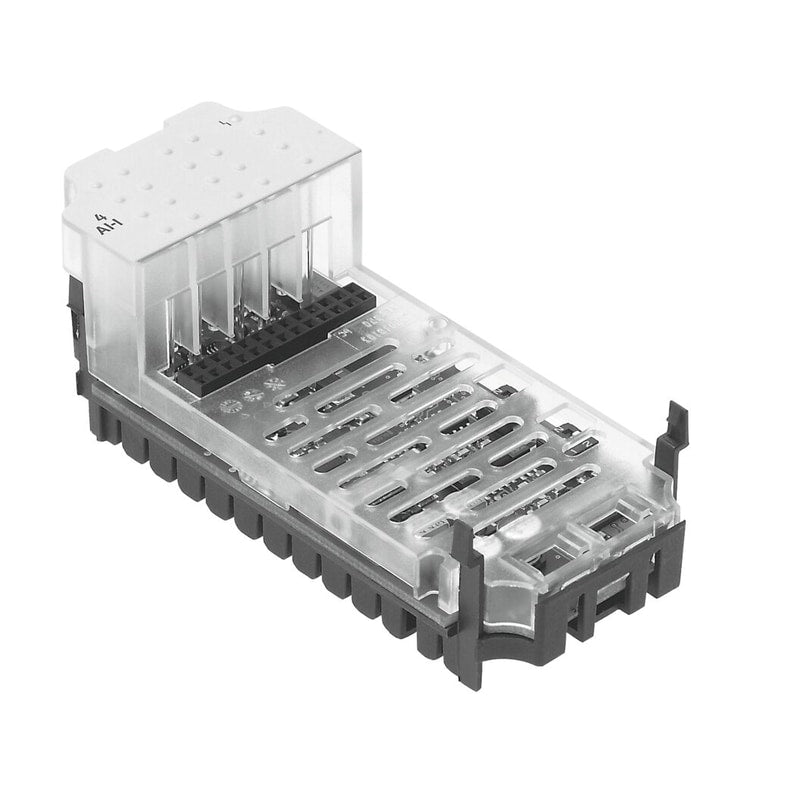

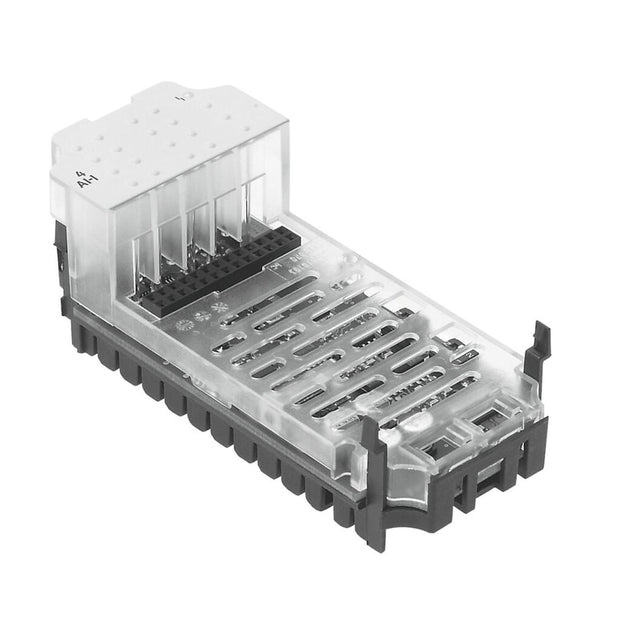

CPX-4AE-I

analogue module CPX-4AE-I for modular electrical terminal CPX. For sensor signals for pressure, flow rate and distances with current output in a signal range of 4...20 mA. Dimensions W x L x H=(* (incl. interlinking block and connection technology), * 50 mm x 107 mm x 50 mm), No. of inputs=4, Diagnosis=(* - Wire break per channel, * - Limit value violation per channel, * - Short circuit input signal, * - Parameterisation error), Parameters configuring=(* - Data format, * Forces per channel, * - Limit monitoring/channel, * - Measured value smoothing, * - Signal range per channel, * - Behaviour after short circuit, * Monitoring of wire break/channel), LED displays=- 1 Group diagnosis

Dimensions W x L x H	(incl. interlinking block and connection technology)50 mm x 107 mm x 50 mm
No. of inputs	4
Diagnosis	'- Wire break per channel- Limit value violation per channel- Short circuit input signal- Parameterisation error
Parameters configuring	'- Data formatForces per channel- Limit monitoring/channel- Measured value smoothing- Signal range per channel- Behaviour after short circuitMonitoring of wire break/channel
LED displays	'- 1 Group diagnosis
Internal cycle time	10 ms
Repetition accuracy	0.15% at 25º C
Protection (short circuit)	Internal electronic fuse
Operating voltage range DC	18 ... 30 V
Intrinsic current consumption at operating voltage	Typically 50 mA
Operating error limit related to the ambient temperature range	'+/- 0,6 %
Basic error limit at 25°C	'+/- 0,5 %
Nominal operating voltage DC	24 V
