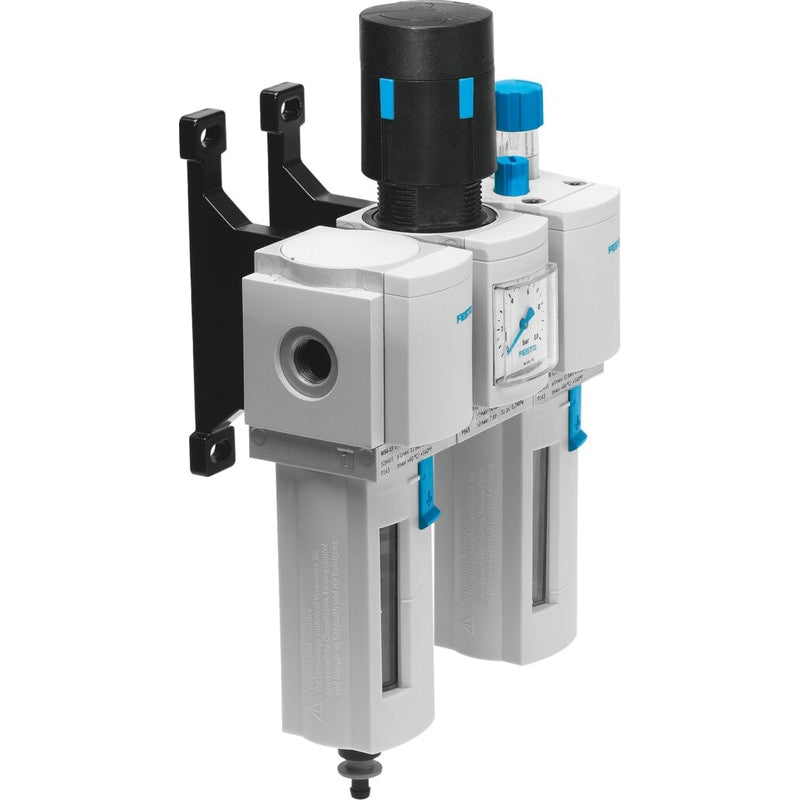

Air preparation combination unit
MSB6N-1/2:H3N3M1-WP
541469
GTIN 4052568347116
Vendor Festo
- Pneumatic connection 1
- 1/2 NPT
- Normal nominal flow rate (normalized to DIN 1343)
- 4400 l/min
- Pressure regulation range
- 1 bar - 12 bar
- Grade of filtration
- 5 µm
Regular price
$228.04
Unit price
Air preparation combination unit MSB6N-1/2:H3N3M1-WP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSB6N-1/2:H3N3M1-WP
Regular price
$228.04
Unit price
Air preparation combination unit MSB6N-1/2:H3N3M1-WP is backordered and will ship as soon as it is back in stock.

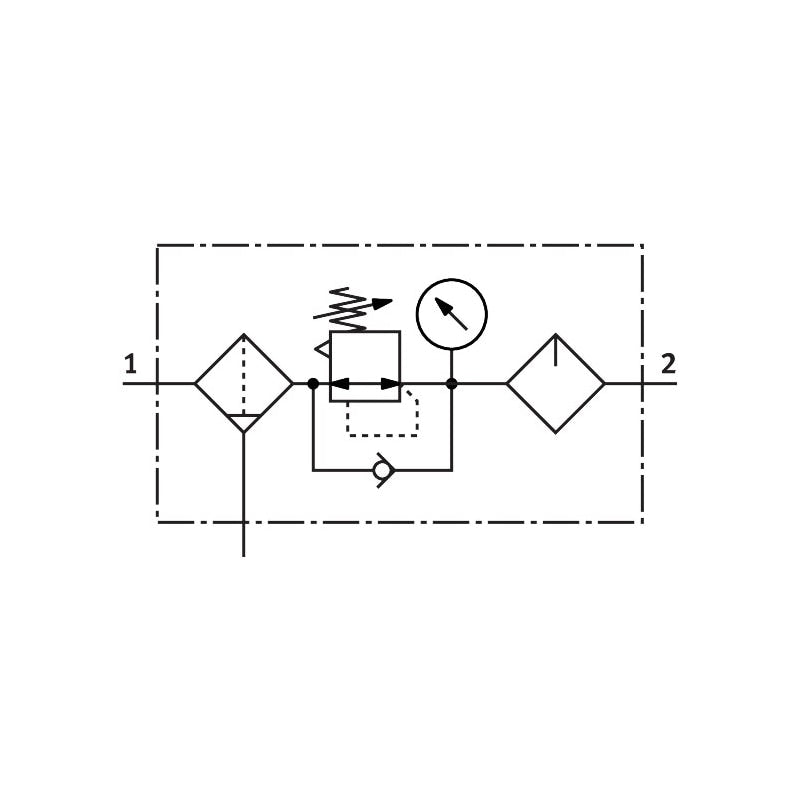

service unit combination MSB6N-1/2:H3N3M1-WP Consisting of filter, pressure regulator, lubricator and wall mounting plate. 12 bar maximum output pressure, 5 µm filter, with pressure gauge, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=5 µm
| Size | 6 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with lockwith accessories, lockable |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | manual rotary |
| Design structure | Pressure regulator with gaugeStandard filterStandard oil-mist lubricator |
| Bowl guard | Plastic guard |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1.5 ... 18 bar |
| Pressure regulation range | 1 ... 12 bar |
| Standard nominal flow rate | 4,400 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:4:-]Inert gases |
