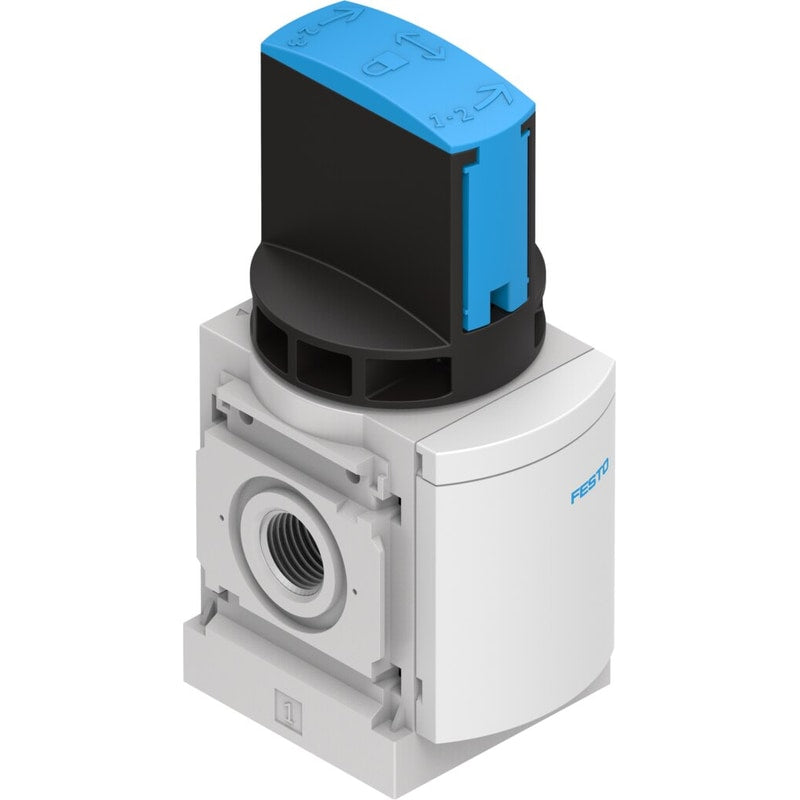

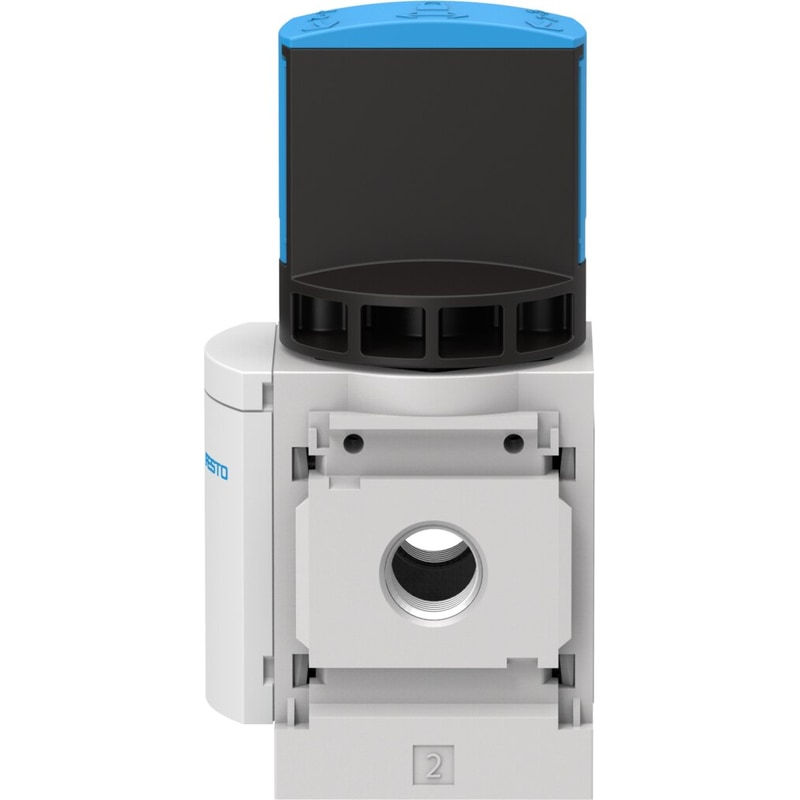

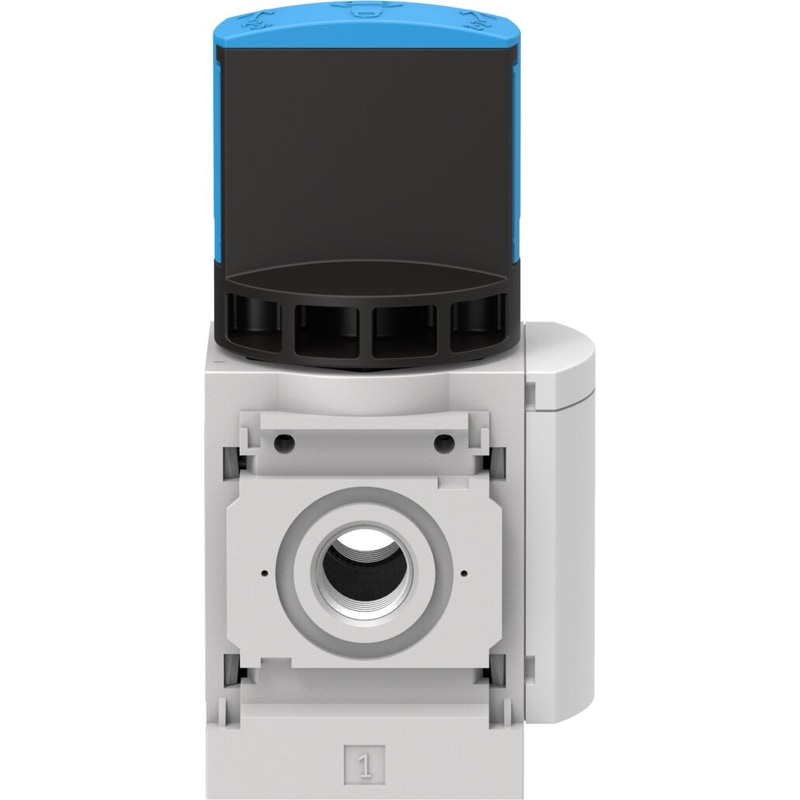

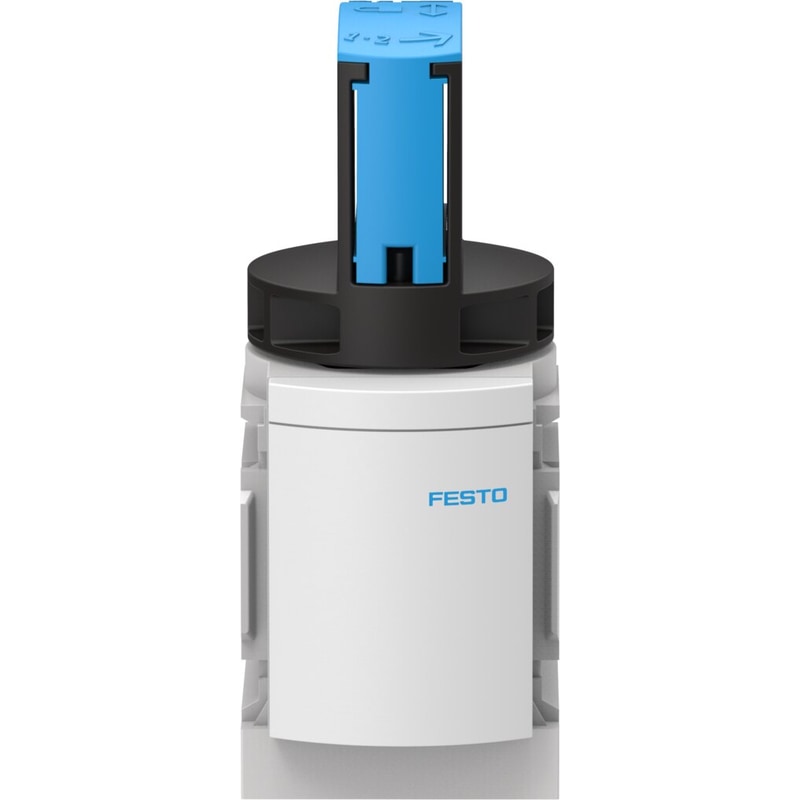

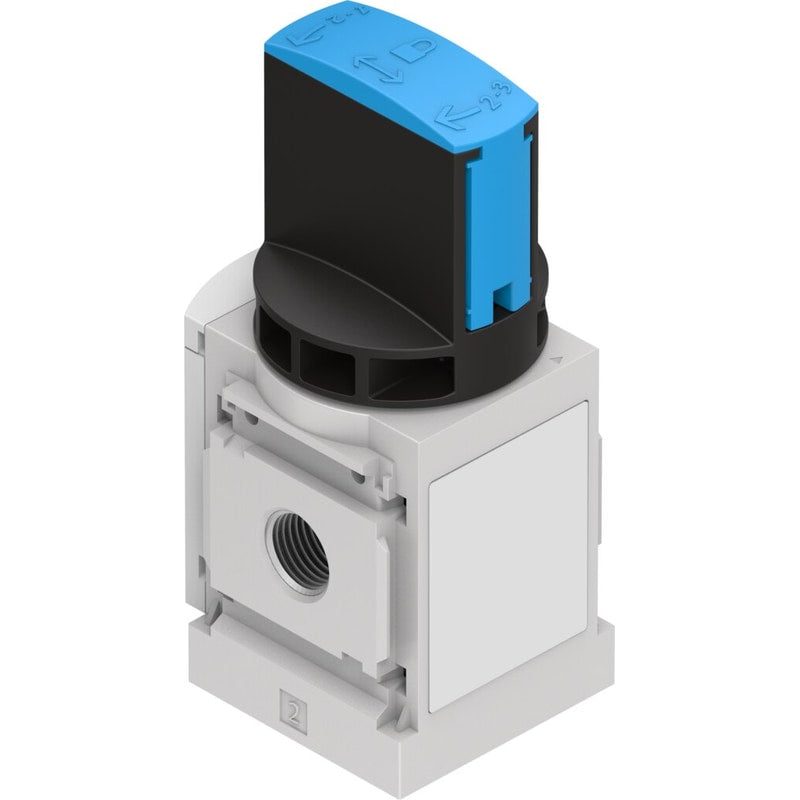

On/off valve
MS6-EM1-1/2
541267
GTIN 4052568090784
Vendor Festo
- Pneumatic connection 1
- G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 8700 l/min
- Operating pressure
- 0 bar - 18 bar
- Actuation type
- Manual
Regular price
$59.77
Unit price
On/off valve MS6-EM1-1/2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6-EM1-1/2
Regular price
$59.77
Unit price
On/off valve MS6-EM1-1/2 is backordered and will ship as soon as it is back in stock.
on-off valve MS6-EM1-1/2 Manual, direction of flow: from left to right. Design structure=Rotary slide valve, Type of actuation=manual, Exhaust-air function=not throttleable, Type of piloting=direct, Valve function=3/2 bistable
| Design structure | Rotary slide valve |
|---|---|
| Type of actuation | manual |
| Exhaust-air function | not throttleable |
| Type of piloting | direct |
| Valve function | 3/2 bistable |
| Operating pressure | 0 ... 18 bar |
| C value | 30.8 l/sbar |
| b value | 0.57 |
| Standard nominal flow rate | 8,700 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Materials note | Free of copper and PTFEConforms to RoHS |
