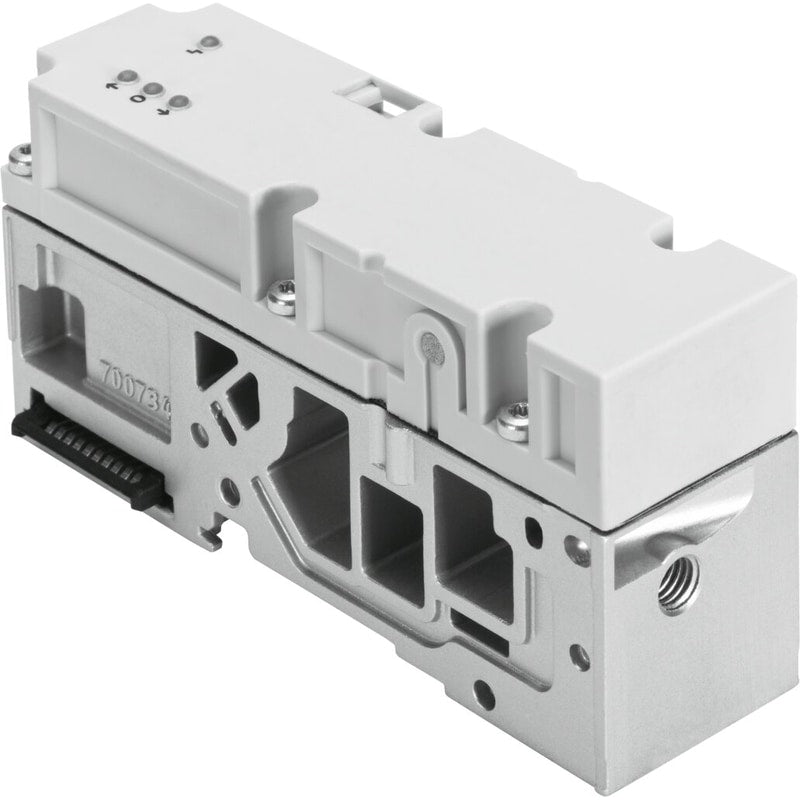

Pressure sensor
VMPA-FB-PS-P1
541087
GTIN 4052568179571
Vendor Festo
Regular price
$371.55
Unit price
VMPA-FB-PS-P1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA-FB-PS-P1
Regular price
$371.55
Unit price
VMPA-FB-PS-P1 is backordered and will ship as soon as it is back in stock.
pressure sensor VMPA-FB-PS-P1 Authorisation=c UL us - Recognized (OL), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Conforms to RoHS, Measured variable=Relative pressure, Measurement method=Piezoresistive pressure sensor with display
| Authorisation | c UL us - Recognized (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Conforms to RoHS |
| Measured variable | Relative pressure |
| Measurement method | Piezoresistive pressure sensor with display |
| Pressure measuring range | 0 ... 10 bar |
| Pressure measuring range, initial value | 0 bar |
| Pressure measuring range, final value | 10 bar |
| Medium temperature | '-5 ... 50 °C |
| Ambient temperature | '-5 ... 50 °C |
| Resolution pressure | 0.001 bar |
| Accuracy, FS | 2.5 %FS |
| Operating voltage range DC | 18 ... 30 V |
