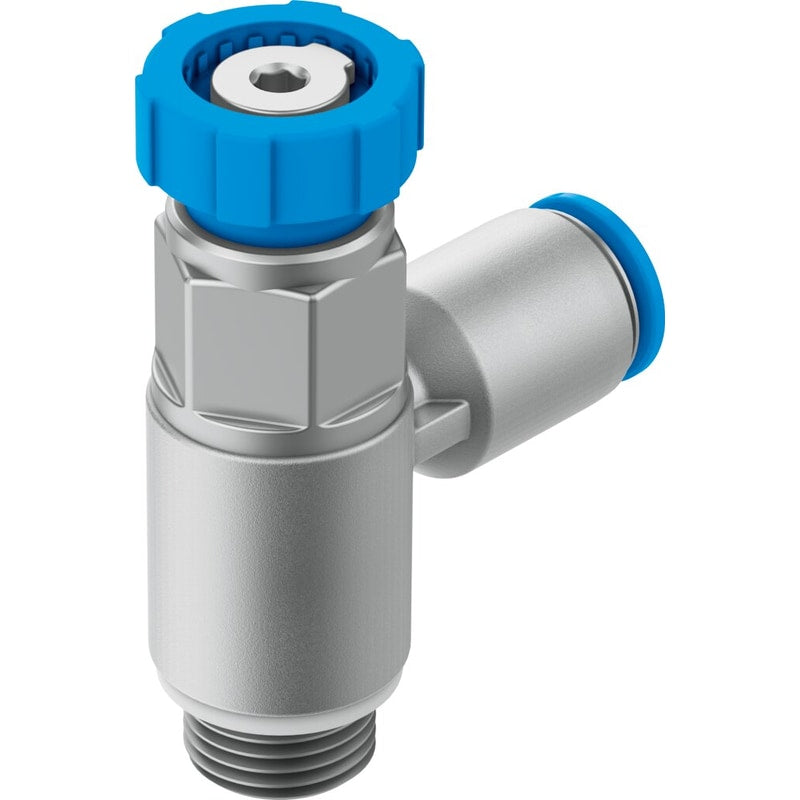

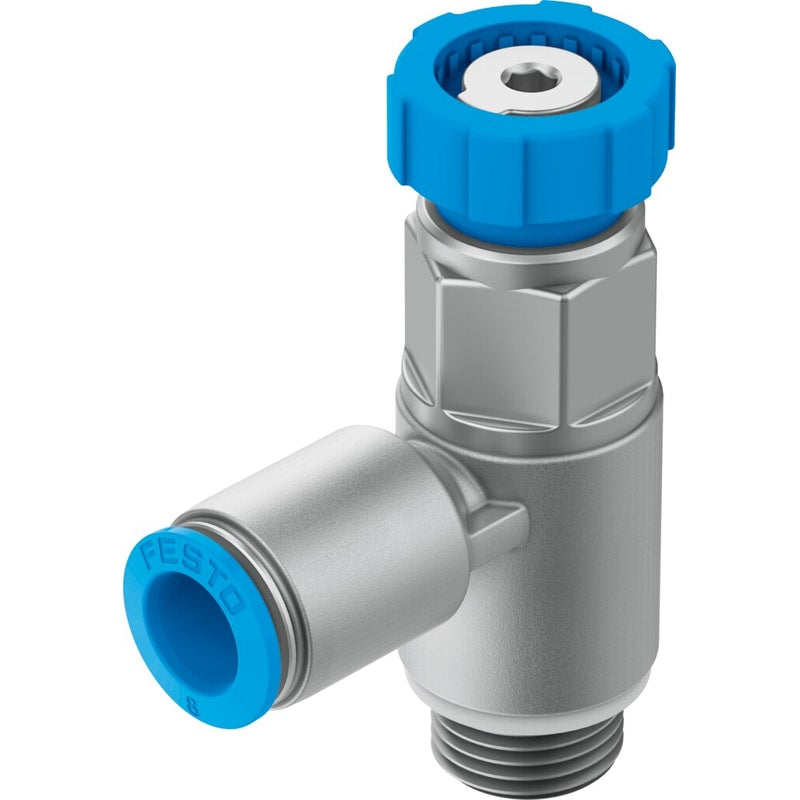

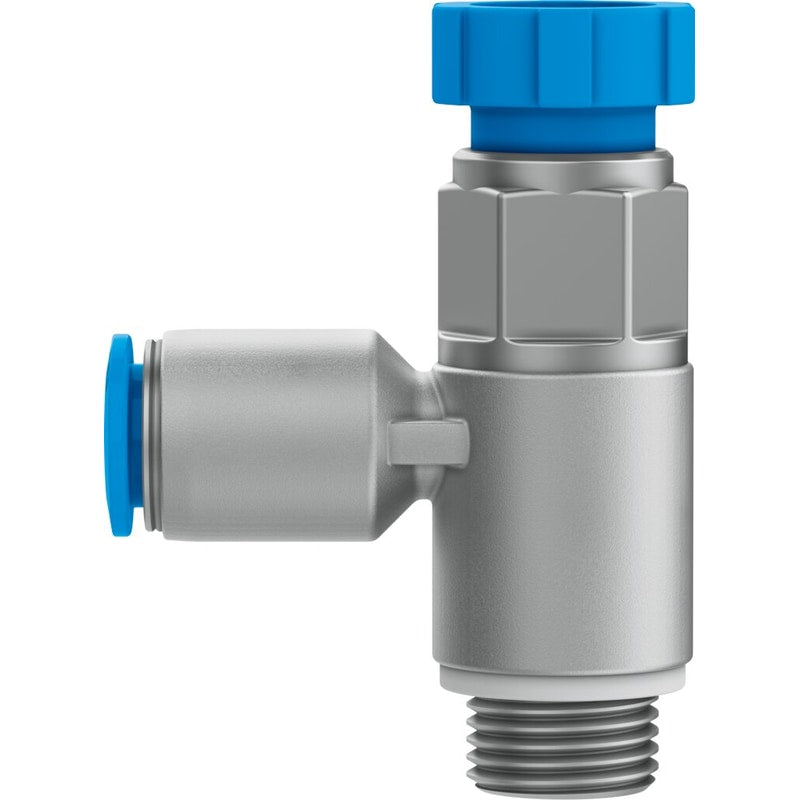

One-way flow control valve
GRLSA-1/4-QS-8
540662
GTIN 4052568090494
Vendor Festo
- Valve function
- Exhaust air flow control non-return function
- Standard nominal flow rate in flow control direction
- 0 l/min - 450 l/min
- Pneumatic connection 1
- QS-8
- Adjusting element
- Internal hexagon
Regular price
$62.21
Unit price
GRLSA-1/4-QS-8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GRLSA-1/4-QS-8
Regular price
$62.21
Unit price
GRLSA-1/4-QS-8 is backordered and will ship as soon as it is back in stock.
one-way flow control valve GRLSA-1/4-QS-8 Valve function=One-way flow control function for exhaust air, Pneumatic connection, port 1=QS-8, Pneumatic connection, port 2=G1/4, Type of actuation=manual, Adjusting element=Internal hex
| Valve function | One-way flow control function for exhaust air |
|---|---|
| Pneumatic connection, port 1 | QS-8 |
| Pneumatic connection, port 2 | G1/4 |
| Type of actuation | manual |
| Adjusting element | Internal hex |
| Mounting type | Threaded |
| Standard nominal flow rate in flow control direction | 0 ... 450 l/min |
| Standard nominal flow rate in non-return direction | 390 ... 570 l/min |
| Ambient temperature | '-10 ... 60 °C |
| Assembly position | Any |
| Operating pressure complete temperature range | 0.2 ... 10 bar |
| Standard flow rate in direction of flow control: 6 -> 0 bar | 0 ... 700 l/min |
| Standard flow rate in blocked direction: 6 -> 0 bar | 820 ... 930 l/min |
