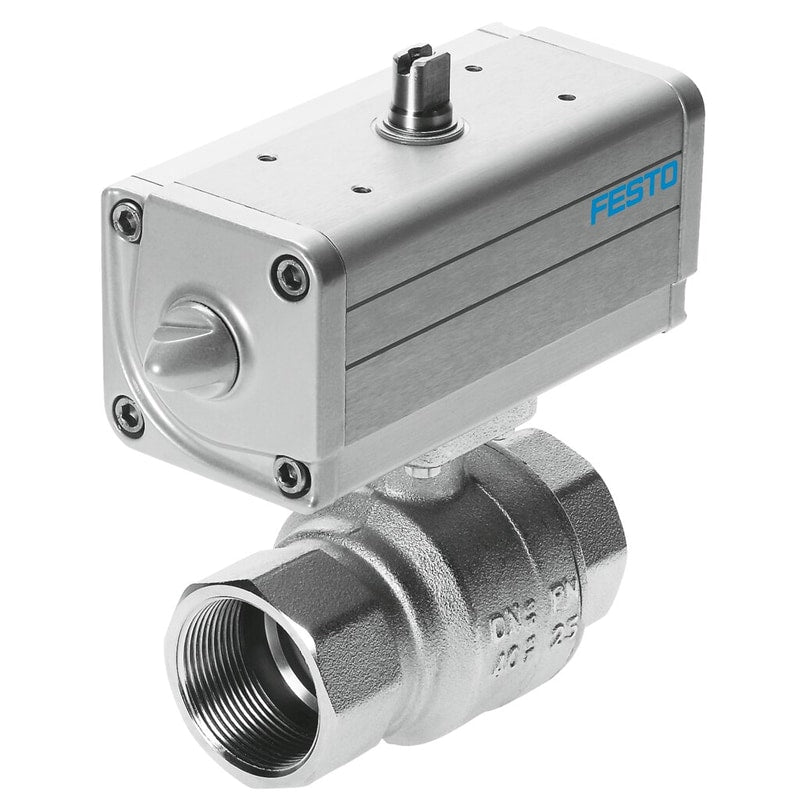

Ball valve actuator unit
VZPR-BPD-22-R1
540514
GTIN 4052568179298
Vendor Festo
- Structural design
- 2-way ball valve - Quarter turn actuator
- Fitting connection
- Rp1
- Operating pressure of actuator
- 1 bar - 8.4 bar
- Actuation type
- Electrical - Pneumatic
Regular price
$469.53
Unit price
VZPR-BPD-22-R1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZPR-BPD-22-R1
Regular price
$469.53
Unit price
VZPR-BPD-22-R1 is backordered and will ship as soon as it is back in stock.
ball valve actuator unit VZPR-BPD-22-R1 Comprising pneumatic DAPS quarter turn actuator, combined with a 2/2-way VAPB ball valve in brass version. Design structure=(* 2-way ball valve, * Swivel drive), Type of actuation=(* electrical, * pneumatic), Assembly position=Any, Mounting type=(* CNOMO, * with internal (female) thread), Process valve connection=Rp1
| Design structure | 2-way ball valveSwivel drive |
|---|---|
| Type of actuation | electricalpneumatic |
| Assembly position | Any |
| Mounting type | CNOMOwith internal (female) thread |
| Process valve connection | Rp1 |
| Switching position indicator | Knob direction = Flow direction |
| Nominal diameter DN | 25 |
| Operating pressure, ball valve drive | 1 ... 8.4 bar |
| Nominal pressure of process valve | 40 |
| Medium temperature | '-20 ... 150 °C |
| Ambient temperature | '-20 ... 80 °C |
| Materials note | Contains PWIS substances |
| Product weight | 1,800 g |
