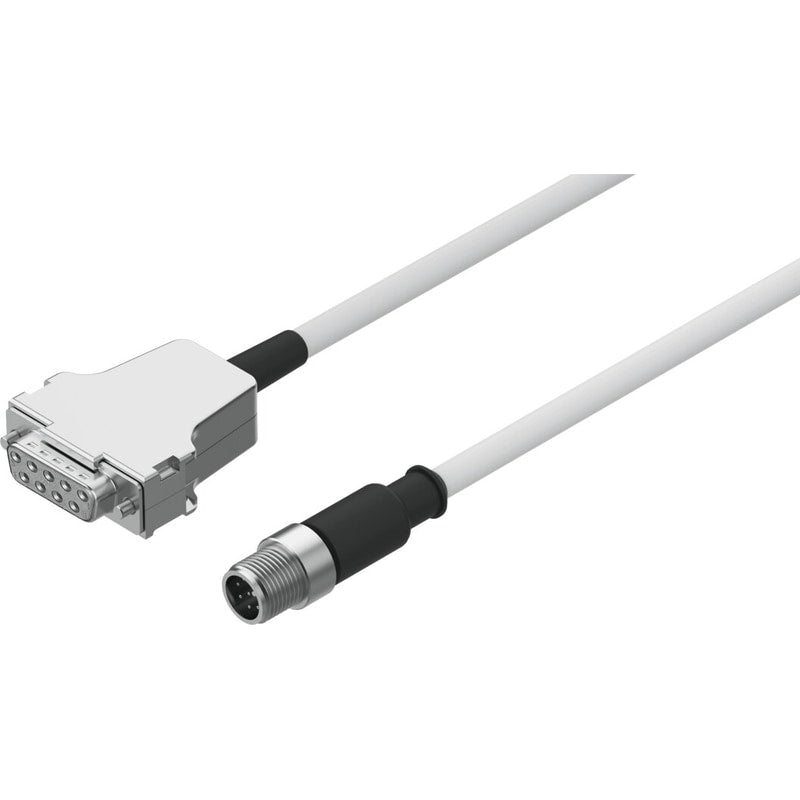

Fieldbus adapter
FBA-CO-SUB-9-M12
540324
GTIN 4052568090357
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- Sub-D
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Cable length
- 0.1 m
Regular price
$109.59
Unit price
FBA-CO-SUB-9-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FBA-CO-SUB-9-M12
Regular price
$109.59
Unit price
FBA-CO-SUB-9-M12 is backordered and will ship as soon as it is back in stock.
| Type code | FBA |
|---|---|
| Protocol | CANopenDeviceNet |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | Sub-D |
| Electrical connection 1, number of pins/wires | 9 |
| Electrical connection 1, occupied pins/wires | 6 |
| Electrical connection 1, type of mounting | 2x screw, 4-40 UNC-2A |
| Electrical connection for input 1, connection pattern | 995638 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Round |
| Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 2, number of pins/wires | 5 |
| Electrical connection 2, occupied pins/wires | 5 |
| Electrical connection 2, connection pattern | 995383 |
| Nominal operating voltage DC | 24 V |
| Cable length | 0.1 m |
| Cable diameter | 6.3 mm |
| Cable design | Shielded4 x 0.34 mm² |
| Degree of protection | IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -5 °C ... 50 °C |
| Note on materials | Contains paint-wetting impairment substances |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
