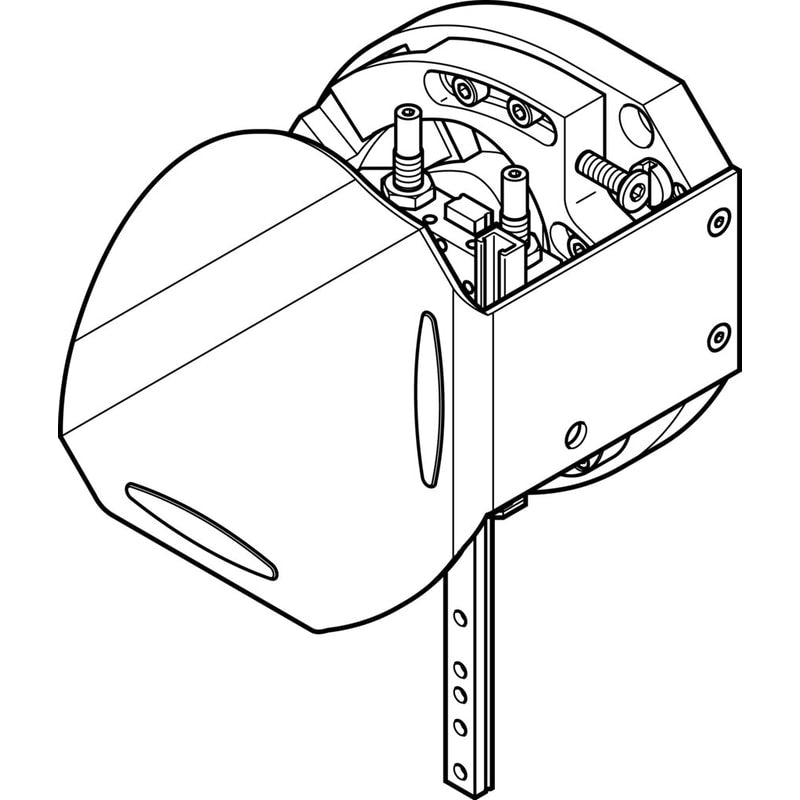

Handling module
HSW-12-AS-SD
540233
GTIN 4052568178826
Vendor Festo
- Size
- 12
- Z-stroke
- 80 mm - 100 mm
Regular price
$4,558.91
Unit price
HSW-12-AS-SD is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HSW-12-AS-SD
Regular price
$4,558.91
Unit price
HSW-12-AS-SD is backordered and will ship as soon as it is back in stock.
| Working stroke | 15 mm ... 25 mm |
|---|---|
| Size | 12 |
| Max. linear stroke at 90° swivel angle | 142/142 mm |
| Z-stroke | 80 mm ... 100 mm |
| Type code | HSW |
| Cushioning | Acoustic insulation via buffers |
| Mounting position | Any |
| Design | Actuator shaftLinear guide plus ball bearingPositively driven motion sequence |
| Position sensing | For proximity sensor |
| Repetition accuracy end positions | +/-0.02 mm |
| Ambient temperature | 0 °C ... 60 °C |
| Max. driving torque on actuator shaft | 1.25 Nm |
| Max. axial force at actuator shaft | 18 N |
| Max. torque Mx | 1.5 Nm |
| Max. torque My | 1.5 Nm |
| Max. torque Mz | 1.5 Nm |
| Max. payload | 1 kg |
| Max. radial force on actuator shaft | 45 N |
| Maximum process force in y direction | 35 N |
| Product weight | 3000 g |
| Type of mounting | Via through-hole and centering sleeve |
| Note on materials | Free of copper and PTFE |
| Stops material | High-alloy steel |
| Spring pressure piece material | High-alloy steel |
| Base plate material | Wrought aluminum alloyAnodized |
| Retaining bracket material | AnodizedWrought aluminum alloy |
| Cross guide material | Tempered steel |
| Swivel lever material | BurnishedCase-hardened steel |
| Link material | Case-hardened steelHardened |
| Sensor rail material | Wrought aluminum alloyAnodized |
| Fixed link material | Wrought aluminum alloyAnodized |
| Setting screw material | High-alloy steel |
