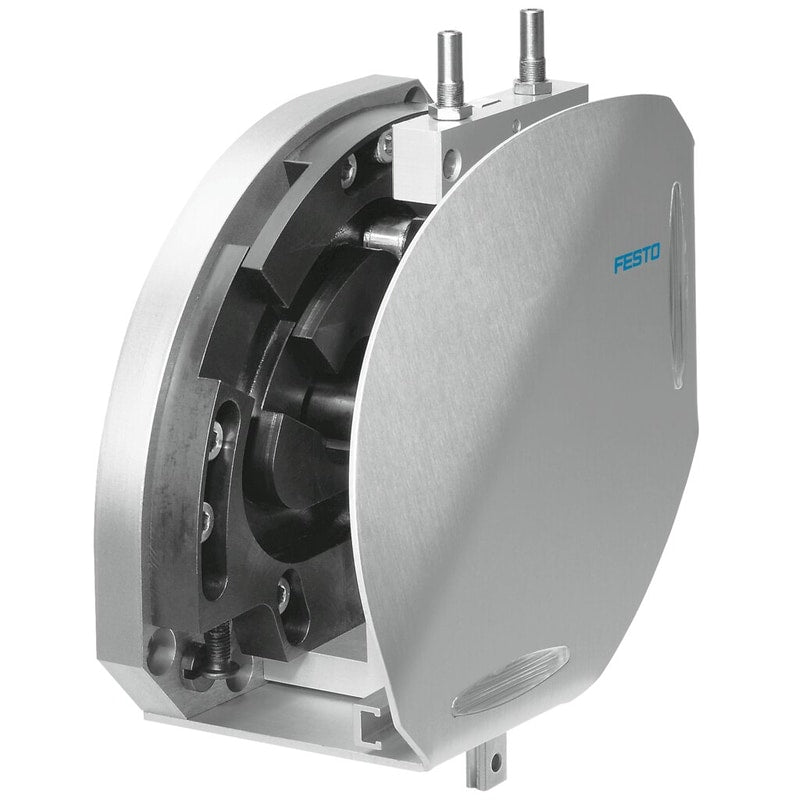

Handling module
HSW-12-AP-SD
540229
GTIN 4052568178802
Vendor Festo
- Size
- 12
- Z-stroke
- 80 mm - 100 mm
Regular price
$4,662.94
Unit price
HSW-12-AP-SD is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HSW-12-AP-SD
Regular price
$4,662.94
Unit price
HSW-12-AP-SD is backordered and will ship as soon as it is back in stock.
| Working stroke | 15 mm ... 25 mm |
|---|---|
| Size | 12 |
| Max. linear stroke at 90° swivel angle | 142/142 mm |
| Z-stroke | 80 mm ... 100 mm |
| Type code | HSW |
| Cushioning | Soft characteristic curvePneumatic shock absorber at both ends |
| Mounting position | Any |
| Design | Linear guide plus ball bearingPositively driven motion sequenceQuarter turn actuator |
| Position sensing | For proximity sensor |
| Operating pressure | 4 bar ... 8 bar |
| Minimum cycle time | 0.8 s |
| Repetition accuracy end positions | +/-0.02 mm |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Ambient temperature | 0 °C ... 60 °C |
| Max. torque Mx | 1.5 Nm |
| Max. torque My | 1.5 Nm |
| Max. torque Mz | 1.5 Nm |
| Max. payload | 1 kg |
| Maximum process force in y direction | 35 N |
| Theoretical force at 6 bar | 35 N |
| Product weight | 3040 g |
| Type of mounting | Via through-hole and centering sleeve |
| Note on materials | Free of copper and PTFE |
| Stops material | High-alloy steel |
| Cover material | Wrought aluminum alloyAnodized |
| Spring pressure piece material | High-alloy steel |
| Base plate material | AnodizedWrought aluminum alloy |
| Retaining bracket material | Wrought aluminum alloyAnodized |
| Cross guide material | Tempered steel |
| Swivel lever material | BurnishedCase-hardened steel |
| Link material | Case-hardened steelHardened |
| Sensor rail material | AnodizedWrought aluminum alloy |
| Fixed link material | Wrought aluminum alloyAnodized |
| Setting screw material | High-alloy steel |
