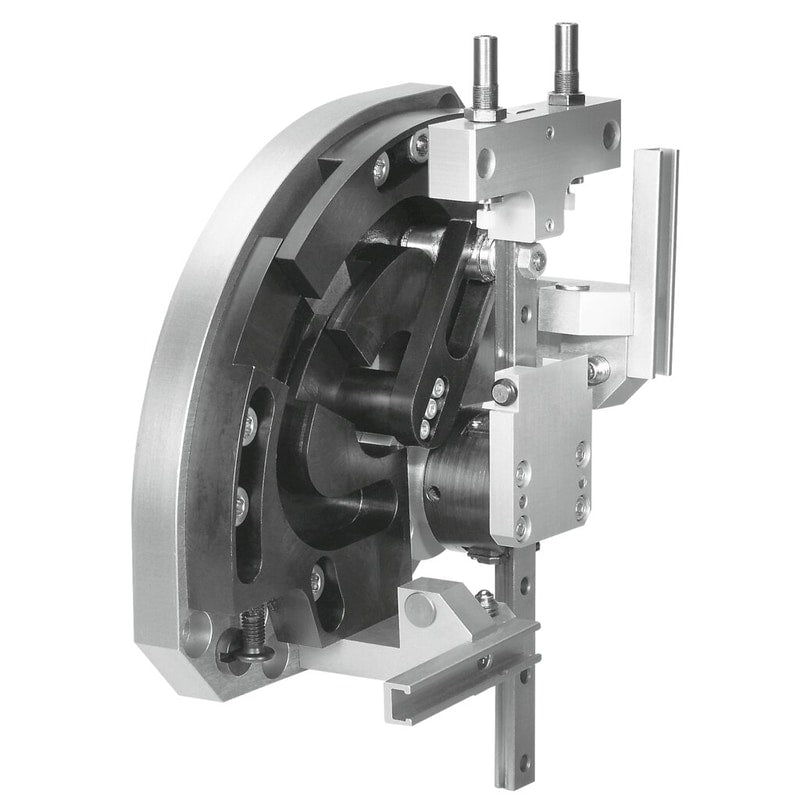

Handling module
HSW-12-AP
540228
GTIN 4052568178796
Vendor Festo
- Size
- 12
- Z-stroke
- 80 mm - 100 mm
Regular price
$4,508.55
Unit price
HSW-12-AP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HSW-12-AP
Regular price
$4,508.55
Unit price
HSW-12-AP is backordered and will ship as soon as it is back in stock.
| Working stroke | 15 mm ... 25 mm |
|---|---|
| Size | 12 |
| Max. linear stroke at 90° swivel angle | 142/142 mm |
| Z-stroke | 80 mm ... 100 mm |
| Type code | HSW |
| Cushioning | Pneumatic shock absorber at both endsSoft characteristic curve |
| Mounting position | Any |
| Design | Quarter turn actuatorPositively driven motion sequenceLinear guide plus ball bearing |
| Position sensing | For proximity sensor |
| Operating pressure | 4 bar ... 8 bar |
| Minimum cycle time | 0.8 s |
| Repetition accuracy end positions | +/-0.02 mm |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Ambient temperature | 0 °C ... 60 °C |
| Max. torque Mx | 1.5 Nm |
| Max. torque My | 1.5 Nm |
| Max. torque Mz | 1.5 Nm |
| Max. payload | 1 kg |
| Maximum process force in y direction | 35 N |
| Theoretical force at 6 bar | 35 N |
| Product weight | 2840 g |
| Type of mounting | Via through-hole and centering sleeve |
| Note on materials | Free of copper and PTFE |
| Stops material | High-alloy steel |
| Spring pressure piece material | High-alloy steel |
| Base plate material | AnodizedWrought aluminum alloy |
| Retaining bracket material | AnodizedWrought aluminum alloy |
| Cross guide material | Tempered steel |
| Swivel lever material | Case-hardened steelBurnished |
| Link material | HardenedCase-hardened steel |
| Sensor rail material | Wrought aluminum alloyAnodized |
| Fixed link material | AnodizedWrought aluminum alloy |
| Setting screw material | High-alloy steel |
