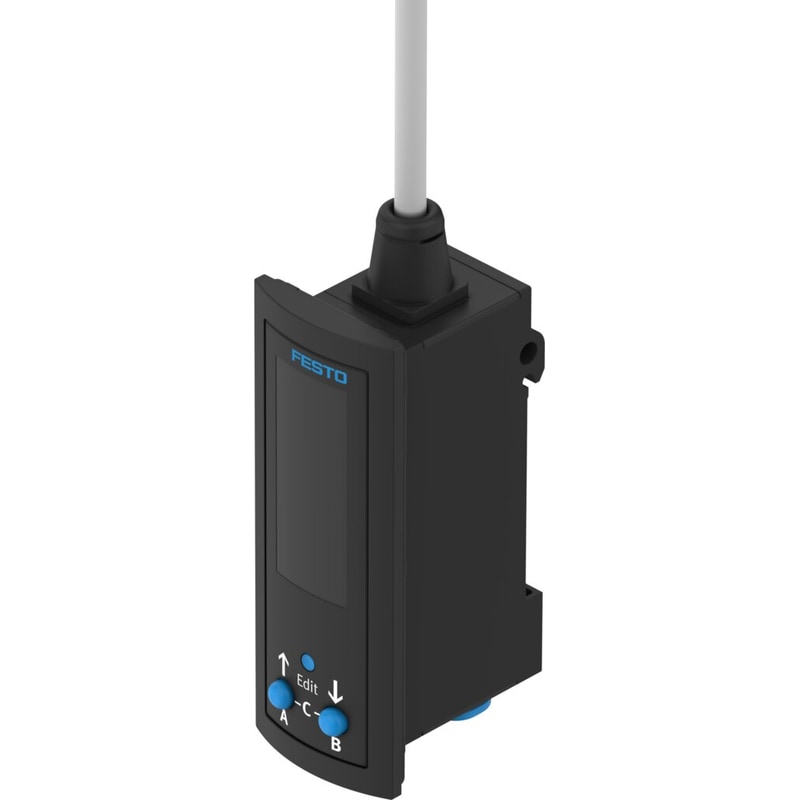

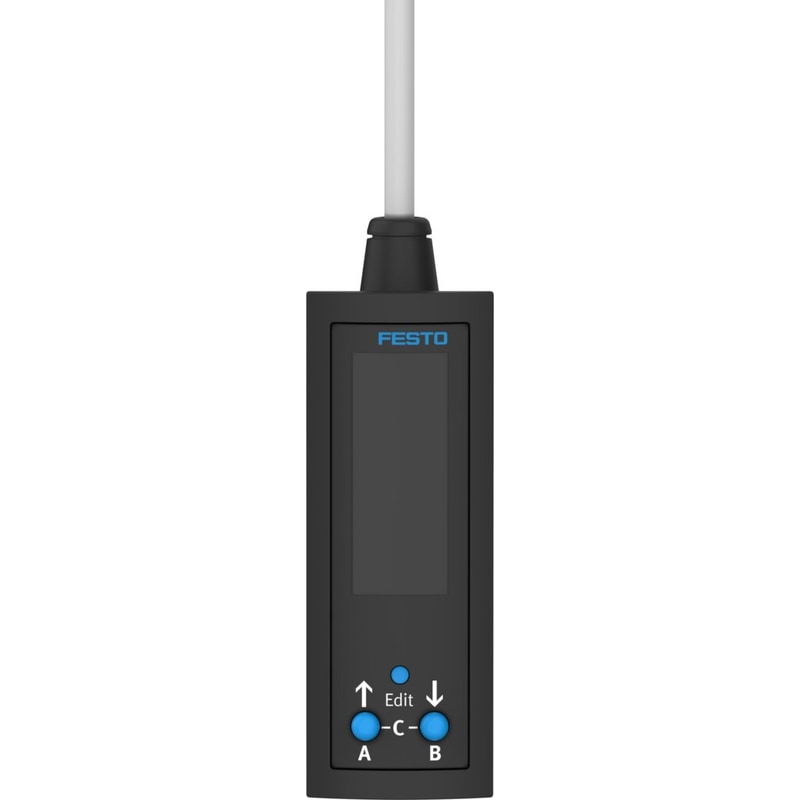

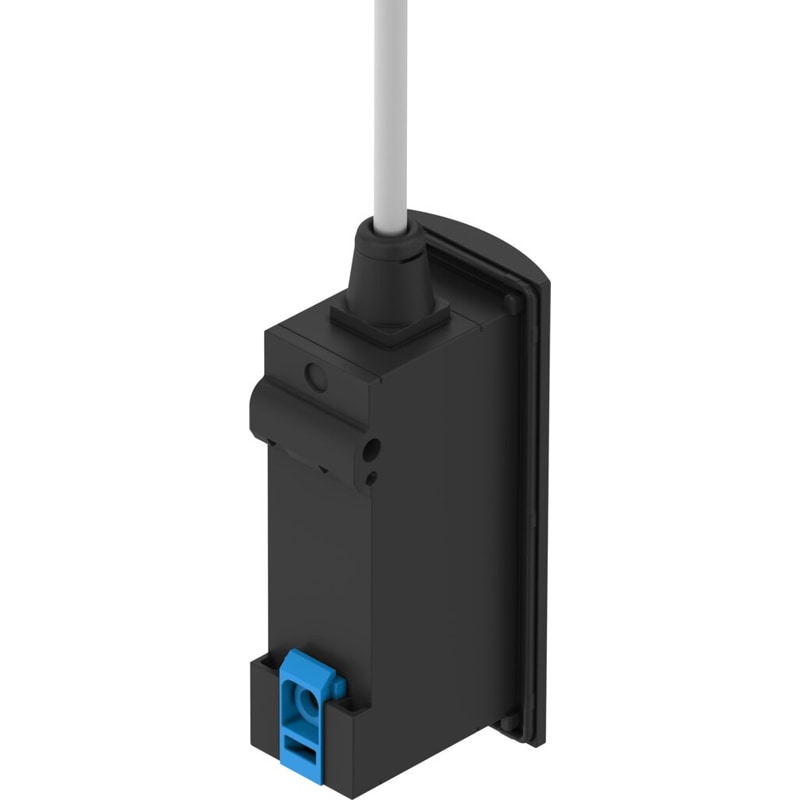

Pressure sensor
SDE3-D2Z-B-FQ4-2P-M8
540206
GTIN 4052568178673
Vendor Festo
- Pressure measuring range initial value
- 0 bar
- Pressure measuring range end value
- 2 bar
- Switching element function
- Switchable
- Pneumatic connection
- QS-4
Regular price
$338.56
Unit price
SDE3-D2Z-B-FQ4-2P-M8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SDE3-D2Z-B-FQ4-2P-M8
Regular price
$338.56
Unit price
SDE3-D2Z-B-FQ4-2P-M8 is backordered and will ship as soon as it is back in stock.
pressure sensor SDE3-D2Z-B-FQ4-2P-M8 With M8 plug version. Authorisation=RCM Mark, CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Free of copper and PTFE, * Conforms to RoHS), Measured variable=Differential pressure, Measurement method=Piezoresistive pressure sensor with display
| Authorisation | RCM Mark |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Measured variable | Differential pressure |
| Measurement method | Piezoresistive pressure sensor with display |
| Pressure measuring range, initial value | 0 bar |
| Pressure measuring range, final value | 2 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible |
| Medium temperature | 0 ... 50 °C |
| Ambient temperature | 0 ... 50 °C |
| Accuracy, FS | 2 %FS |
| Switch output | 2xPNP |
