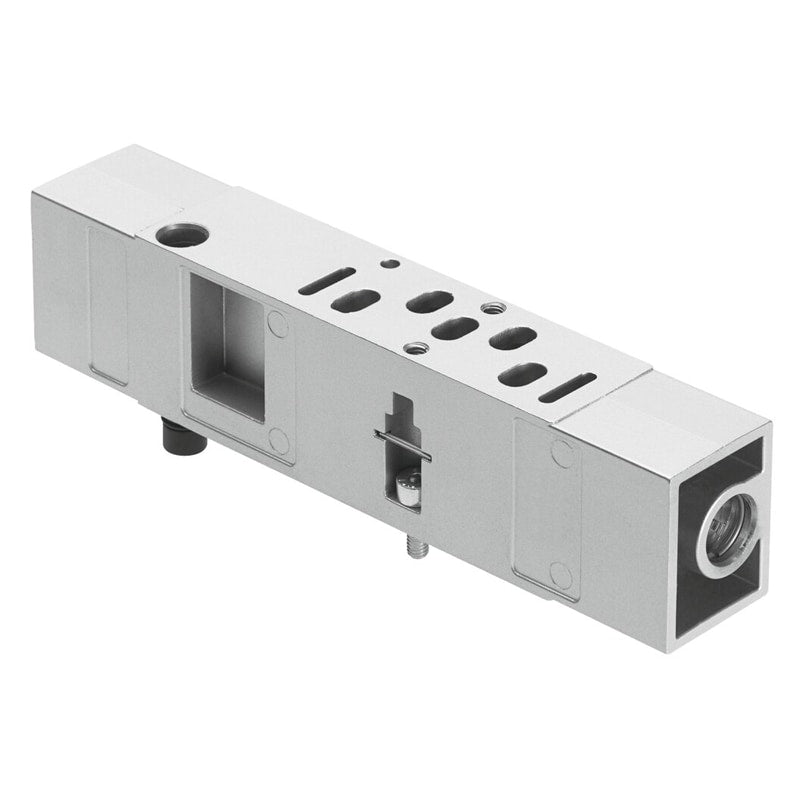

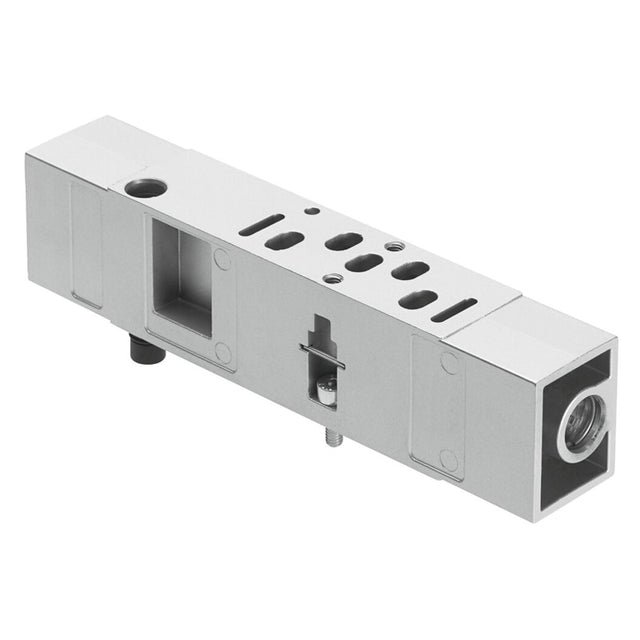

Throttle plate
VABF-S4-1-F1B1-C
540175
GTIN 4052568090289
Vendor Festo
Regular price
$127.76
Unit price
VABF-S4-1-F1B1-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABF-S4-1-F1B1-C
Regular price
$127.76
Unit price
VABF-S4-1-F1B1-C is backordered and will ship as soon as it is back in stock.
flow control plate VABF-S4-1-F1B1-C For valve terminals VTSA and VTSA-F, standard port pattern to 15407-2, for mounting between manifold sub-base and valve, for restricting exhaust air ports 3 and 5 on the valve. Width=26 mm, Based on the standard=ISO 15407-2, Assembly position=Any, Operating pressure=-0,9 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4]
| Width | 26 mm |
|---|---|
| Based on the standard | ISO 15407-2 |
| Assembly position | Any |
| Operating pressure | '-0.9 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP65NEMA 4 |
| Pilot medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 320 g |
| Vertical stacking type of mounting | on manifold blockon individual sub-base |
