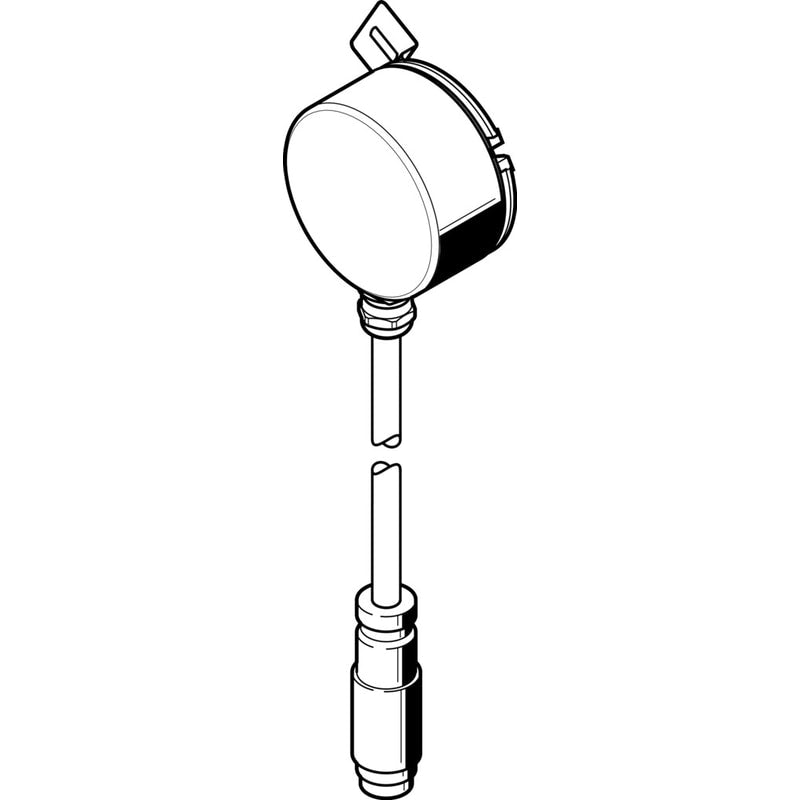

Encoder
TU-30/80-EC-L/R
540140
GTIN 4052568259761
Vendor Festo
Regular price
$1,135.28
Unit price
TU-30/80-EC-L/R is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
TU-30/80-EC-L/R
Regular price
$1,135.28
Unit price
TU-30/80-EC-L/R is backordered and will ship as soon as it is back in stock.
| Type code | TU |
|---|---|
| Measuring principle of linear potentiometer | Incremental |
| Size | 58 mm |
| Shaft diameter | 6 mm |
| Design | with hollow shaft open at one end |
| Type of mounting | With mounting bracket |
| Shaft type of mounting | With lock ring at front |
| Max. rotational speed | 6000 1/min |
| Product weight | 390 g |
| DC operating voltage range | 4.5 V ... 5.5 V |
| Nominal operating voltage DC | 5 V |
| Max. current consumption | 40 mA |
| Max. pulse frequency | 300 kHz |
| Number of lines | 2500 |
| Signal shape | Rectangular pulse, duty cycle 1:1 |
| Encoder interface output, characteristics | RS422 |
| Ambient temperature | -10 °C ... 70 °C |
| Storage temperature | -25 °C ... 85 °C |
| Degree of protection | IP65 |
| Note on degree of protection | IP64 for shaft input |
| Protection class | III |
| Contamination level | 2 |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Connection outlet orientation | Radial |
| Encoder interface, connection type | Cable with plug |
| Encoder interface, cable outlet | Straight |
| Encoder interface, connection technology | M16x0.75 |
| Encoder interface, number of pins/wires | 8 |
| Encoder interface, plug pattern | 995715 |
| Cable length | 2 m |
| Cable diameter | 6 mm |
| Bending radius, fixed cable installation | ≥ 40 mm |
| Bending radius, flexible cable installation | ≥ 100 mm |
| Material of cable sheath | PVC |
| Color cable sheath | White |
| Housing material | Wrought aluminum alloy |
| Material of plug housing | Nickel-platedBrass |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
