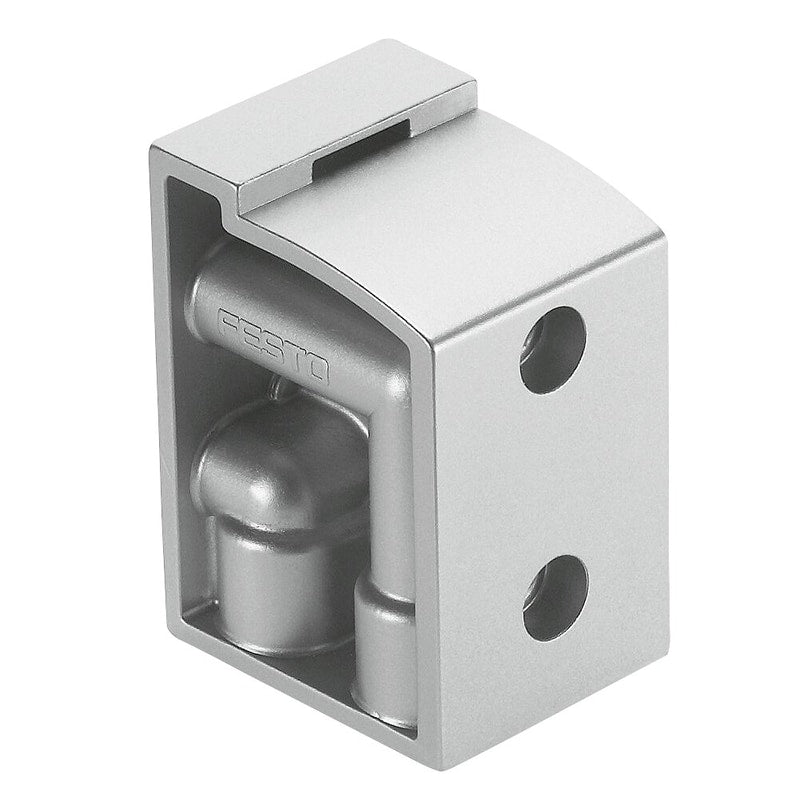

Angled connection plate
VABF-S4-2-A2G2-G18
539719
GTIN 4052568090050
Vendor Festo
Regular price
$44.60
Unit price
VABF-S4-2-A2G2-G18 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABF-S4-2-A2G2-G18
Regular price
$44.60
Unit price
VABF-S4-2-A2G2-G18 is backordered and will ship as soon as it is back in stock.
90° connection plate VABF-S4-2-A2G2-G18 For valve terminals VTSA and VTSA-F, working lines 2 and 4, at a 90° angle. Width=18 mm, Based on the standard=ISO 15407-2, Assembly position=Any, Operating pressure=-0,9 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4]
| Width | 18 mm |
|---|---|
| Based on the standard | ISO 15407-2 |
| Assembly position | Any |
| Operating pressure | '-0.9 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP65NEMA 4 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 155 g |
| Mounting type | with through hole |
| Material housing | Aluminium die cast |
