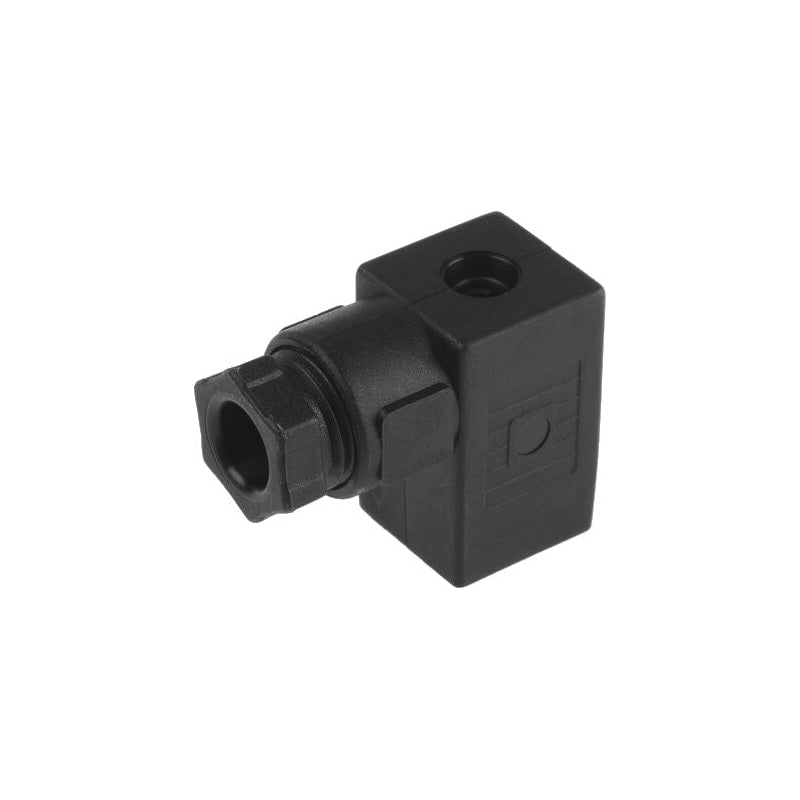

Plug socket
MSSD-E-M12
539711
GTIN 4052568050054
Vendor Festo
- Connection cross section
- 0.75 mm²
- Degree of protection
- IP65 - as per IEC 60529
Regular price
$7.32
Unit price
MSSD-E-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSSD-E-M12
Regular price
$7.32
Unit price
MSSD-E-M12 is backordered and will ship as soon as it is back in stock.
| Type code | MSSD-E |
|---|---|
| Contact durability | 50 |
| Type of mounting | On air solenoid valve with M3 central screw |
| Product weight | 11 g |
| Electrical connection 1 | Angled socket, rectangular design, 3-pin, form C |
| Electrical connection 2 | Screw terminal |
| DC operating voltage range | 0 V ... 300 V |
| Operating voltage range AC | 0 V ... 250 V |
| Current rating at 40°C | 0.25 |
| Approved cable diameter | 4 mm ... 6 mm |
| Connection cross section | 0.75 mm² |
| Degree of protection | IP65as per IEC 60529 |
| Ambient temperature | -20 °C ... 115 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | PA-reinforced |
| Housing colour | Black |
| Seals material | HNBR |
| Mounting position | Any |
| Cable fitting | M12 |
