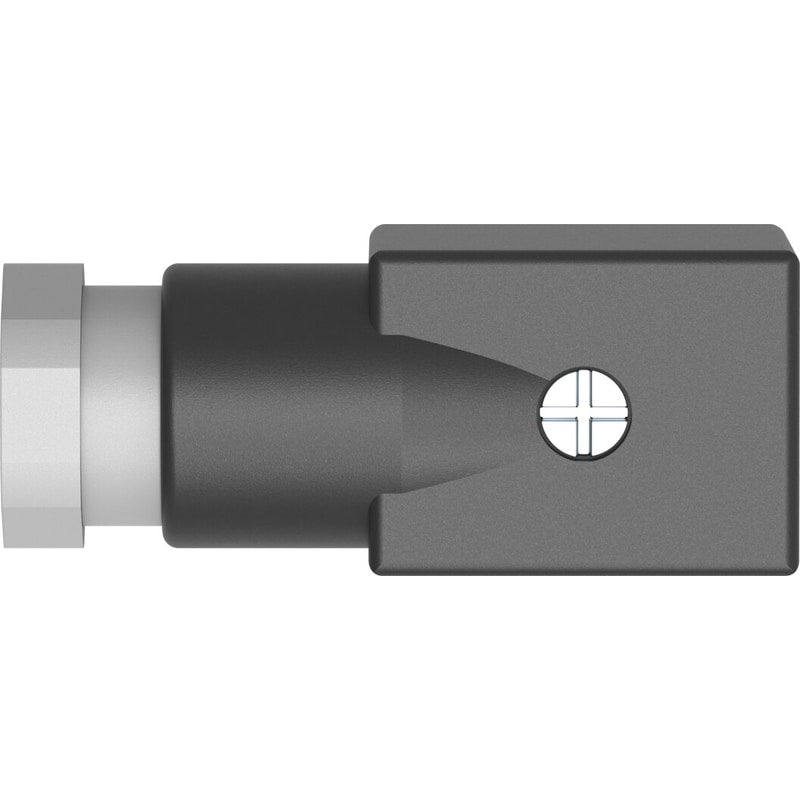

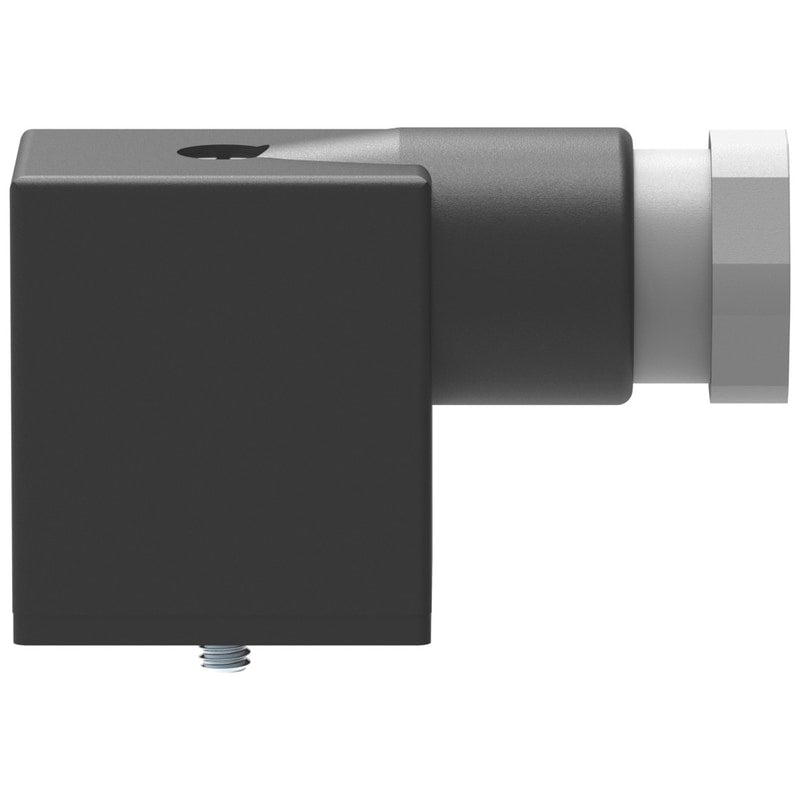

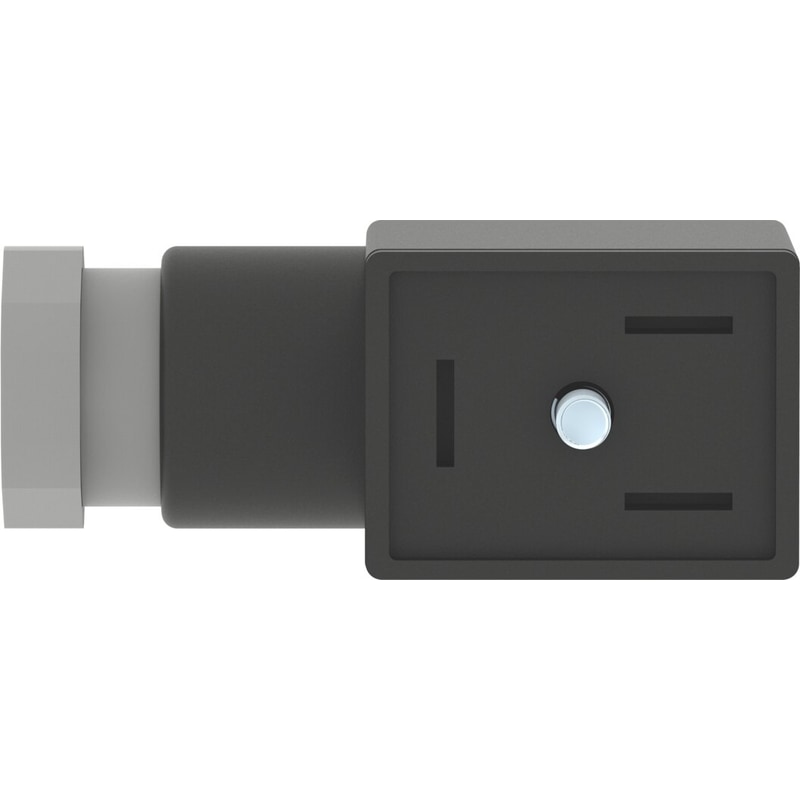

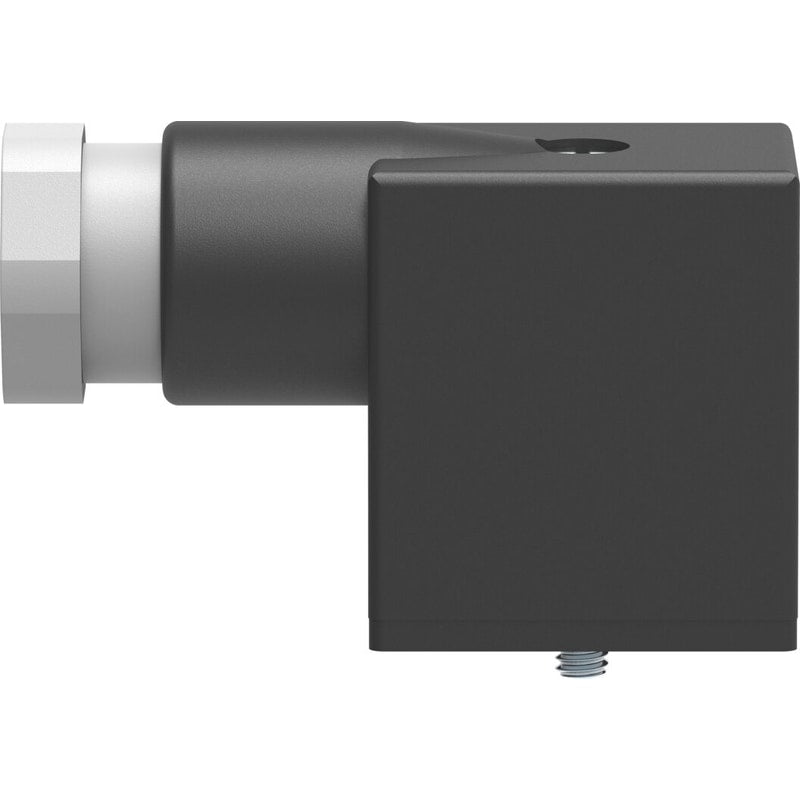

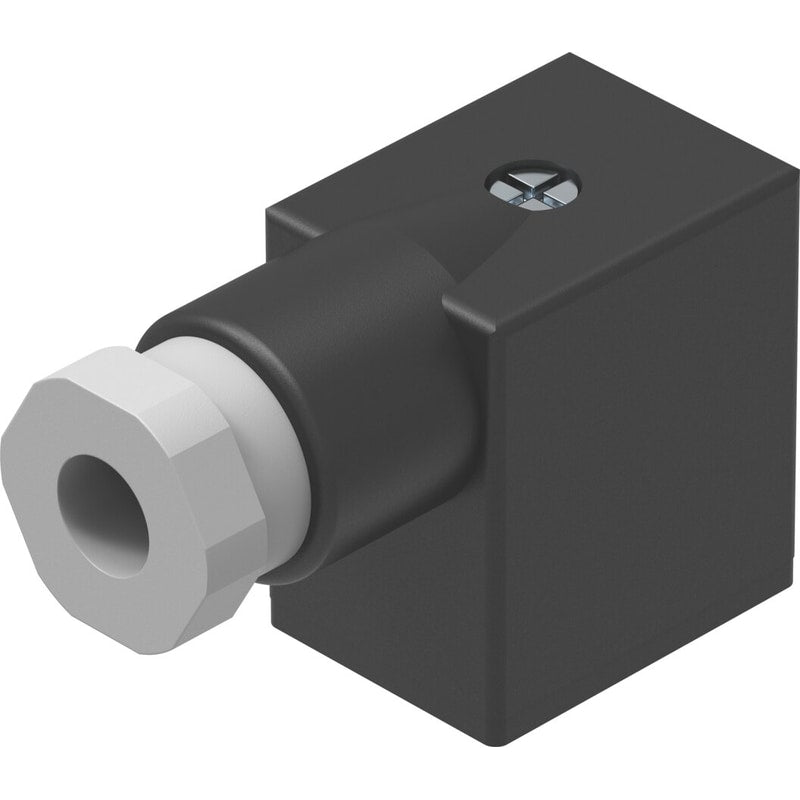

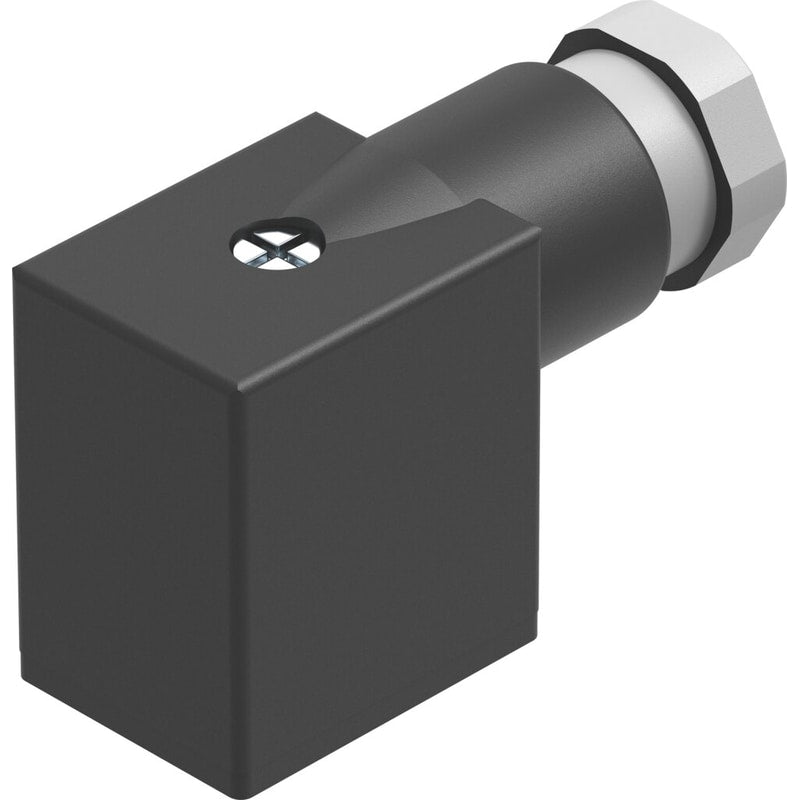

Plug socket
MSSD-F-M16
539710
GTIN 4052568050047
Vendor Festo
- Degree of protection
- IP65
Regular price
$5.56
Unit price
MSSD-F-M16 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSSD-F-M16
Regular price
$5.56
Unit price
MSSD-F-M16 is backordered and will ship as soon as it is back in stock.
| Cable outlet | Angled |
|---|---|
| Note on cable outlet | Can be rotated through 180° |
| Type code | MSSD |
| Contact durability | 50 |
| Product weight | 35 g |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, connection technology | Connection diagram form B as per industrial standard, 11 mm |
| Electrical connection 1, number of pins/wires | 3 |
| Electrical connection 1, type of mounting | On air solenoid valve with M3 central screw |
| Electrical connection for input 1, connection pattern | 995619 |
| Electrical connection 2, connection technology | Screw terminal |
| DC operating voltage range | 0 V ... 250 V |
| Operating voltage range AC | 0 V ... 250 V |
| Current rating at 40°C | 0.25 |
| Surge resistance | 2 kV |
| Protective earth connection | Available |
| Cable diameter | 6 mm ... 8 mm |
| Nominal conductor cross section | ≤ 0.75 mm² |
| Degree of protection | IP65 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -20 °C ... 115 °C |
| Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | PA-reinforced |
| Housing colour | Black |
| Seals material | HNBR |
| Cable fitting | M16x1.5 |
